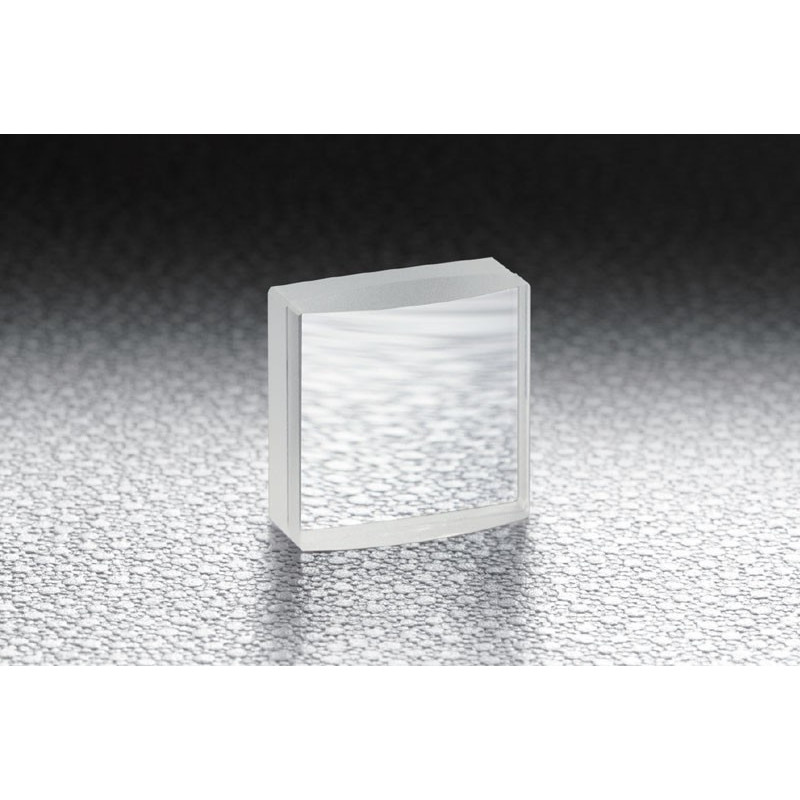

Achromatic Cylindrical Lenses

search

Reference number: OSE-CDL-1515-25PM

A cylindrical achromat is a single component made by joining two cylindrical surface lenses with different refractive indices.

Focal length in mm
Focal length in mm
alt

Need more info?
Contact our expert.

Our Team

Description

  • Material: N-SF5, BK7
  • Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 56.3nm
  • Coating: Antireflection coating
  • Bonding of lenses: Ultraviolet cure adhesive
  • Laser Damage Threshold [J/cm²] : 0.3
  • Surface Quality (Scratch-Dig): 60-40
  • Clear aperture: Circle that internally connected to 90% of the side length
