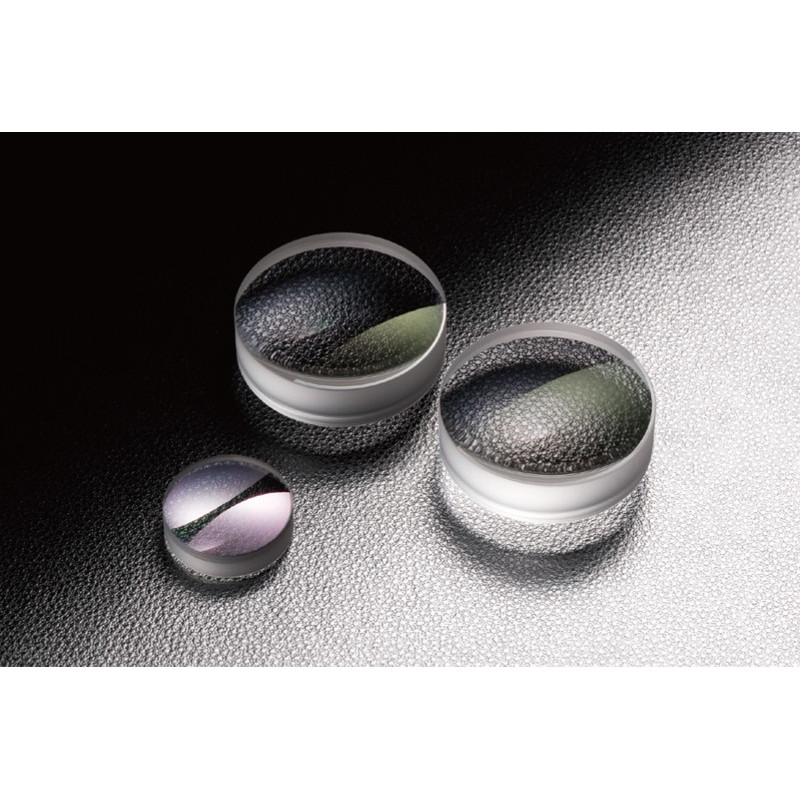

Achromatic Doublets

Reference number: OSE-DLB-10-20PM

Acromatic doublets are cemented achromats consisting of two different lenses: Positive low dispersion crown glass and negative high dispersion flint glass.

Diameter in mm

Focal length in mm

Need more info?
Contact our expert.

Our Team

Description

Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Those products may also interest you

High resolution microscope OptoNano 200

OSE-PT-ON200

€0.00
F-Theta Lenses

OSE-f-Theta

€4,284.40
F-Theta Lenses for YAG

OSE-f-Theta-YAG

€685.50
F-Theta Lenses for CO2 Laser

OSE-f-Theta-10600

€1,037.10
Tube Lens: Wavelengths from fundamental to 3rd...

OSE-TL-Y3

€857.10

Diameter D [mm]: 10
Focal length f [mm]: 20
Center Thickness tc [mm]: 6.7
Edge Thickness te [mm]: 5.1
Back focal length fb [mm]: 16.6
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-10-20PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 10
Focal length f [mm]: 25
Center Thickness tc [mm]: 6.1
Edge Thickness te [mm]: 4.9
Back focal length fb [mm]: 22.1
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-10-25PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 10
Focal length f [mm]: 30.1
Center Thickness tc [mm]: 5.7
Edge Thickness te [mm]: 4.7
Back focal length fb [mm]: 27.4
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-10-30PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 10
Focal length f [mm]: 40
Center Thickness tc [mm]: 5.3
Edge Thickness te [mm]: 4.6
Back focal length fb [mm]: 37.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-10-40PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 10
Focal length f [mm]: 50
Center Thickness tc [mm]: 5
Edge Thickness te [mm]: 4.4
Back focal length fb [mm]: 47.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-10-50PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 10
Focal length f [mm]: 60.1
Center Thickness tc [mm]: 4.9
Edge Thickness te [mm]: 4.4
Back focal length fb [mm]: 57.6
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-10-60PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 10
Focal length f [mm]: 69.9
Center Thickness tc [mm]: 4.7
Edge Thickness te [mm]: 4.3
Back focal length fb [mm]: 67.3
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-10-70PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 10
Focal length f [mm]: 80.1
Center Thickness tc [mm]: 4.6
Edge Thickness te [mm]: 4.2
Back focal length fb [mm]: 77.8
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-10-80PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 10
Focal length f [mm]: 100.5
Center Thickness tc [mm]: 4.5
Edge Thickness te [mm]: 4.2
Back focal length fb [mm]: 98.1
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-10-100PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 15
Focal length f [mm]: 25.2
Center Thickness tc [mm]: 8.8
Edge Thickness te [mm]: 6
Back focal length fb [mm]: 20.7
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-15-25PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 15
Focal length f [mm]: 30.1
Center Thickness tc [mm]: 8
Edge Thickness te [mm]: 5.7
Back focal length fb [mm]: 26
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-15-30PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 15
Focal length f [mm]: 40.1
Center Thickness tc [mm]: 6.9
Edge Thickness te [mm]: 5.2
Back focal length fb [mm]: 36.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-15-40PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 15
Focal length f [mm]: 50.1
Center Thickness tc [mm]: 6.3
Edge Thickness te [mm]: 5
Back focal length fb [mm]: 47.1
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-15-50PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 15
Focal length f [mm]: 59.9
Center Thickness tc [mm]: 5.9
Edge Thickness te [mm]: 4.8
Back focal length fb [mm]: 57
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-15-60PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 15
Focal length f [mm]: 70.2
Center Thickness tc [mm]: 5.7
Edge Thickness te [mm]: 4.8
Back focal length fb [mm]: 67.4
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-15-70PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 15
Focal length f [mm]: 79.9
Center Thickness tc [mm]: 5.5
Edge Thickness te [mm]: 4.7
Back focal length fb [mm]: 77.1
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-15-80PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 15
Focal length f [mm]: 100
Center Thickness tc [mm]: 5.2
Edge Thickness te [mm]: 4.5
Back focal length fb [mm]: 97.3
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-15-100PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 20
Focal length f [mm]: 30.6
Center Thickness tc [mm]: 10.9
Edge Thickness te [mm]: 6.8
Back focal length fb [mm]: 24.9
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-20-30PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 20
Focal length f [mm]: 40.1
Center Thickness tc [mm]: 9.2
Edge Thickness te [mm]: 6.2
Back focal length fb [mm]: 35.3
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-20-40PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 20
Focal length f [mm]: 50.2
Center Thickness tc [mm]: 8.1
Edge Thickness te [mm]: 5.7
Back focal length fb [mm]: 46
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-20-50PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 20
Focal length f [mm]: 60.2
Center Thickness tc [mm]: 7.4
Edge Thickness te [mm]: 5.4
Back focal length fb [mm]: 56.6
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-20-60PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 20
Focal length f [mm]: 70.1
Center Thickness tc [mm]: 6.9
Edge Thickness te [mm]: 5.2
Back focal length fb [mm]: 66.7
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-20-70PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 20
Focal length f [mm]: 79.9
Center Thickness tc [mm]: 6.6
Edge Thickness te [mm]: 5.1
Back focal length fb [mm]: 76.6
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-20-80PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 20
Focal length f [mm]: 99.5
Center Thickness tc [mm]: 6.1
Edge Thickness te [mm]: 4.9
Back focal length fb [mm]: 96.4
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-20-100PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 20
Focal length f [mm]: 120.3
Center Thickness tc [mm]: 5.7
Edge Thickness te [mm]: 4.7
Back focal length fb [mm]: 117.3
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-20-120PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 20
Focal length f [mm]: 149.8
Center Thickness tc [mm]: 5.4
Edge Thickness te [mm]: 4.6
Back focal length fb [mm]: 147
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-20-150PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 20
Focal length f [mm]: 170
Center Thickness tc [mm]: 5.3
Edge Thickness te [mm]: 4.6
Back focal length fb [mm]: 167.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-20-170PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 20
Focal length f [mm]: 200.1
Center Thickness tc [mm]: 5.1
Edge Thickness te [mm]: 4.5
Back focal length fb [mm]: 197.3
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-20-200PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 20
Focal length f [mm]: 220
Center Thickness tc [mm]: 5
Edge Thickness te [mm]: 4.5
Back focal length fb [mm]: 216.9
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-20-220PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 20
Focal length f [mm]: 250
Center Thickness tc [mm]: 4.9
Edge Thickness te [mm]: 4.4
Back focal length fb [mm]: 247
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-20-250PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 20
Focal length f [mm]: 300
Center Thickness tc [mm]: 4.7
Edge Thickness te [mm]: 4.3
Back focal length fb [mm]: 297.1
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-20-300PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25
Focal length f [mm]: 40.9
Center Thickness tc [mm]: 12.5
Edge Thickness te [mm]: 7.7
Back focal length fb [mm]: 34.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25-40PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25
Focal length f [mm]: 50.1
Center Thickness tc [mm]: 10.9
Edge Thickness te [mm]: 7.1
Back focal length fb [mm]: 44.9
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25-50PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25
Focal length f [mm]: 60.1
Center Thickness tc [mm]: 9.8
Edge Thickness te [mm]: 6.7
Back focal length fb [mm]: 55.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25-60PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25
Focal length f [mm]: 69.9
Center Thickness tc [mm]: 9
Edge Thickness te [mm]: 6.3
Back focal length fb [mm]: 65.3
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25-70PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25
Focal length f [mm]: 80
Center Thickness tc [mm]: 8.5
Edge Thickness te [mm]: 6.2
Back focal length fb [mm]: 75.9
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25-80PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25
Focal length f [mm]: 100.2
Center Thickness tc [mm]: 7.7
Edge Thickness te [mm]: 5.9
Back focal length fb [mm]: 96.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25-100PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25
Focal length f [mm]: 119.8
Center Thickness tc [mm]: 7.2
Edge Thickness te [mm]: 5.6
Back focal length fb [mm]: 116.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25-120PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25
Focal length f [mm]: 149.6
Center Thickness tc [mm]: 6.7
Edge Thickness te [mm]: 5.5
Back focal length fb [mm]: 146.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25-150PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25
Focal length f [mm]: 170.4
Center Thickness tc [mm]: 6.4
Edge Thickness te [mm]: 5.3
Back focal length fb [mm]: 167.1
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25-170PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25
Focal length f [mm]: 200.1
Center Thickness tc [mm]: 6.1
Edge Thickness te [mm]: 5.2
Back focal length fb [mm]: 197
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25-200PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25
Focal length f [mm]: 222
Center Thickness tc [mm]: 6
Edge Thickness te [mm]: 5.2
Back focal length fb [mm]: 218.9
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25-220PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25
Focal length f [mm]: 250.8
Center Thickness tc [mm]: 5.8
Edge Thickness te [mm]: 5.1
Back focal length fb [mm]: 247.7
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25-250PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25
Focal length f [mm]: 300
Center Thickness tc [mm]: 5.6
Edge Thickness te [mm]: 5
Back focal length fb [mm]: 296.6
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25-300PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 50.3
Center Thickness tc [mm]: 14.1
Edge Thickness te [mm]: 8.6
Back focal length fb [mm]: 43.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-50PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 60.3
Center Thickness tc [mm]: 12.6
Edge Thickness te [mm]: 8.1
Back focal length fb [mm]: 53.9
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-60PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 70.8
Center Thickness tc [mm]: 11.5
Edge Thickness te [mm]: 7.7
Back focal length fb [mm]: 65
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-70PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 80.3
Center Thickness tc [mm]: 10.7
Edge Thickness te [mm]: 7.4
Back focal length fb [mm]: 75
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-80PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 100.7
Center Thickness tc [mm]: 9.5
Edge Thickness te [mm]: 6.8
Back focal length fb [mm]: 96
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-100PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 120.1
Center Thickness tc [mm]: 8.8
Edge Thickness te [mm]: 6.6
Back focal length fb [mm]: 115.7
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-120PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 150
Center Thickness tc [mm]: 8.1
Edge Thickness te [mm]: 6.3
Back focal length fb [mm]: 146
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-150PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 169.9
Center Thickness tc [mm]: 7.7
Edge Thickness te [mm]: 6.1
Back focal length fb [mm]: 166
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-170PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 200.2
Center Thickness tc [mm]: 7.3
Edge Thickness te [mm]: 6
Back focal length fb [mm]: 196.4
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-200PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 220.2
Center Thickness tc [mm]: 7.1
Edge Thickness te [mm]: 5.9
Back focal length fb [mm]: 216.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-220PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 249.7
Center Thickness tc [mm]: 6.9
Edge Thickness te [mm]: 5.8
Back focal length fb [mm]: 246.1
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-250PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 300.4
Center Thickness tc [mm]: 6.6
Edge Thickness te [mm]: 5.7
Back focal length fb [mm]: 296.9
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-300PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 350
Center Thickness tc [mm]: 6.4
Edge Thickness te [mm]: 5.6
Back focal length fb [mm]: 346.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-350PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 400
Center Thickness tc [mm]: 6.2
Edge Thickness te [mm]: 5.5
Back focal length fb [mm]: 396.3
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-400PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 450
Center Thickness tc [mm]: 6.1
Edge Thickness te [mm]: 5.5
Back focal length fb [mm]: 446.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-450PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 30
Focal length f [mm]: 500
Center Thickness tc [mm]: 6
Edge Thickness te [mm]: 5.5
Back focal length fb [mm]: 496.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-30-500PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 40
Focal length f [mm]: 60.2
Center Thickness tc [mm]: 19.3
Edge Thickness te [mm]: 11
Back focal length fb [mm]: 50.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-40-60PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 40
Focal length f [mm]: 70.3
Center Thickness tc [mm]: 17.2
Edge Thickness te [mm]: 10.2
Back focal length fb [mm]: 61.7
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-40-70PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 40
Focal length f [mm]: 80.2
Center Thickness tc [mm]: 15.8
Edge Thickness te [mm]: 9.7
Back focal length fb [mm]: 71.8
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-40-80PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 40
Focal length f [mm]: 99.9
Center Thickness tc [mm]: 13.7
Edge Thickness te [mm]: 8.9
Back focal length fb [mm]: 92.8
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-40-100PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 40
Focal length f [mm]: 120
Center Thickness tc [mm]: 12.3
Edge Thickness te [mm]: 8.3
Back focal length fb [mm]: 113.7
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-40-120PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 40
Focal length f [mm]: 150.1
Center Thickness tc [mm]: 10.9
Edge Thickness te [mm]: 7.7
Back focal length fb [mm]: 144.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-40-150PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 40
Focal length f [mm]: 169.7
Center Thickness tc [mm]: 10.3
Edge Thickness te [mm]: 7.5
Back focal length fb [mm]: 164.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-40-170PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 40
Focal length f [mm]: 199.7
Center Thickness tc [mm]: 9.6
Edge Thickness te [mm]: 7.2
Back focal length fb [mm]: 194.8
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-40-200PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 40
Focal length f [mm]: 220.7
Center Thickness tc [mm]: 9.2
Edge Thickness te [mm]: 7
Back focal length fb [mm]: 216
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-40-220PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 40
Focal length f [mm]: 249.1
Center Thickness tc [mm]: 8.8
Edge Thickness te [mm]: 6.9
Back focal length fb [mm]: 244.6
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-40-250PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 40
Focal length f [mm]: 300.5
Center Thickness tc [mm]: 8.3
Edge Thickness te [mm]: 6.7
Back focal length fb [mm]: 296.1
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-40-300PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 40
Focal length f [mm]: 349.9
Center Thickness tc [mm]: 7.9
Edge Thickness te [mm]: 6.5
Back focal length fb [mm]: 345.8
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-40-350PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 40
Focal length f [mm]: 399.7
Center Thickness tc [mm]: 7.6
Edge Thickness te [mm]: 6.4
Back focal length fb [mm]: 395.7
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-40-400PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 40
Focal length f [mm]: 450
Center Thickness tc [mm]: 7.4
Edge Thickness te [mm]: 6.3
Back focal length fb [mm]: 445.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-40-450PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 40
Focal length f [mm]: 500
Center Thickness tc [mm]: 7.2
Edge Thickness te [mm]: 6.3
Back focal length fb [mm]: 495.6
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-40-500PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 81
Center Thickness tc [mm]: 22.9
Edge Thickness te [mm]: 13.4
Back focal length fb [mm]: 69.1
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-80PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 100.5
Center Thickness tc [mm]: 19.9
Edge Thickness te [mm]: 12.3
Back focal length fb [mm]: 90
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-100PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 120.2
Center Thickness tc [mm]: 17.7
Edge Thickness te [mm]: 11.4
Back focal length fb [mm]: 111
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-120PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 150.7
Center Thickness tc [mm]: 15.5
Edge Thickness te [mm]: 10.5
Back focal length fb [mm]: 142.8
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-150PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 169.8
Center Thickness tc [mm]: 14.5
Edge Thickness te [mm]: 10.1
Back focal length fb [mm]: 162.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-170PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 200.1
Center Thickness tc [mm]: 13.3
Edge Thickness te [mm]: 9.6
Back focal length fb [mm]: 193.3
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-200PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 220.7
Center Thickness tc [mm]: 12.7
Edge Thickness te [mm]: 9.3
Back focal length fb [mm]: 214.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-220PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 249.4
Center Thickness tc [mm]: 12.1
Edge Thickness te [mm]: 9.1
Back focal length fb [mm]: 243.4
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-250PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 299.5
Center Thickness tc [mm]: 11.2
Edge Thickness te [mm]: 8.7
Back focal length fb [mm]: 293.7
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-300PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 350.2
Center Thickness tc [mm]: 10.7
Edge Thickness te [mm]: 8.6
Back focal length fb [mm]: 344.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-350PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 400
Center Thickness tc [mm]: 10.2
Edge Thickness te [mm]: 8.3
Back focal length fb [mm]: 394.7
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-400PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 451.5
Center Thickness tc [mm]: 9.9
Edge Thickness te [mm]: 8.3
Back focal length fb [mm]: 446.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-450PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 500.3
Center Thickness tc [mm]: 9.6
Edge Thickness te [mm]: 8.1
Back focal length fb [mm]: 495.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-500PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 599.9
Center Thickness tc [mm]: 9.2
Edge Thickness te [mm]: 8
Back focal length fb [mm]: 594.4
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-600PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 700
Center Thickness tc [mm]: 8.9
Edge Thickness te [mm]: 7.8
Back focal length fb [mm]: 694.6
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-700PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 800
Center Thickness tc [mm]: 8.6
Edge Thickness te [mm]: 7.7
Back focal length fb [mm]: 794.9
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-800PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50
Focal length f [mm]: 1000
Center Thickness tc [mm]: 8.3
Edge Thickness te [mm]: 7.6
Back focal length fb [mm]: 995
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50-1000PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 60
Focal length f [mm]: 170.8
Center Thickness tc [mm]: 17.7
Edge Thickness te [mm]: 11.4
Back focal length fb [mm]: 161.9
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-60-170PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 60
Focal length f [mm]: 200.3
Center Thickness tc [mm]: 16.1
Edge Thickness te [mm]: 10.7
Back focal length fb [mm]: 192.1
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-60-200PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 60
Focal length f [mm]: 250
Center Thickness tc [mm]: 14.3
Edge Thickness te [mm]: 10
Back focal length fb [mm]: 242.8
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-60-250PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 60
Focal length f [mm]: 499.1
Center Thickness tc [mm]: 10.7
Edge Thickness te [mm]: 8.6
Back focal length fb [mm]: 493.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-60-500PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 60
Focal length f [mm]: 597.9
Center Thickness tc [mm]: 10.1
Edge Thickness te [mm]: 8.3
Back focal length fb [mm]: 592.6
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-60-600PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 80
Focal length f [mm]: 149.7
Center Thickness tc [mm]: 30.3
Edge Thickness te [mm]: 17.2
Back focal length fb [mm]: 133.6
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-80-150PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 80
Focal length f [mm]: 200.8
Center Thickness tc [mm]: 24.3
Edge Thickness te [mm]: 14.7
Back focal length fb [mm]: 188.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-80-200PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 80
Focal length f [mm]: 299.8
Center Thickness tc [mm]: 18.8
Edge Thickness te [mm]: 12.4
Back focal length fb [mm]: 290.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-80-300PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 80
Focal length f [mm]: 502.6
Center Thickness tc [mm]: 14.5
Edge Thickness te [mm]: 10.7
Back focal length fb [mm]: 494.9
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-80-500PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 80
Focal length f [mm]: 800.6
Center Thickness tc [mm]: 12.1
Edge Thickness te [mm]: 9.7
Back focal length fb [mm]: 794.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-80-800PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 100
Focal length f [mm]: 200.6
Center Thickness tc [mm]: 37
Edge Thickness te [mm]: 21.8
Back focal length fb [mm]: 181
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-100-200PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 100
Focal length f [mm]: 297.3
Center Thickness tc [mm]: 28
Edge Thickness te [mm]: 18
Back focal length fb [mm]: 283.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-100-300PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 100
Focal length f [mm]: 499.6
Center Thickness tc [mm]: 21.1
Edge Thickness te [mm]: 15.2
Back focal length fb [mm]: 488.8
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-100-500PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 100
Focal length f [mm]: 799.5
Center Thickness tc [mm]: 17.4
Edge Thickness te [mm]: 13.7
Back focal length fb [mm]: 790.4
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-100-800PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 100
Focal length f [mm]: 998.1
Center Thickness tc [mm]: 16.1
Edge Thickness te [mm]: 13.1
Back focal length fb [mm]: 989.7
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-100-1000PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 12.7
Focal length f [mm]: 25.1
Center Thickness tc [mm]: 7.3
Edge Thickness te [mm]: 5.3
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-12.7-25PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 12.7
Focal length f [mm]: 30
Center Thickness tc [mm]: 6.8
Edge Thickness te [mm]: 5.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-12.7-30PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 12.7
Focal length f [mm]: 40.1
Center Thickness tc [mm]: 6.1
Edge Thickness te [mm]: 4.9
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-12.7-40PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 12.7
Focal length f [mm]: 50.1
Center Thickness tc [mm]: 5.7
Edge Thickness te [mm]: 4.7
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-12.7-50PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 12.7
Focal length f [mm]: 60
Center Thickness tc [mm]: 5.4
Edge Thickness te [mm]: 4.6
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-12.7-60PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 12.7
Focal length f [mm]: 69.9
Center Thickness tc [mm]: 5.2
Edge Thickness te [mm]: 4.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-12.7-70PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 12.7
Focal length f [mm]: 79.9
Center Thickness tc [mm]: 5.1
Edge Thickness te [mm]: 4.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-12.7-80PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 12.7
Focal length f [mm]: 100.1
Center Thickness tc [mm]: 4.8
Edge Thickness te [mm]: 4.3
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-12.7-100PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25.4
Focal length f [mm]: 50.1
Center Thickness tc [mm]: 10.9
Edge Thickness te [mm]: 7
Back focal length fb [mm]: 44.9
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25.4-40PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25.4
Focal length f [mm]: 50.1
Center Thickness tc [mm]: 10.9
Edge Thickness te [mm]: 7
Back focal length fb [mm]: 44.9
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25.4-50PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25.4
Focal length f [mm]: 60.1
Center Thickness tc [mm]: 9.8
Edge Thickness te [mm]: 6.6
Back focal length fb [mm]: 55.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25.4-60PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25.4
Focal length f [mm]: 69.9
Center Thickness tc [mm]: 9
Edge Thickness te [mm]: 6.2
Back focal length fb [mm]: 65.3
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25.4-70PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25.4
Focal length f [mm]: 80
Center Thickness tc [mm]: 8.5
Edge Thickness te [mm]: 6.1
Back focal length fb [mm]: 75.9
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25.4-80PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25.4
Focal length f [mm]: 100.2
Center Thickness tc [mm]: 7.7
Edge Thickness te [mm]: 5.8
Back focal length fb [mm]: 96.5
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25.4-100PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25.4
Focal length f [mm]: 119.8
Center Thickness tc [mm]: 7.2
Edge Thickness te [mm]: 5.6
Back focal length fb [mm]: 116.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25.4-120PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25.4
Focal length f [mm]: 149.6
Center Thickness tc [mm]: 6.7
Edge Thickness te [mm]: 5.4
Back focal length fb [mm]: 146.2
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25.4-150PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25.4
Focal length f [mm]: 170.4
Center Thickness tc [mm]: 6.4
Edge Thickness te [mm]: 5.3
Back focal length fb [mm]: 167.1
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25.4-170PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25.4
Focal length f [mm]: 200.1
Center Thickness tc [mm]: 6.1
Edge Thickness te [mm]: 5.1
Back focal length fb [mm]: 197
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25.4-200PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25.4
Focal length f [mm]: 222
Center Thickness tc [mm]: 6
Edge Thickness te [mm]: 5.1
Back focal length fb [mm]: 218.9
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25.4-220PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25.4
Focal length f [mm]: 250.8
Center Thickness tc [mm]: 5.8
Edge Thickness te [mm]: 5
Back focal length fb [mm]: 247.7
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25.4-250PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 25.4
Focal length f [mm]: 300
Center Thickness tc [mm]: 5.6
Edge Thickness te [mm]: 5
Back focal length fb [mm]: 296.6
Centration [ ´ ]: <1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-25.4-300PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50.8
Focal length f [mm]: 100.5
Center Thickness tc [mm]: 19.9
Edge Thickness te [mm]: 12.1
Back focal length fb [mm]: 90
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50.8-100PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50.8
Focal length f [mm]: 120.2
Center Thickness tc [mm]: 17.7
Edge Thickness te [mm]: 11.2
Back focal length fb [mm]: 111
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50.8-120PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50.8
Focal length f [mm]: 150.7
Center Thickness tc [mm]: 15.5
Edge Thickness te [mm]: 10.4
Back focal length fb [mm]: 142.8
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50.8-150PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50.8
Focal length f [mm]: 200.1
Center Thickness tc [mm]: 13.3
Edge Thickness te [mm]: 9.5
Back focal length fb [mm]: 193.3
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50.8-200PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50.8
Focal length f [mm]: 249.4
Center Thickness tc [mm]: 12.1
Edge Thickness te [mm]: 9
Back focal length fb [mm]: 243.4
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50.8-250PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50.8
Focal length f [mm]: 299.5
Center Thickness tc [mm]: 11.2
Edge Thickness te [mm]: 8.6
Back focal length fb [mm]: 293.7
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50.8-300PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50.8
Focal length f [mm]: 400
Center Thickness tc [mm]: 10.2
Edge Thickness te [mm]: 8.3
Back focal length fb [mm]: 394.7
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50.8-400PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50.8
Focal length f [mm]: 500.3
Center Thickness tc [mm]: 9.6
Edge Thickness te [mm]: 8.1
Back focal length fb [mm]: 495.2
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50.8-500PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50.8
Focal length f [mm]: 700
Center Thickness tc [mm]: 8.9
Edge Thickness te [mm]: 7.8
Back focal length fb [mm]: 694.6
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50.8-700PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip

Diameter D [mm]: 50.8
Focal length f [mm]: 1000
Center Thickness tc [mm]: 8.3
Edge Thickness te [mm]: 7.5
Back focal length fb [mm]: 995.1
Material: BK7, SF2
Design wavelength [nm]: Blue: 486.1nm, Green: 546.1nm, Red: 656.3nm
Coating: Broadband multi-layer anti-reflection coating for the Visible
Bonding of lenses: Ultraviolet Hardened Adhesive
Laser Damage Threshold [J/cm²] : 0.3
Surface Quality (Scratch-Dig): 40-20
Clear aperture: 90% of actual aperture

Downloads

OSE-DLB-50.8-1000PM_STP.zip

OSE-DLB.pdf

Opt(ME-optics).zip
