Reference number: GMT-CXN

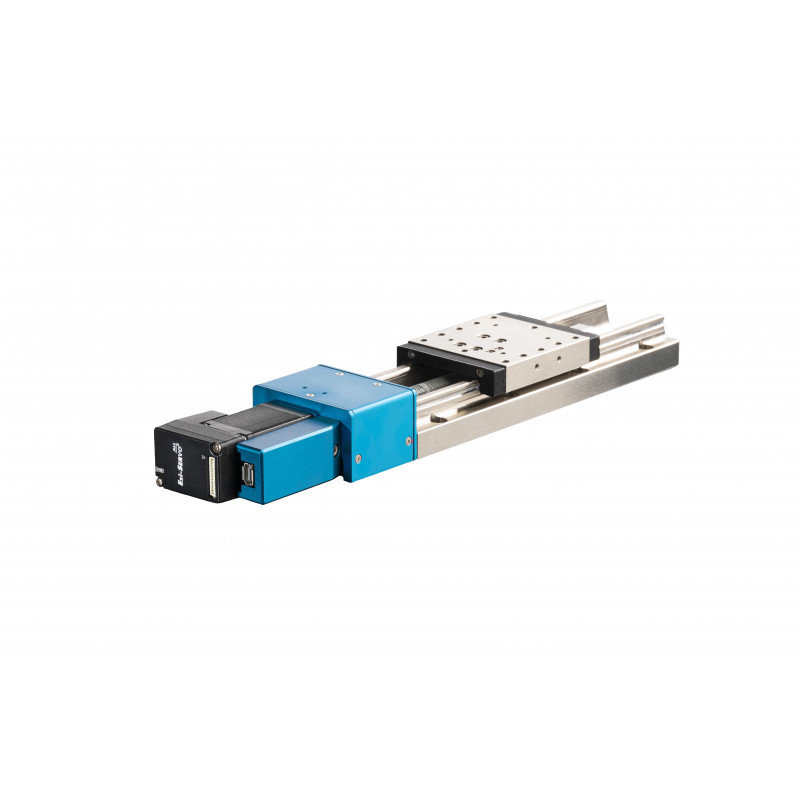

Motorised positionner with included closed loop controller available. Modular and assemblable for the different X, Y and Z axes,...
Need more info?
Contact our expert.
Our Team
Description
Technical Specification
Table Size 50x50 mm 60x60 mm 80x80 mm
Table Stroke 30 - 200 mm 30 - 300mm 30 - 300mm
Pitch 1mm, Preloaded Ball Screw ( 2mm pitch optional )
Repeatibility /Accuracy +/- 500nm
Max Speed 20 mm/s* ( up to 50mm/s* with EZI Servo ) (*1 mm pitch )
Minimum Step <1µm
Straightness 2µm
Parallelism 10µm
Material Stainless Steel ( Body and rail = one piece )
Motor Nanotec / Fastech 2 Phase Stepper Motor
Connector Harting ix Industrial®
Limit switch Photoelectric
Power Voltage 24V DC
Compatibility any 2 phase Stepper Motor Controller
Controller available with integrated Closed Loop controller
Motorised positionner with included closed loop controller available. Modular and assemblable for the different X, Y and Z axes,...
