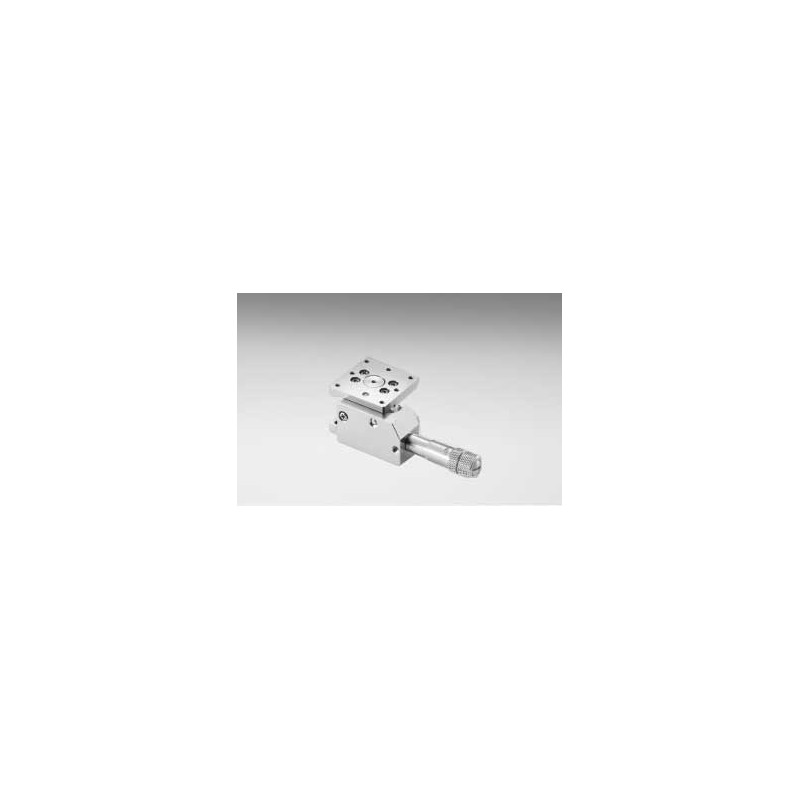

OSE-TSDS-3: Z axis, 25 x 25 mm

Reference number: OSE-TSDS-253

Table Size in mm

Version

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: Z axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel z-axis [± mm]: 3
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 5
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 7.14
Moment Stiffness / Roll [´´/Ncm]: 7.15
Parallelism [µm]: 80
Running Parallelism: 15
Gewicht in kg: 0.1

Downloads

OSE-TSDS-3.pdf

OSE-TSDS-253_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 3
Travel z-axis [± mm]: 3
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 88.3
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 3.9
Moment Stiffness / Pitch [´´/Ncm]: 1.84
Moment Stiffness / Roll [´´/Ncm]: 1.84
Parallelism [µm]: 80
Running Parallelism: 20
Gewicht in kg: 0.25

Downloads

OSE-TSDS-3.pdf

OSE-TSDS-403_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 5
Travel z-axis [± mm]: 5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 6.9
Moment Stiffness / Pitch [´´/Ncm]: 0.51
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 80
Running Parallelism: 25
Gewicht in kg: 1

Downloads

OSE-TSDS-4.pdf

OSE-TSDS-603_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 5
Travel z-axis [± mm]: 5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 6.9
Moment Stiffness / Pitch [´´/Ncm]: 0.51
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 80
Running Parallelism: 25
Gewicht in kg: 1.1

Downloads

OSE-TSDS-653-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 3
Travel z-axis [± mm]: 3
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 88.3
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 3.9
Moment Stiffness / Pitch [´´/Ncm]: 1.84
Moment Stiffness / Roll [´´/Ncm]: 1.84
Parallelism [µm]: 80
Running Parallelism: 20
Gewicht in kg: 0.25

Downloads

OSE-TSDS-3.pdf

OSE-TSDS-403UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 5
Travel z-axis [± mm]: 5
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 2.5
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 6.9
Moment Stiffness / Pitch [´´/Ncm]: 0.51
Moment Stiffness / Roll [´´/Ncm]: 0.51
Parallelism [µm]: 80
Running Parallelism: 25
Gewicht in kg: 1.1

Downloads

OSE-TSDS-3L.pdf

OSE-TSDS-653UU_STP.zip

ManualStages.zip

Actuators.pdf
