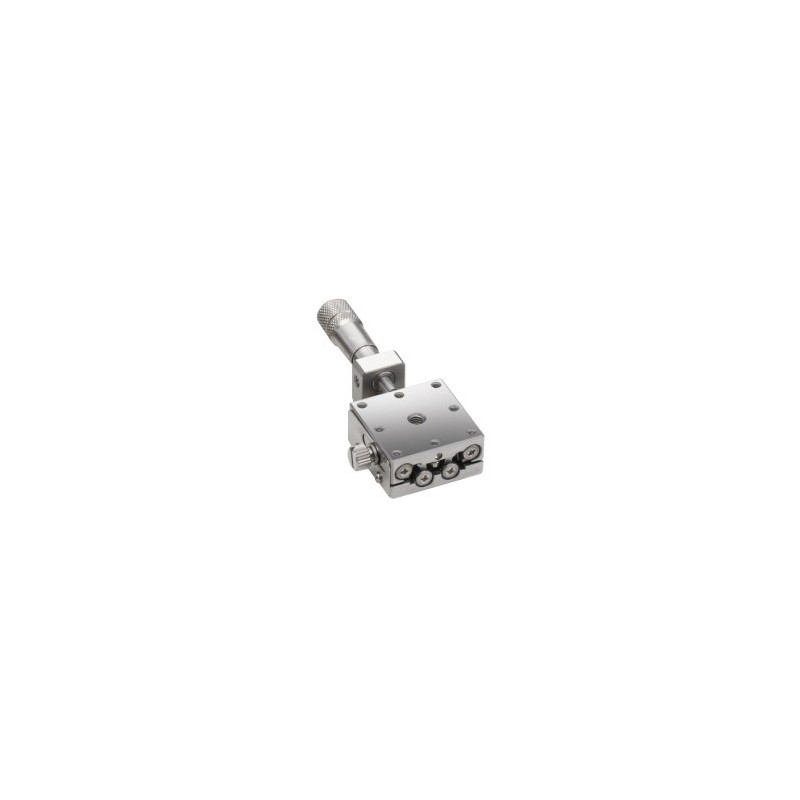

OSE-TSDS-1: X axis, 25 x 25 mm

Reference number: OSE-TSDS-251C

Table Size in mm

Version

Micrometer Position

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: X axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 30
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3.7
Max. Moment Capacity / Yaw [Nm]: 1.5
Moment Stiffness / Pitch [´´/Ncm]: 1.8
Moment Stiffness / Roll [´´/Ncm]: 1.6
Moment Stiffness / Yaw [´´/Ncm]: 2
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.07

Downloads

OSE-TSDS-1.pdf

OSE-TSDS-251C_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 30
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 3.9
Max. Moment Capacity / Yaw [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.36
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.4
Parallelism [µm]: 15
Running Parallelism: 10
Gewicht in kg: 0.2

Downloads

OSE-TSDS-1.pdf

OSE-TSDS-401C_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 343
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 6.4
Max. Moment Capacity / Roll [Nm]: 6.4
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.2
Parallelism [µm]: 15
Running Parallelism: 10
Gewicht in kg: 0.5

Downloads

OSE-TSDS-1.pdf

OSE-TSDS-601C_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 30
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3.7
Max. Moment Capacity / Yaw [Nm]: 1.5
Moment Stiffness / Pitch [´´/Ncm]: 1.8
Moment Stiffness / Roll [´´/Ncm]: 1.6
Moment Stiffness / Yaw [´´/Ncm]: 2
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.07

Downloads

OSE-TSDS-1.pdf

OSE-TSDS-251S_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 30
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 3.9
Max. Moment Capacity / Yaw [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.36
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.4
Parallelism [µm]: 15
Running Parallelism: 10
Gewicht in kg: 0.2

Downloads

OSE-TSDS-1.pdf

OSE-TSDS-401S_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 343
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 6.4
Max. Moment Capacity / Roll [Nm]: 6.4
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.2
Parallelism [µm]: 15
Running Parallelism: 10
Gewicht in kg: 0.5

Downloads

OSE-TSDS-2.pdf

OSE-TSDS-601S_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 343
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 8.8
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.2
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.55

Downloads

OSE-TSDS-1.pdf

OSE-TSDS-651C-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 343
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 8.8
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.2
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.55

Downloads

OSE-TSDS-2.pdf

OSE-TSDS-651S-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 30
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 3.9
Max. Moment Capacity / Yaw [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.36
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.4
Parallelism [µm]: 15
Running Parallelism: 10
Gewicht in kg: 0.2

Downloads

OSE-TSDS-1.pdf

OSE-TSDS-401CUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 30
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 3.9
Max. Moment Capacity / Yaw [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.36
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.4
Parallelism [µm]: 15
Running Parallelism: 10
Gewicht in kg: 0.2

Downloads

OSE-TSDS-1.pdf

OSE-TSDS-401SUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 343
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 8.8
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.2
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.55

Downloads

OSE-TSDS-1.pdf

OSE-TSDS-651CUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Stainless steel
Finish: None
Load Capacity [N]: 343
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 8.8
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.2
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.55

Downloads

OSE-TSDS-2.pdf

OSE-TSDS-651SUU_STP.zip

ManualStages.zip

Actuators.pdf
