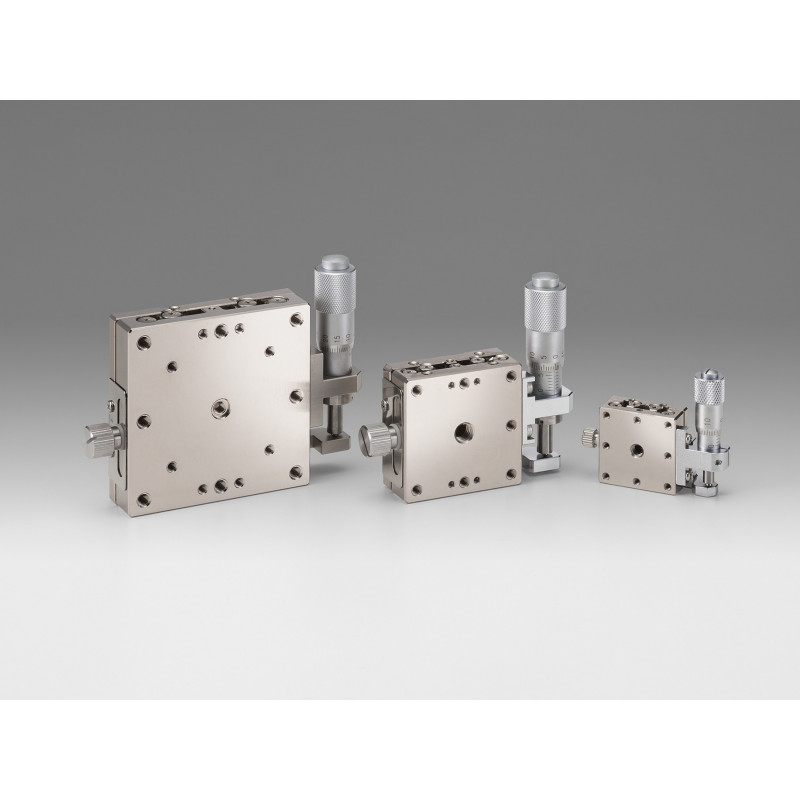

OSE-TSDH-SZ: Z axis, 25 x 25 mm

search

Reference number: OSE-TSDH-401SZ

Table Size in mm
Load Capacity in N
Table Size in mm
Load Capacity in N
alt

Need more info?
Contact our expert.

Our Team

Description

  • Type: Z axis
  • Tabel Size [mm]: 25 x 25
  • Maximum XYZ-travel [mm]: 3
  • Travel z-axis [± mm]: 3
  • Lead of Actuator [mm]: 0.5
  • Micrometer Readable Resolution [mm]: 0.01
  • Bearing type: Extended contact ball guide
  • Primary Material: SUS440C quench hardened
  • Finish: Electroless nickel
  • Load Capacity [N]: 14.7
  • Travel Accuracy / Straightness [µm]: 1
  • Max. Moment Capacity / Pitch [Nm]: 1.7
  • Max. Moment Capacity / Roll [Nm]: 1.7
  • Moment Stiffness / Pitch [´´/Ncm]: 1.9
  • Running Parallelism: 20
  • Gewicht in kg: 0.07
