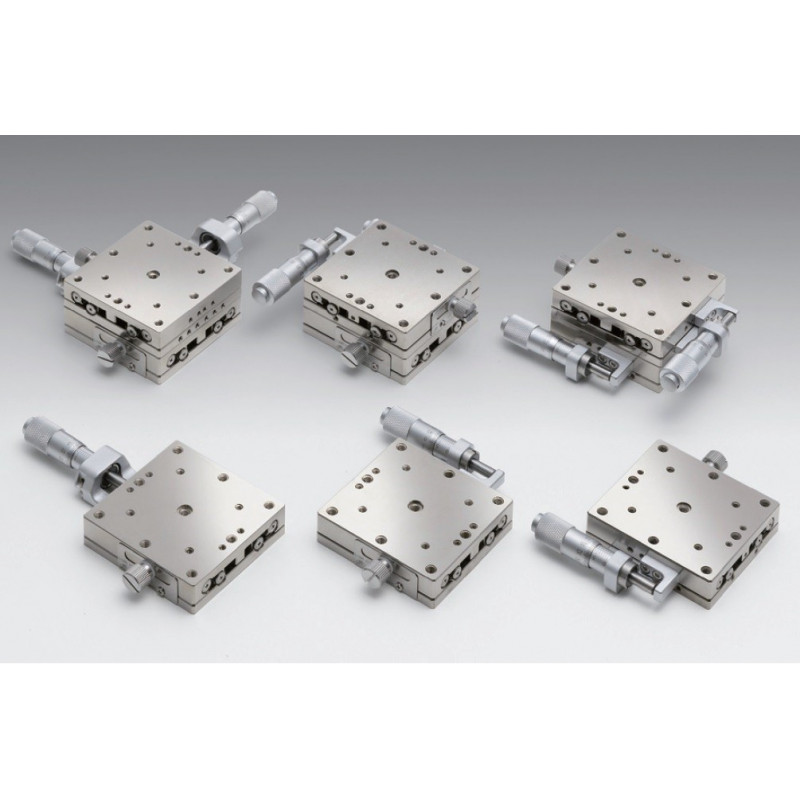

OSE-TSDH-602: XY axis, 60 x 60 mm

Reference number: OSE-TSDH-602C

Table Size in mm

Model

Load Capacity in N

Micrometer Position

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: XY axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel y-axis[± mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Electroless nickel
Load Capacity [N]: 343
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 13.2
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.38
Moment Stiffness / Roll [´´/Ncm]: 0.37
Moment Stiffness / Yaw [´´/Ncm]: 0.39
Parallelism [µm]: 50
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.9

Downloads

OSE-TSDH-601_602.pdf

OSE-TSDH-602C_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel y-axis[± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Electroless nickel
Load Capacity [N]: 343
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 13.2
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.38
Moment Stiffness / Roll [´´/Ncm]: 0.37
Moment Stiffness / Yaw [´´/Ncm]: 0.39
Parallelism [µm]: 50
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.9

Downloads

OSE-TSDH-601_602.pdf

OSE-TSDH-602S_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel y-axis[± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Electroless nickel
Load Capacity [N]: 343
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 13.2
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.38
Moment Stiffness / Roll [´´/Ncm]: 0.37
Moment Stiffness / Yaw [´´/Ncm]: 0.39
Parallelism [µm]: 50
Running Parallelism: 20
Orthogonality [µm]: 10
Gewicht in kg: 0.9

Downloads

OSE-TSDH-602SR_STP.zip

ManualStages.zip

Actuators.pdf
