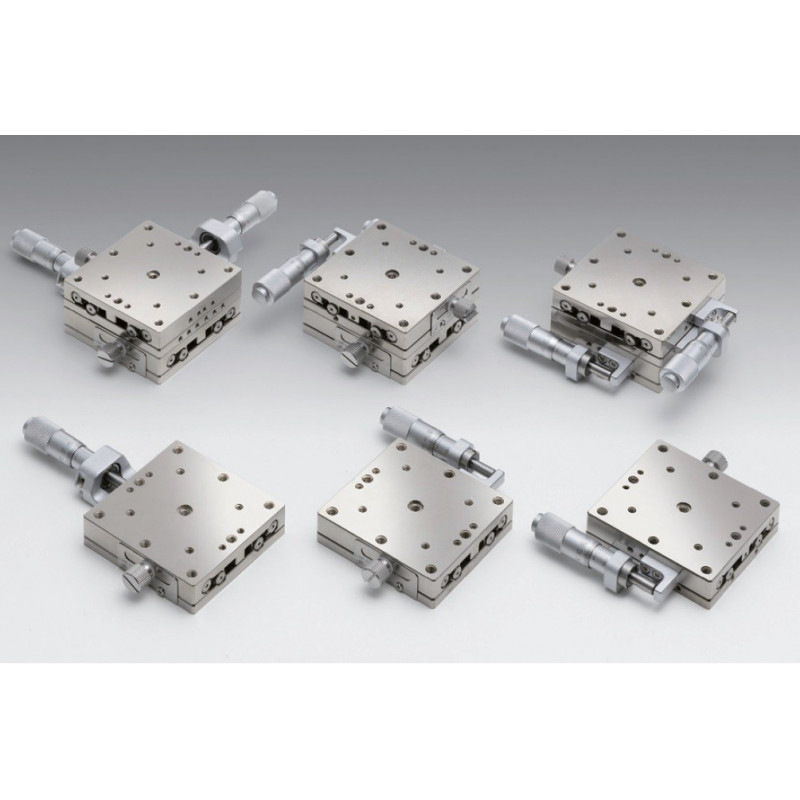

OSE-TSDH-601: X axis, 60 x 60 mm

Reference number: OSE-TSDH-601C

Model

Micrometer Position

Need more info?
Contact our expert.

Our Team

Description

Type: X axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Electroless nickel
Load Capacity [N]: 343
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 14.7
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Moment Stiffness / Roll [´´/Ncm]: 0.13
Moment Stiffness / Yaw [´´/Ncm]: 0.16
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.45

Downloads

OSE-TSDH-251_252W.pdf

OSE-TSDH-601C_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Electroless nickel
Load Capacity [N]: 343
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 14.7
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Moment Stiffness / Roll [´´/Ncm]: 0.13
Moment Stiffness / Yaw [´´/Ncm]: 0.16
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.45

Downloads

OSE-TSDH-251_252W.pdf

OSE-TSDH-601S_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Electroless nickel
Load Capacity [N]: 343
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 13.2
Max. Moment Capacity / Roll [Nm]: 14.7
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Moment Stiffness / Roll [´´/Ncm]: 0.13
Moment Stiffness / Yaw [´´/Ncm]: 0.16
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.45

Downloads

OSE-TSDH-601_602.pdf

OSE-TSDH-601SR_STP.zip

ManualStages.zip

Actuators.pdf
