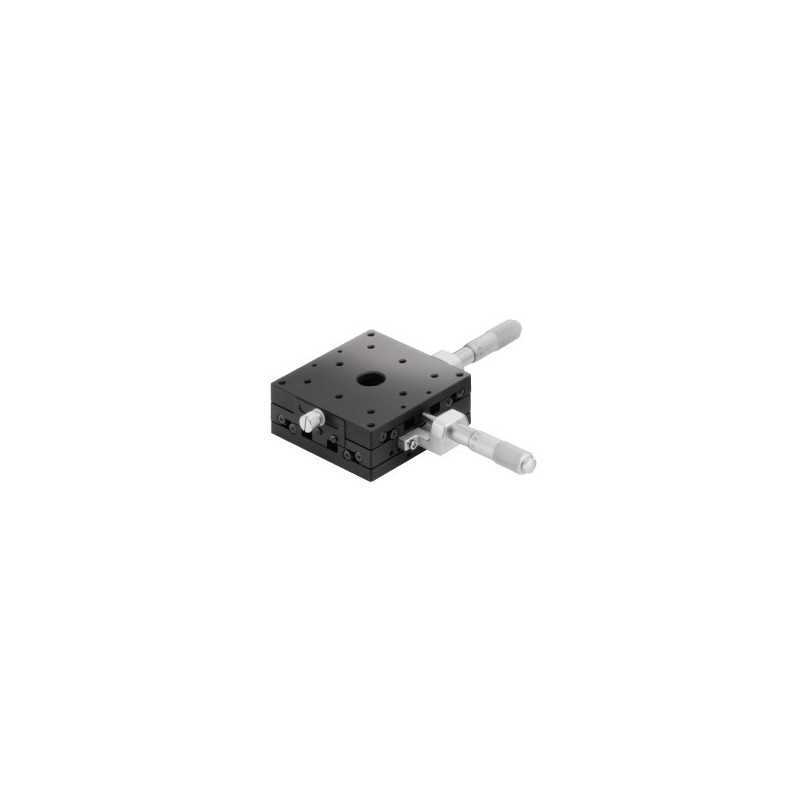

OSE-TSD-802C: XY axis, 80 x 80 mm

Reference number: OSE-TSD-802C

Model

Micrometer Position

Need more info?
Contact our expert.

Our Team

Description

Type: XY axis
Tabel Size [mm]: 80×80
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [± mm]: 12.5
Travel y-axis [± mm]: 12.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 490
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch [´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 19.4
Max. Moment Capacity / Roll [Nm]: 19.4
Max. Moment Capacity / Yaw [Nm]: 19.5
Moment Stiffness / Pitch [´´/Ncm]: 0.06
Moment Stiffness / Roll [´´/Ncm]: 0.06
Moment Stiffness / Yaw [´´/Ncm]: 0.08
Parallelism [µm]: 40
Running Parallelism: 15
Orthogonality [µm]: 10
Gewicht in kg: 1.4

Downloads

OSE-TSD-1001-1002.pdf

OSE-TSD-802C_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 80×80
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Travel y-axis[± mm]: 12.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 490
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 19.4
Max. Moment Capacity / Roll [Nm]: 19.4
Max. Moment Capacity / Yaw [Nm]: 19.5
Moment Stiffness / Pitch [´´/Ncm]: 0.06
Moment Stiffness / Roll [´´/Ncm]: 0.06
Moment Stiffness / Yaw [´´/Ncm]: 0.08
Parallelism [µm]: 40
Running Parallelism: 15
Orthogonality [µm]: 10
Gewicht in kg: 1.4

Downloads

OSE-TSD-1001-1002.pdf

OSE-TSD-802S_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 80×80
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Travel y-axis[± mm]: 12.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 490
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 19.4
Max. Moment Capacity / Roll [Nm]: 19.4
Max. Moment Capacity / Yaw [Nm]: 19.5
Moment Stiffness / Pitch [´´/Ncm]: 0.06
Moment Stiffness / Roll [´´/Ncm]: 0.06
Moment Stiffness / Yaw [´´/Ncm]: 0.08
Parallelism [µm]: 40
Running Parallelism: 15
Orthogonality [µm]: 10
Gewicht in kg: 1.4

Downloads

OSE-TSD-1001-1002.pdf

OSE-TSD-802SR_STP.zip

ManualStages.zip

Actuators.pdf
