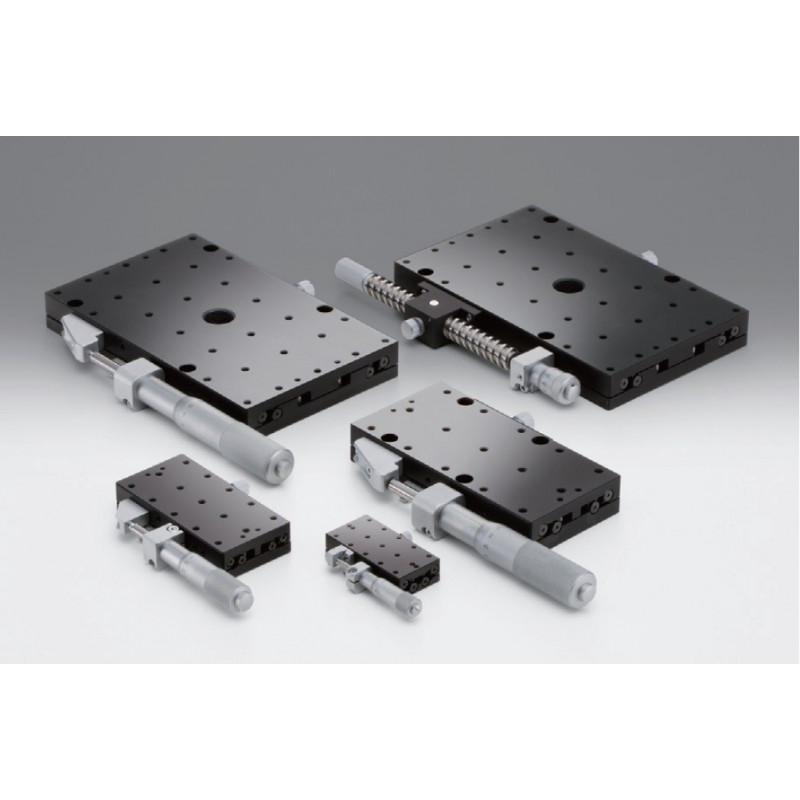

OSE-TSD-652-M6/UU: XY axis, 65 x 120 mm

Reference number: OSE-TSD-65122C-M6

Table Size in mm

Version

Micrometer Position

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: XY axis
Tabel Size [mm]: 65×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [± mm]: 20
Travel y-axis [± mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 392
Travel Accuracy / Straightness [µm]: 3
Travel Accuracy / Pitch [´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 9.8
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 100
Running Parallelism: 25
Gewicht in kg: 2.4

Downloads

OSE-TSD-651-M6_UU.pdf

OSE-TSD-65122S-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 65×170
Maximum XYZ-travel [mm]: 25
Travel x-axis [±mm]: 25
Travel y-axis[± mm]: 25
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 490
Travel Accuracy / Straightness [µm]: 5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 9.8
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 10
Moment Stiffness / Pitch [´´/Ncm]: 0.27
Moment Stiffness / Roll [´´/Ncm]: 0.27
Moment Stiffness / Yaw [´´/Ncm]: 0.27
Parallelism [µm]: 100
Running Parallelism: 30
Gewicht in kg: 3.4

Downloads

OSE-TSD-65172S-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 65×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 392
Travel Accuracy / Straightness [µm]: 3
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 9.8
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 100
Running Parallelism: 25
Gewicht in kg: 2.4

Downloads

OSE-TSD-651-M6_UU.pdf

OSE-TSD-65122CUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 65×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 392
Travel Accuracy / Straightness [µm]: 3
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 9.8
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 100
Running Parallelism: 25
Gewicht in kg: 2.4

Downloads

OSE-TSD-651-M6_UU.pdf

OSE-TSD-65122SUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 65×170
Maximum XYZ-travel [mm]: 25
Travel x-axis [±mm]: 25
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 490
Travel Accuracy / Straightness [µm]: 5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 9.8
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 10
Moment Stiffness / Pitch [´´/Ncm]: 0.27
Moment Stiffness / Roll [´´/Ncm]: 0.27
Moment Stiffness / Yaw [´´/Ncm]: 0.27
Parallelism [µm]: 100
Running Parallelism: 30
Gewicht in kg: 3.4

Downloads

OSE-TSD-3_TSD-UD.pdf

OSE-TSD-65172SUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 65×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Travel y-axis[± mm]: 20
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 392
Travel Accuracy / Straightness [µm]: 3
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 9.8
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.3
Parallelism [µm]: 100
Running Parallelism: 25
Gewicht in kg: 2.4

Downloads

OSE-TSD-652.pdf

OSE-TSD-65122C-M6_STP.zip

ManualStages.zip

Actuators.pdf
