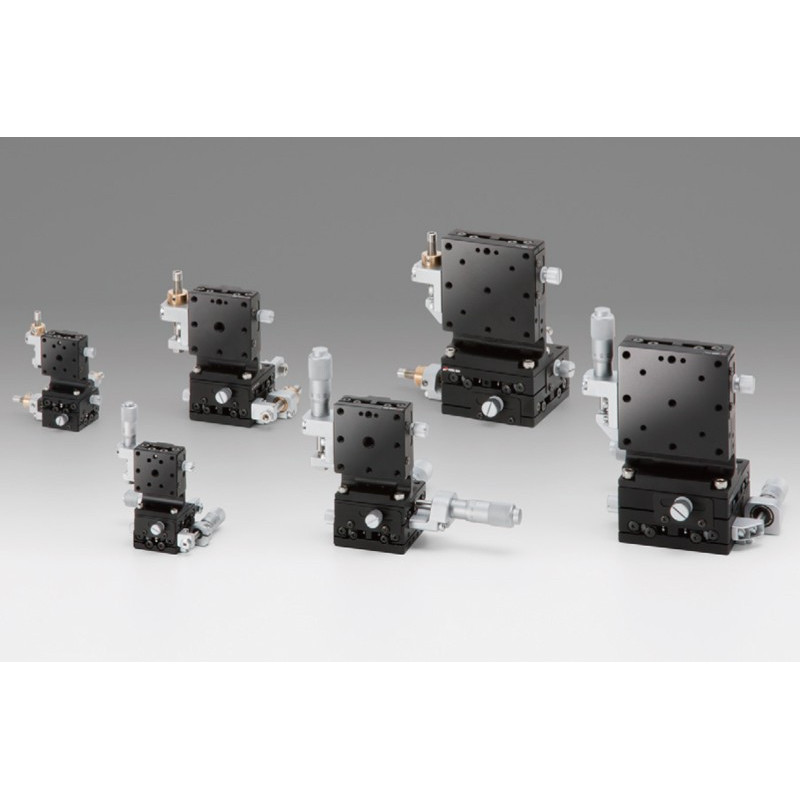

OSE-TSD-605L: XYZ axis, 60 x 60 mm

Reference number: OSE-TSD-605CL

Need more info?
Contact our expert.

Our Team

Description
