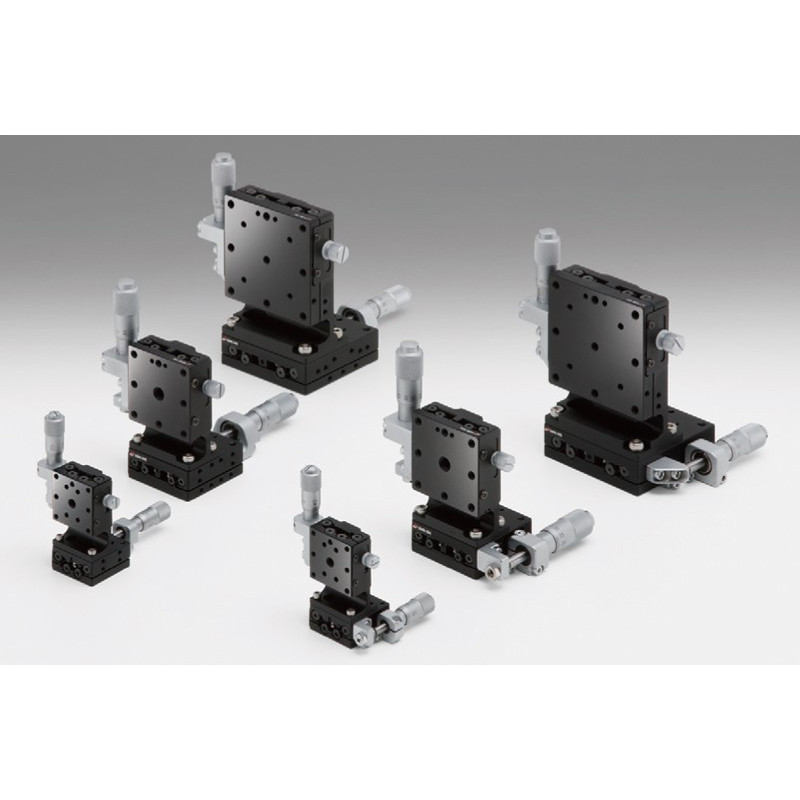

OSE-TSD-404L: XZ axis, 40 x 40 mm

Reference number: OSE-TSD-404CL

Model

Version

Micrometer Position

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: XZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.9
Gewicht in kg: 0.5

Downloads

OSE-TSD-604L_TSD-654L.pdf

OSE-TSD-404SL_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.9
Gewicht in kg: 0.5

Downloads

OSE-TSD-254L_TSD-404L.pdf

OSE-TSD-404CLUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.9
Gewicht in kg: 0.5

Downloads

OSE-TSD-254L_TSD-404L.pdf

OSE-TSD-404SRL_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.9
Gewicht in kg: 0.5

Downloads

OSE-TSD-254L_TSD-404L.pdf

OSE-TSD-404SLUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.9
Gewicht in kg: 0.5

Downloads

OSE-TSD-604L_TSD-654L.pdf

OSE-TSD-404SRLUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Travel z-axis [± mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Max. Moment Capacity / Pitch [Nm]: 5
Max. Moment Capacity / Roll [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.9
Gewicht in kg: 0.5

Downloads

OSE-TSD-604L_TSD-654L.pdf

OSE-TSD-404CL_STP.zip

ManualStages.zip

Actuators.pdf
