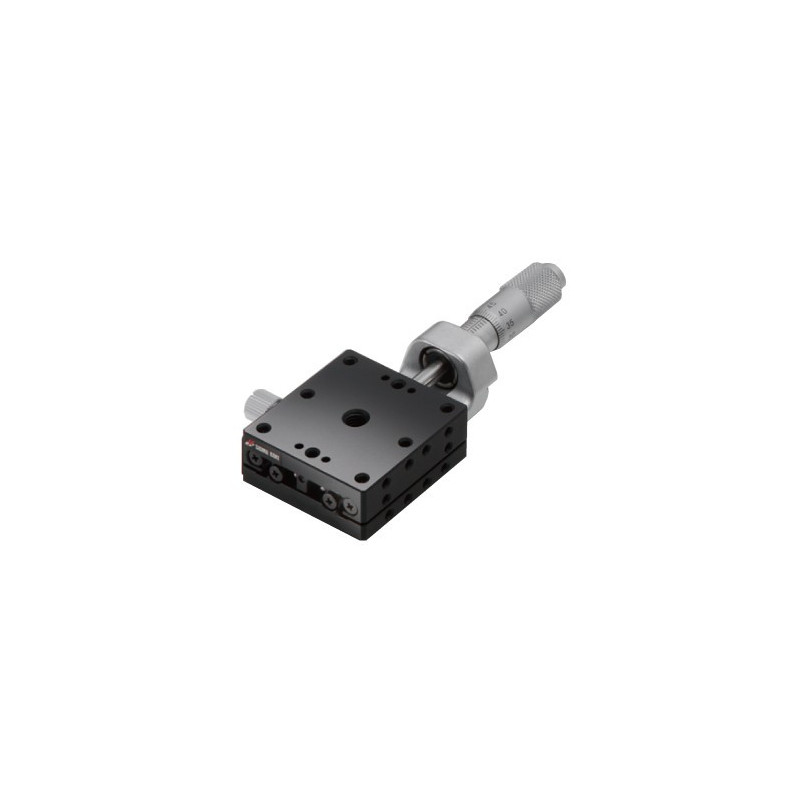

OSE-TSD-401: X axis, 40 x 40 mm

Reference number: OSE-TSD-401C

Model

Version

Micrometer Position

Model

Version

Micrometer Position

Need more info?
Contact our expert.

Our Team

Description

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [± mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch [´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 7.8
Max. Moment Capacity / Yaw [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.23
Parallelism [µm]: 15
Running Parallelism: 7
Orthogonality [µm]: -
Gewicht in kg: 0.2

Downloads

OSE-TSD-601-602.pdf

OSE-TSD-401C_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 7.8
Max. Moment Capacity / Yaw [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.23
Parallelism [µm]: 15
Running Parallelism: 7
Orthogonality [µm]: -
Gewicht in kg: 0.2

Downloads

OSE-TSD-601-602.pdf

OSE-TSD-401S_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 7.8
Max. Moment Capacity / Yaw [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.23
Parallelism [µm]: 15
Running Parallelism: 7
Orthogonality [µm]: -
Gewicht in kg: 0.2

Downloads

OSE-TSD-601-602.pdf

OSE-TSD-401SR_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 7.8
Max. Moment Capacity / Yaw [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.23
Parallelism [µm]: 15
Running Parallelism: 7
Orthogonality [µm]: -
Gewicht in kg: 0.2

Downloads

OSE-TSD-401-402.pdf

OSE-TSD-401CUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 7.8
Max. Moment Capacity / Yaw [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.23
Parallelism [µm]: 15
Running Parallelism: 7
Orthogonality [µm]: -
Gewicht in kg: 0.2

Downloads

OSE-TSD-401-402.pdf

OSE-TSD-401SUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 7.8
Max. Moment Capacity / Yaw [Nm]: 5
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.23
Parallelism [µm]: 15
Running Parallelism: 7
Orthogonality [µm]: -
Gewicht in kg: 0.2

Downloads

OSE-TSD-401-402.pdf

OSE-TSD-401SRUU_STP.zip

ManualStages.zip

Actuators.pdf
