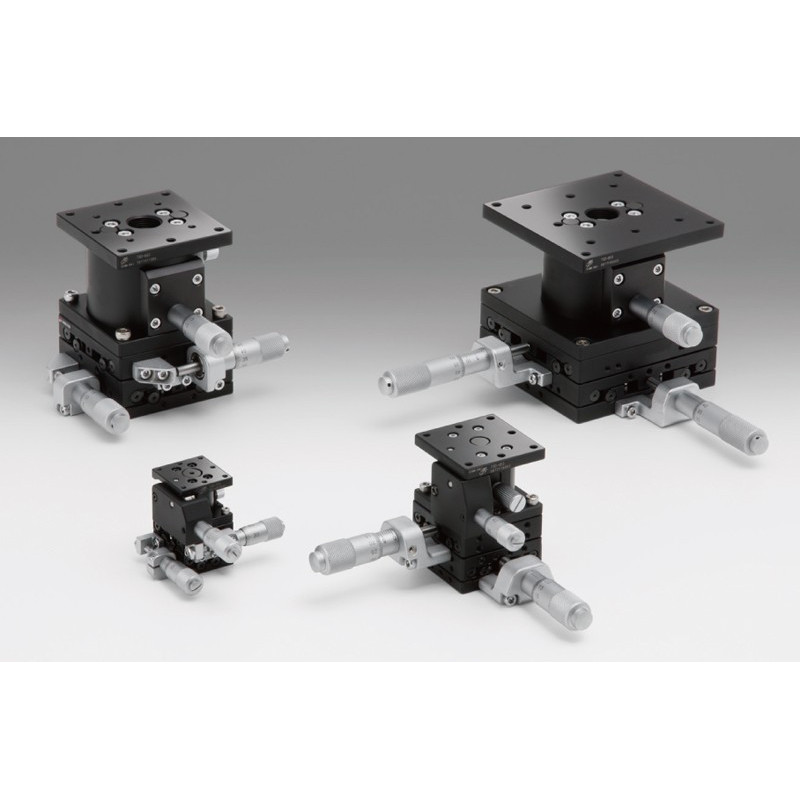

OSE-TSD-255: XYZ axis, 25 x 25 mm

Reference number: OSE-TSD-255C

Model

Micrometer Position

Need more info?
Contact our expert.

Our Team

Description

Type: XYZ axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Travel z-axis [± mm]: 3
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Vernier Scale: 0.1
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome + Black matte
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 5
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 10.55
Moment Stiffness / Roll [´´/Ncm]: 10.55
Parallelism [µm]: 130
Gewicht in kg: 0.2

Downloads

OSE-TSD-255C_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Travel z-axis [± mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome + Black matte
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 5
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 10.55
Moment Stiffness / Roll [´´/Ncm]: 10.55
Parallelism [µm]: 130
Gewicht in kg: 0.2

Downloads

OSE-TSD-255S_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Travel z-axis [± mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome + Black matte
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 5
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 10.55
Moment Stiffness / Roll [´´/Ncm]: 10.55
Parallelism [µm]: 130
Gewicht in kg: 0.2

Downloads

OSE-TSD-255_TSD-405.pdf

OSE-TSD-255SR_STP.zip

ManualStages.zip

Actuators.pdf
