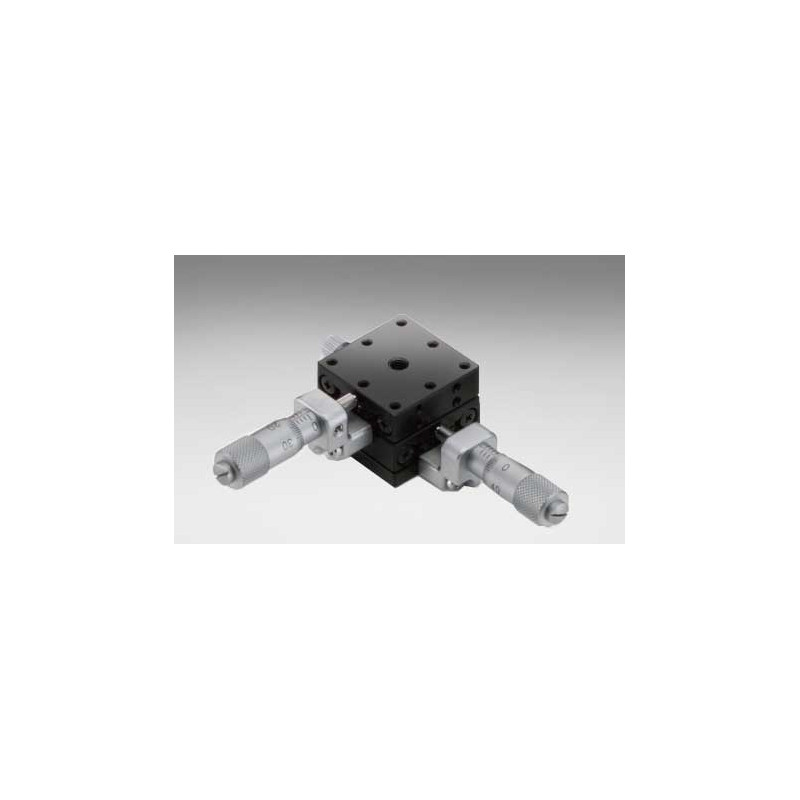

OSE-TSD-252: XY axis, 25 x 25 mm

Reference number: OSE-TSD-252C

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: XY axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [± mm]: 3
Travel y-axis [± mm]: 3
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch [´´]: 30
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Pitch [´´/Ncm]: 3
Moment Stiffness / Roll [´´/Ncm]: 2.2
Moment Stiffness / Yaw [´´/Ncm]: 2.2
Parallelism [µm]: 30
Running Parallelism: 10
Orthogonality [µm]: 10
Gewicht in kg: 0.1

Downloads

OSE-TSD-401-402.pdf

OSE-TSD-252C_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 30
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Pitch [´´/Ncm]: 3
Moment Stiffness / Roll [´´/Ncm]: 2.2
Moment Stiffness / Yaw [´´/Ncm]: 2.2
Parallelism [µm]: 30
Running Parallelism: 10
Orthogonality [µm]: 10
Gewicht in kg: 0.1

Downloads

OSE-TSD-401-402.pdf

OSE-TSD-252S_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 30
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 3
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Pitch [´´/Ncm]: 3
Moment Stiffness / Roll [´´/Ncm]: 2.2
Moment Stiffness / Yaw [´´/Ncm]: 2.2
Parallelism [µm]: 30
Running Parallelism: 10
Orthogonality [µm]: 10
Gewicht in kg: 0.1

Downloads

OSE-TSD-401-402.pdf

OSE-TSD-252SR_STP.zip

ManualStages.zip

Actuators.pdf
