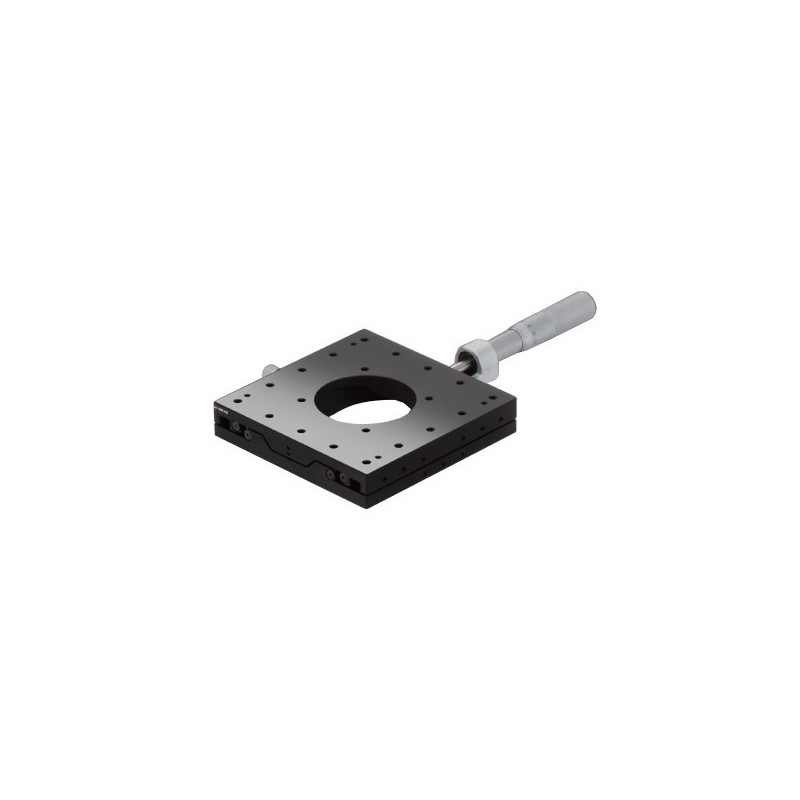

OSE-TSD-1201: X axis, 120 x 120 mm

Reference number: OSE-TSD-1201CH

Option

Model

Version

Micrometer Position

Option

Model

Version

Micrometer Position

Need more info?
Contact our expert.

Our Team

Description

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [± mm]: 20
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch [´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 53.9
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.03
Moment Stiffness / Roll [´´/Ncm]: 0.02
Moment Stiffness / Yaw [´´/Ncm]: 0.03
Parallelism [µm]: 50
Running Parallelism: 12
Gewicht in kg: 2

Downloads

OSE-TSD-251-252.pdf

OSE-TSD-1201CH_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 53.9
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.03
Moment Stiffness / Roll [´´/Ncm]: 0.02
Moment Stiffness / Yaw [´´/Ncm]: 0.03
Parallelism [µm]: 50
Running Parallelism: 12
Gewicht in kg: 2

Downloads

OSE-TSD-251-252.pdf

OSE-TSD-1201SH_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 53.9
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.03
Moment Stiffness / Roll [´´/Ncm]: 0.02
Moment Stiffness / Yaw [´´/Ncm]: 0.03
Parallelism [µm]: 50
Running Parallelism: 12
Gewicht in kg: 2

Downloads

OSE-TSD-251-252.pdf

OSE-TSD-1201SRH_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 53.9
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.03
Moment Stiffness / Roll [´´/Ncm]: 0.02
Moment Stiffness / Yaw [´´/Ncm]: 0.03
Parallelism [µm]: 50
Running Parallelism: 12
Gewicht in kg: 2

Downloads

OSE-TSD-651-M6_UU.pdf

OSE-TSD-1201CH-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 53.9
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.03
Moment Stiffness / Roll [´´/Ncm]: 0.02
Moment Stiffness / Yaw [´´/Ncm]: 0.03
Parallelism [µm]: 50
Running Parallelism: 12
Gewicht in kg: 2

Downloads

OSE-TSD-651-M6_UU.pdf

OSE-TSD-1201SH-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 53.9
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.03
Moment Stiffness / Roll [´´/Ncm]: 0.02
Moment Stiffness / Yaw [´´/Ncm]: 0.03
Parallelism [µm]: 50
Running Parallelism: 12
Gewicht in kg: 2

Downloads

OSE-TSD-1201.pdf

OSE-TSD-1201CHUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 53.9
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.03
Moment Stiffness / Roll [´´/Ncm]: 0.02
Moment Stiffness / Yaw [´´/Ncm]: 0.03
Parallelism [µm]: 50
Running Parallelism: 12
Gewicht in kg: 2

Downloads

OSE-TSD-1201.pdf

OSE-TSD-1201SHUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 53.9
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.03
Moment Stiffness / Roll [´´/Ncm]: 0.02
Moment Stiffness / Yaw [´´/Ncm]: 0.03
Parallelism [µm]: 50
Running Parallelism: 12
Gewicht in kg: 2

Downloads

OSE-TSD-1201.pdf

OSE-TSD-1201SRHUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 0.5
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 53.9
Max. Moment Capacity / Roll [Nm]: 49
Max. Moment Capacity / Yaw [Nm]: 27
Moment Stiffness / Pitch [´´/Ncm]: 0.03
Moment Stiffness / Roll [´´/Ncm]: 0.02
Moment Stiffness / Yaw [´´/Ncm]: 0.03
Parallelism [µm]: 50
Running Parallelism: 12
Gewicht in kg: 2

Downloads

OSE-TSD-1202.pdf

OSE-TSD-1201SRH-M6_STP.zip

ManualStages.zip

Actuators.pdf
