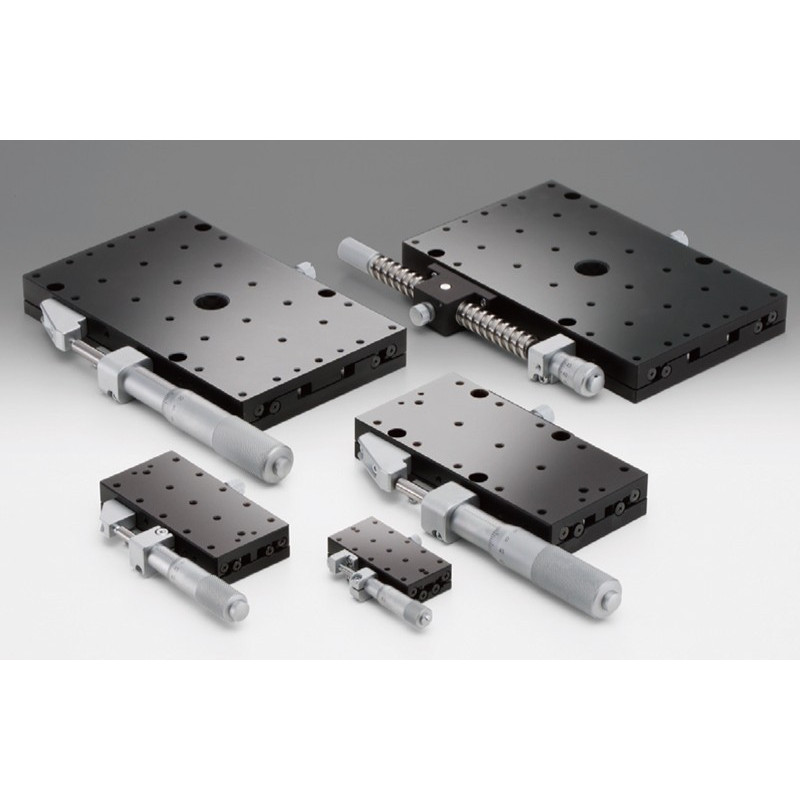

OSE-TSD-10161: X axis, 100 x 160 mm

OSE-TSD-10161: X axis, 100 x 160 mm

Reference number: OSE-TSD-10161SR

Model

Model

Need more info?
Contact our expert.

Our Team

I am interested in:

an offer

information material

a call and advice

*Required field

reCAPTCHA

Write your question

Email address^*

Message^*

^* Required fields

Question sent

Your question has been sent!

Your question cannot be sent!

Description

Type: X axis
Tabel Size [mm]: 100×160
Maximum XYZ-travel [mm]: 25
Travel x-axis [±mm]: 25
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 686
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 51
Max. Moment Capacity / Roll [Nm]: 41
Max. Moment Capacity / Yaw [Nm]: 19.6
Moment Stiffness / Pitch [´´/Ncm]: 0.02
Moment Stiffness / Roll [´´/Ncm]: 0.03
Moment Stiffness / Yaw [´´/Ncm]: 0.02
Parallelism [µm]: 50
Running Parallelism: 15
Gewicht in kg: 2.4

Downloads

OSE-TSD-10161SR_STP.zip

ManualStages.zip

Actuators.pdf
