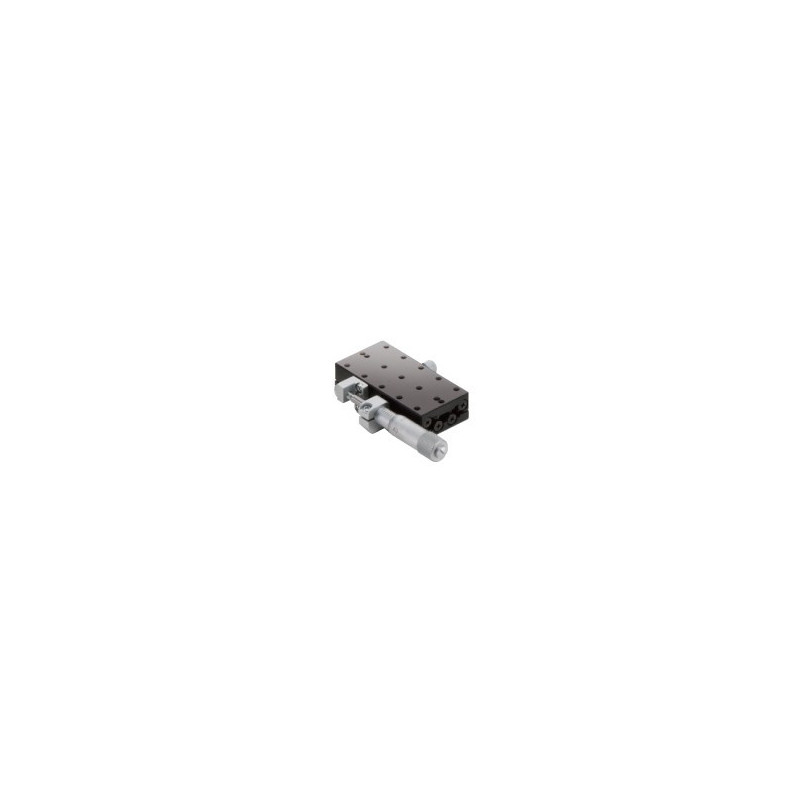

OSE-TSD: X axis, 25 x 50 mm

Reference number: OSE-TSD-25501S

Table Size in mm

Model

Version

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: X axis
Tabel Size [mm]: 25×50
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [± mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch [´´]: 30
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 2.5
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Pitch [´´/Ncm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 1.6
Moment Stiffness / Yaw [´´/Ncm]: 1.2
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.1

Downloads

OSE-TSD_TSD-SDM.pdf

OSE-TSD-25501S_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×80
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch[´´]: 30
Travel Accuracy / Yaw [´´]: 30
Max. Moment Capacity / Pitch [Nm]: 7.9
Max. Moment Capacity / Roll [Nm]: 3.9
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.2
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.4

Downloads

OSE-TSD-40801S_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 60×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [± mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 392
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch [´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 19.6
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.1
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.1
Parallelism [µm]: 50
Running Parallelism: 12
Gewicht in kg: 1

Downloads

OSE-TSD-60121S_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 25×50
Maximum XYZ-travel [mm]: 6.5
Travel x-axis [±mm]: 6.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch[´´]: 30
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 2.5
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 1.6
Moment Stiffness / Yaw [´´/Ncm]: 1.2
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.1

Downloads

OSE-TSD_TSD-SDM.pdf

OSE-TSD-25501SR_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×80
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch[´´]: 30
Travel Accuracy / Yaw [´´]: 30
Max. Moment Capacity / Pitch [Nm]: 7.9
Max. Moment Capacity / Roll [Nm]: 3.9
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.2
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.4

Downloads

OSE-TSD-40801SR_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 60×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 392
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch[´´]: 25
Travel Accuracy / Yaw [´´]: 15
Max. Moment Capacity / Pitch [Nm]: 19.6
Max. Moment Capacity / Roll [Nm]: 9.8
Max. Moment Capacity / Yaw [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.1
Moment Stiffness / Roll [´´/Ncm]: 0.2
Moment Stiffness / Yaw [´´/Ncm]: 0.1
Parallelism [µm]: 50
Running Parallelism: 12
Gewicht in kg: 1

Downloads

OSE-TSD-60121SR_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×80
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Extended contact ball guide
Primary Material: Steel
Finish: Super black chrome
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 1
Travel Accuracy / Pitch[´´]: 30
Travel Accuracy / Yaw [´´]: 30
Max. Moment Capacity / Pitch [Nm]: 7.9
Max. Moment Capacity / Roll [Nm]: 3.9
Max. Moment Capacity / Yaw [Nm]: 4.9
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Moment Stiffness / Roll [´´/Ncm]: 0.3
Moment Stiffness / Yaw [´´/Ncm]: 0.2
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.4

Downloads

OSE-TSD-651-M6_UU.pdf

OSE-TSD-40801SUU_STP.zip

ManualStages.zip

Actuators.pdf
