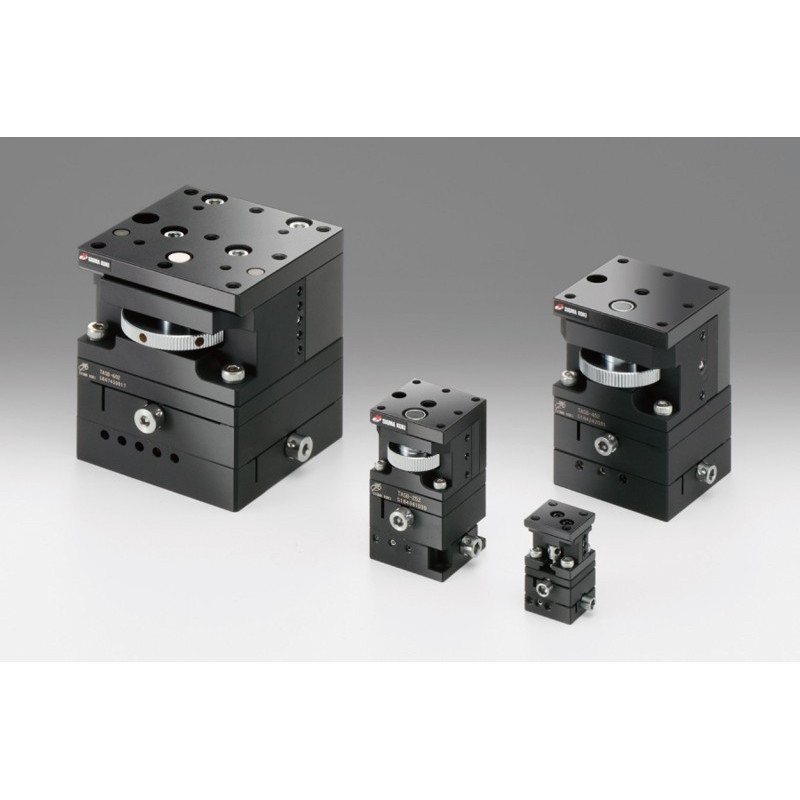

OSE-TASB-5: XYZ axis, 15 x 15 mm

Reference number: OSE-TASB-155

Table Size in mm

Version

Table Size in mm

Version

Need more info?
Contact our expert.

Our Team

Description

Type: XYZ axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Travel z-axis [± mm]: +3 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 6.9
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.3
Max. Moment Capacity / Roll [Nm]: 0.3
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 9.7
Moment Stiffness / Roll [´´/Ncm]: 7.7
Parallelism [µm]: 200
Gewicht in kg: 0.16

Downloads

OSE-TASB-5.pdf

OSE-TASB-255_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 7
Travel x-axis [±mm]: 7
Travel y-axis[± mm]: 7
Travel z-axis [± mm]: +5 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 5.8
Moment Stiffness / Roll [´´/Ncm]: 3.7
Parallelism [µm]: 200
Gewicht in kg: 0.53

Downloads

OSE-TASB-5.pdf

OSE-TASB-405_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 15×15
Maximum XYZ-travel [mm]: 2
Travel x-axis [±mm]: 2
Travel y-axis[± mm]: 2
Travel z-axis [± mm]: +2 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.4
Load Capacity [N]: 4.9
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: -
Max. Moment Capacity / Roll [Nm]: -
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: -
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 200
Gewicht in kg: 0.04

Downloads

OSE-TASB-5.pdf

OSE-TASB-155_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 10
Travel x-axis [±mm]: 10
Travel y-axis[± mm]: 10
Travel z-axis [± mm]: +7 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 98.1
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 2.5
Parallelism [µm]: 200
Gewicht in kg: 1.73

Downloads

OSE-TASB-1.pdf

OSE-TASB-605_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 7
Travel x-axis [±mm]: 7
Travel y-axis[± mm]: 7
Travel z-axis [± mm]: +5 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 5.8
Moment Stiffness / Roll [´´/Ncm]: 3.7
Parallelism [µm]: 200
Gewicht in kg: 0.53

Downloads

OSE-TASB-5.pdf

OSE-TASB-405UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Travel y-axis[± mm]: 12.5
Travel z-axis [± mm]: +7 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 98.1
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 2.5
Parallelism [µm]: 200
Gewicht in kg: 2.22

Downloads

OSE-TASB-5.pdf

OSE-TASB-655-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Travel y-axis[± mm]: 12.5
Travel z-axis [± mm]: +7 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 98.1
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 2.5
Parallelism [µm]: 200
Gewicht in kg: 2.22

Downloads

OSE-TSD-255_TSD-405.pdf

OSE-TASB-655UU_STP.zip

ManualStages.zip

Actuators.pdf
