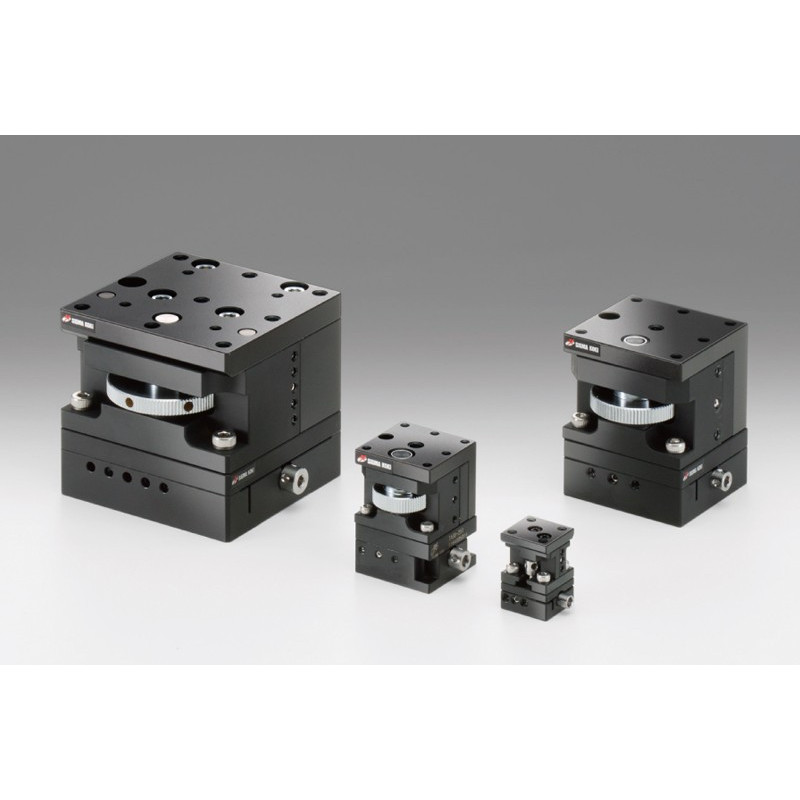

OSE-TASB-4: XZ axis, 15 x 15 mm

Reference number: OSE-TASB-154

Table Size in mm

Version

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: XZ axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel z-axis [± mm]: +3 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Screw Pitch [mm]: 0.5
Load Capacity [N]: 6.9
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.3
Max. Moment Capacity / Roll [Nm]: 0.3
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 8.2
Moment Stiffness / Roll [´´/Ncm]: 5.6
Parallelism [µm]: 150
Gewicht in kg: 0.11

Downloads

OSE-TASB-4.pdf

OSE-TASB-254_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 7
Travel x-axis [±mm]: 7
Travel z-axis [± mm]: +5 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Screw Pitch [mm]: 0.5
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 5.2
Moment Stiffness / Roll [´´/Ncm]: 3.1
Parallelism [µm]: 150
Gewicht in kg: 0.4

Downloads

OSE-TASB-4.pdf

OSE-TASB-404_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 15×15
Maximum XYZ-travel [mm]: 2
Travel x-axis [±mm]: 2
Travel z-axis [± mm]: +2 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Screw Pitch [mm]: 0.4
Load Capacity [N]: 4.9
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: -
Max. Moment Capacity / Roll [Nm]: -
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: -
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 150
Gewicht in kg: 0.03

Downloads

OSE-TASB-4.pdf

OSE-TASB-154_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 10
Travel x-axis [±mm]: 10
Travel z-axis [± mm]: +7 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Screw Pitch [mm]: 0.5
Load Capacity [N]: 98.1
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 1.1
Moment Stiffness / Roll [´´/Ncm]: 2.1
Parallelism [µm]: 150
Gewicht in kg: 1.4

Downloads

OSE-TASB-5.pdf

OSE-TASB-604_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 7
Travel x-axis [±mm]: 7
Travel z-axis [± mm]: +5 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Screw Pitch [mm]: 0.5
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 5.2
Moment Stiffness / Roll [´´/Ncm]: 3.1
Parallelism [µm]: 150
Gewicht in kg: 0.4

Downloads

OSE-TASB-4.pdf

OSE-TASB-404UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Travel z-axis [± mm]: +7 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Screw Pitch [mm]: 0.5
Load Capacity [N]: 98.1
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 1.1
Moment Stiffness / Roll [´´/Ncm]: 2.1
Parallelism [µm]: 150
Gewicht in kg: 1.8

Downloads

OSE-TASB-5.pdf

OSE-TASB-654UU_STP.zip

ManualStages.zip

Actuators.pdf
