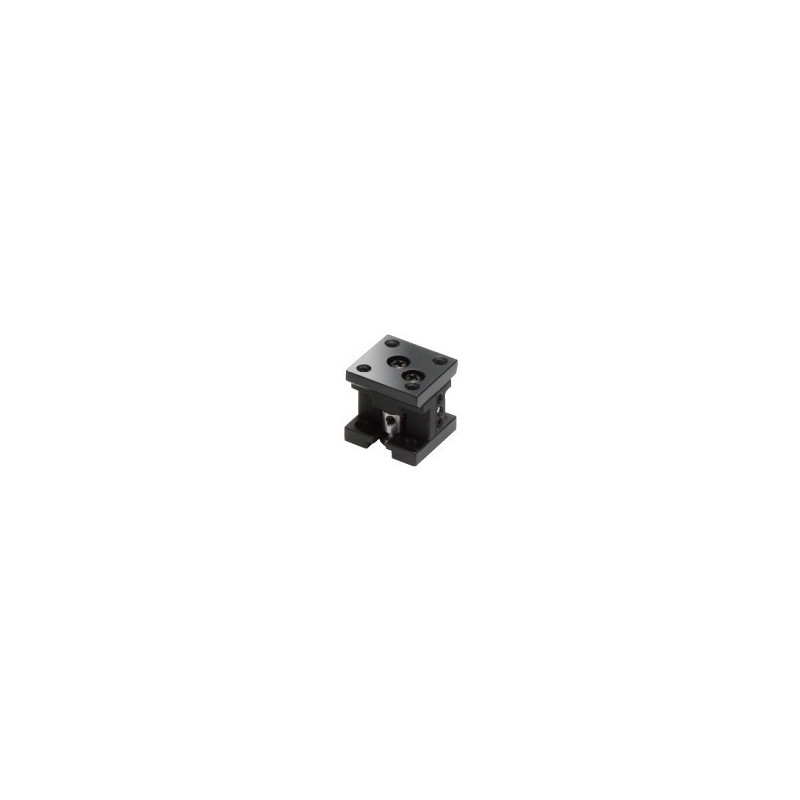

OSE-TASB-3: Z axis, 15 x 15 mm

Reference number: OSE-TASB-153

Table Size in mm

Version

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: Z axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel z-axis [± mm]: +3-0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 6.9
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.3
Max. Moment Capacity / Roll [Nm]: 0.3
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 6.1
Moment Stiffness / Roll [´´/Ncm]: 4.1
Parallelism [µm]: 100
Gewicht in kg: 0.05

Downloads

OSE-TASB-3.pdf

OSE-TASB-253_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 5
Travel z-axis [± mm]: +5-0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 4.59
Moment Stiffness / Roll [´´/Ncm]: 2.55
Parallelism [µm]: 100
Gewicht in kg: 0.2

Downloads

OSE-TASB-3.pdf

OSE-TASB-403_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 15×15
Maximum XYZ-travel [mm]: 2
Travel z-axis [± mm]: +2-0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Screw Pitch [mm]: 0.4
Load Capacity [N]: 4.9
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: -
Max. Moment Capacity / Roll [Nm]: -
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: -
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: 100
Gewicht in kg: 0.012

Downloads

OSE-TASB-3.pdf

OSE-TASB-153_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 7
Travel z-axis [± mm]: +7-0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 98.1
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 0.7
Moment Stiffness / Roll [´´/Ncm]: 1.7
Parallelism [µm]: 100
Gewicht in kg: 0.9

Downloads

OSE-TASB-4.pdf

OSE-TASB-603_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 5
Travel z-axis [± mm]: +5 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 29.4
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 4.59
Moment Stiffness / Roll [´´/Ncm]: 2.55
Parallelism [µm]: 100
Gewicht in kg: 0.2

Downloads

OSE-TASB-3.pdf

OSE-TASB-403UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 7
Travel z-axis [± mm]: +7 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 98.1
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 0.7
Moment Stiffness / Roll [´´/Ncm]: 1.7
Parallelism [µm]: 100
Gewicht in kg: 1.1

Downloads

OSE-TASB-3.pdf

OSE-TASB-653-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 7
Travel z-axis [± mm]: +7 -0
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 98.1
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 1
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 0.7
Moment Stiffness / Roll [´´/Ncm]: 1.7
Parallelism [µm]: 100
Gewicht in kg: 1.1

Downloads

OSE-TASB-4.pdf

OSE-TASB-653UU_STP.zip

ManualStages.zip

Actuators.pdf
