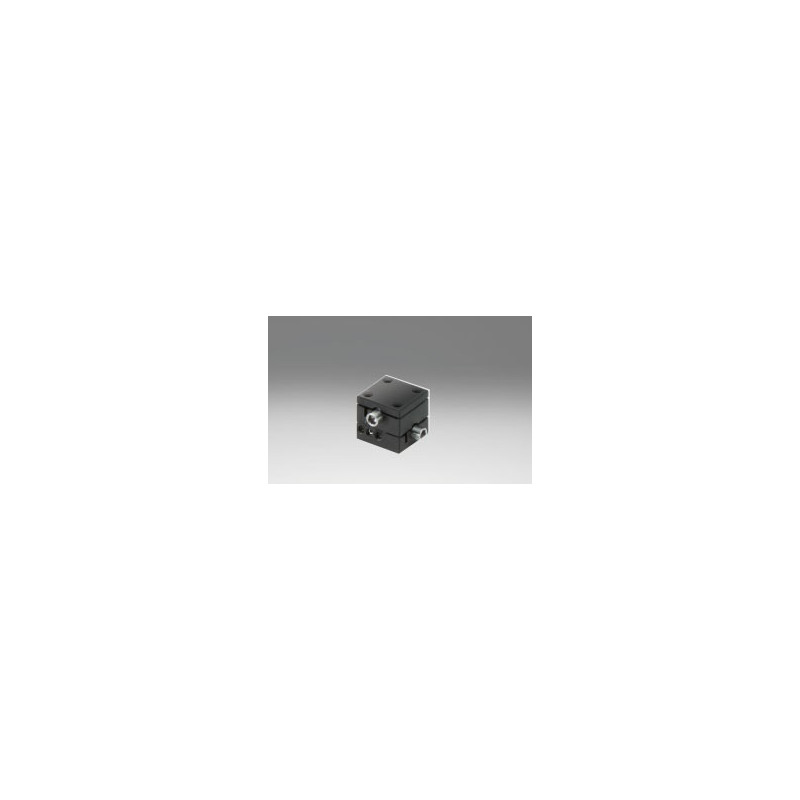

OSE-TASB-2: XY axis, 15 x 15 mm

Reference number: OSE-TASB-152

Table Size in mm

Version

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: XY axis
Tabel Size [mm]: 25×25
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Travel y-axis[± mm]: 3
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 3.57
Moment Stiffness / Roll [´´/Ncm]: 3.57
Parallelism [µm]: 100
Gewicht in kg: 0.11

Downloads

OSE-TASB-2.pdf

OSE-TASB-252_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 7
Travel x-axis [±mm]: 7
Travel y-axis[± mm]: 7
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 98.1
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 3.75
Max. Moment Capacity / Roll [Nm]: 3.75
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Pitch [´´/Ncm]: 1.12
Moment Stiffness / Roll [´´/Ncm]: 1.12
Parallelism [µm]: 100
Gewicht in kg: 0.3

Downloads

OSE-TASB-2.pdf

OSE-TASB-402_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 15×15
Maximum XYZ-travel [mm]: 2
Travel x-axis [±mm]: 2
Travel y-axis[± mm]: 2
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.4
Load Capacity [N]: 9.8
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: 0.2
Moment Stiffness / Pitch [´´/Ncm]: 15
Moment Stiffness / Roll [´´/Ncm]: 15
Parallelism [µm]: 100
Gewicht in kg: 0.03

Downloads

OSE-TASB-2.pdf

OSE-TASB-152_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 10
Travel x-axis [±mm]: 10
Travel y-axis[± mm]: 10
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 5.1
Max. Moment Capacity / Roll [Nm]: 5.1
Max. Moment Capacity / Yaw [Nm]: 4
Moment Stiffness / Pitch [´´/Ncm]: 0.7
Moment Stiffness / Roll [´´/Ncm]: 0.7
Parallelism [µm]: 100
Gewicht in kg: 0.83

Downloads

OSE-TASB-2.pdf

OSE-TASB-3.pdf

OSE-TASB-602_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 7
Travel x-axis [±mm]: 7
Travel y-axis[± mm]: 7
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 98.1
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 3.75
Max. Moment Capacity / Roll [Nm]: 3.75
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Pitch [´´/Ncm]: 1.12
Moment Stiffness / Roll [´´/Ncm]: 1.12
Parallelism [µm]: 100
Gewicht in kg: 0.3

Downloads

OSE-TASB-2.pdf

OSE-TASB-402UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Travel y-axis[± mm]: 12.5
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 5.1
Max. Moment Capacity / Roll [Nm]: 5.1
Max. Moment Capacity / Yaw [Nm]: 4
Moment Stiffness / Pitch [´´/Ncm]: 0.7
Moment Stiffness / Roll [´´/Ncm]: 0.7
Parallelism [µm]: 100
Gewicht in kg: 1.12

Downloads

OSE-TASB-2.pdf

OSE-TASB-652-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 65×65
Maximum XYZ-travel [mm]: 12.5
Travel x-axis [±mm]: 12.5
Travel y-axis[± mm]: 12.5
Bearing type: Dovetail method
Primary Material: Brass
Finish: Black matte
Screw Pitch [mm]: 0.5
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 5.1
Max. Moment Capacity / Roll [Nm]: 5.1
Max. Moment Capacity / Yaw [Nm]: 4
Moment Stiffness / Pitch [´´/Ncm]: 0.7
Moment Stiffness / Roll [´´/Ncm]: 0.7
Parallelism [µm]: 100
Gewicht in kg: 1.12

Downloads

OSE-TASB-3.pdf

OSE-TASB-652UU_STP.zip

ManualStages.zip

Actuators.pdf
