Optics & Optomechanics
Manual Positioning Systems

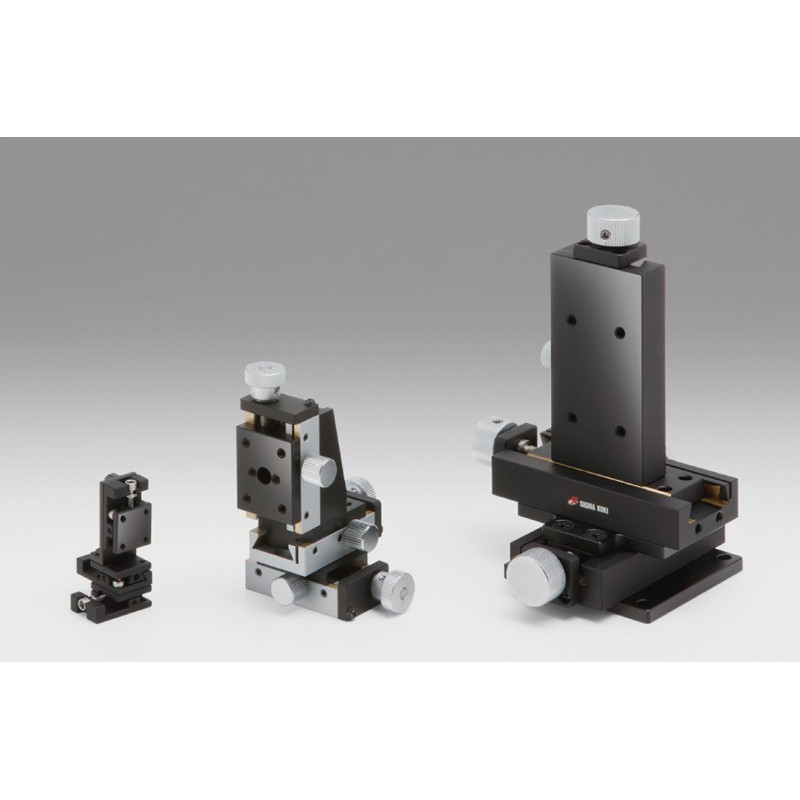

OSE-TAS-5L: XYZ axis, 24 x 30 mm

OSE-TAS-5L: XYZ axis, 24 x 30 mm

Reference number: OSE-TAS-24305L

Table Size in mm

Table Size in mm

Need more info?
Contact our expert.

Our Team

I am interested in:

an offer

information material

a call and advice

*Required field

reCAPTCHA

Write your question

Email address^*

Message^*

^* Required fields

Question sent

Your question has been sent!

Your question cannot be sent!

Description

Type: XYZ axis
Tabel Size [mm]: 24×30
Maximum XYZ-travel [mm]: 4
Travel x-axis [±mm]: 4
Travel y-axis[± mm]: 4
Travel z-axis [± mm]: 4
Lead of Actuator [mm]: 0.5
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 4.9
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.1
Max. Moment Capacity / Roll [Nm]: 0.1
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: -
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: -
Gewicht in kg: 0.62

Downloads

OSE-TAS-5L_TAR-5L.pdf

OSE-TAS-24305L_STP.zip

ManualStages.zip

Actuators.pdf

Type: XYZ axis
Tabel Size [mm]: 18×60
Maximum XYZ-travel [mm]: 7.5
Travel x-axis [±mm]: 7.5
Travel y-axis[± mm]: 7.5
Travel z-axis [± mm]: 7.5
Lead of Actuator [mm]: 0.5
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 9.8
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.1
Max. Moment Capacity / Roll [Nm]: 0.1
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: -
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: -
Gewicht in kg: 1.5

Downloads

OSE-TAS-1_TAS-2.pdf

OSE-TAS-20605L_STP.zip

ManualStages.zip

Actuators.pdf
