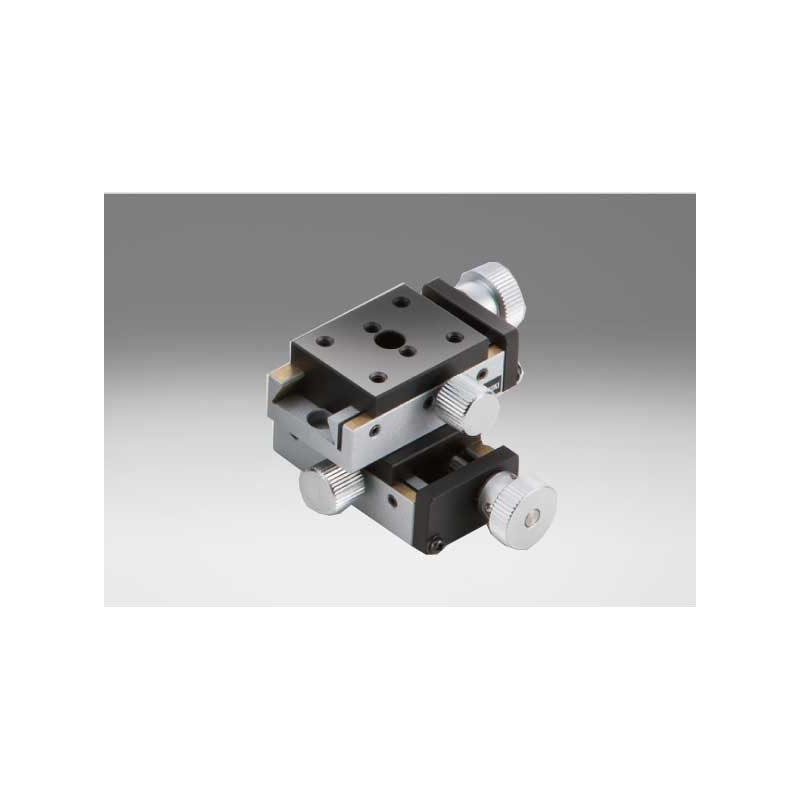

OSE-TAS-2: XY axis, 24 x 30 mm

Reference number: OSE-TAS-24302

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: XY axis
Tabel Size [mm]: 24×30
Maximum XYZ-travel [mm]: 4
Travel x-axis [±mm]: 4
Travel y-axis[± mm]: 4
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Screw Pitch [mm]: 0.5
Load Capacity [N]: 68.7
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: 0.5
Moment Stiffness / Pitch [´´/Ncm]: 1.5
Moment Stiffness / Roll [´´/Ncm]: 1.5
Parallelism [µm]: 100
Gewicht in kg: 0.4
