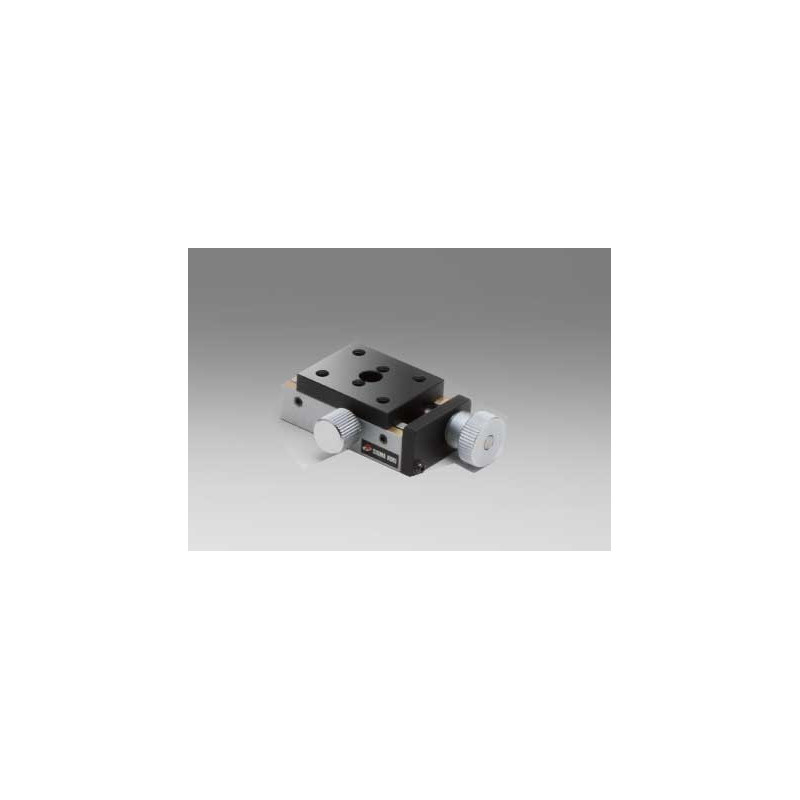

OSE-TAS-1: X axis, 24 x 30 mm

Reference number: OSE-TAS-24301

Table Size in mm

Model

Need more info?
Contact our expert.

Our Team

Description

Type: X axis
Tabel Size [mm]: 24×30
Maximum XYZ-travel [mm]: 4
Travel x-axis [±mm]: 4
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Screw Pitch [mm]: 0.5
Load Capacity [N]: 68.7
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: 0.5
Moment Stiffness / Pitch [´´/Ncm]: 0.51
Moment Stiffness / Roll [´´/Ncm]: 1
Parallelism [µm]: 50
Gewicht in kg: 0.2
