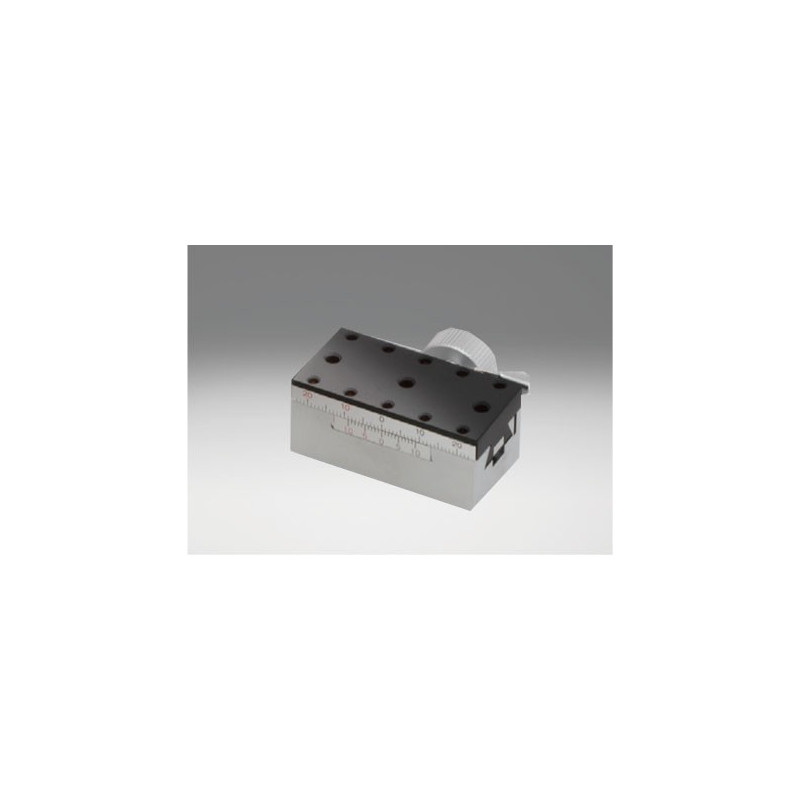

OSE-TARW/TAR: X axis, 25 x 50 mm

Reference number: OSE-TARW-25501

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: X axis
Tabel Size [mm]: 25×50
Maximum XYZ-travel [mm]: 10
Travel x-axis [±mm]: 10
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 78.5
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 1.2
Max. Moment Capacity / Roll [Nm]: 0.6
Max. Moment Capacity / Yaw [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 1.22
Moment Stiffness / Roll [´´/Ncm]: 2.45
Parallelism [µm]: 50
Gewicht in kg: 0.22

Downloads

OSE-TARA-1_TARW-TAR.pdf

OSE-TARW-25501_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 25×30
Maximum XYZ-travel [mm]: 25
Travel x-axis [±mm]: 25
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: 0.5
Moment Stiffness / Pitch [´´/Ncm]: 2.03
Moment Stiffness / Roll [´´/Ncm]: 1.53
Parallelism [µm]: 50
Gewicht in kg: 0.22

Downloads

OSE-TARA-1_TARW-TAR.pdf

OSE-TAR-25801_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 25×30
Maximum XYZ-travel [mm]: 45
Travel x-axis [±mm]: 45
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 40
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: 0.5
Moment Stiffness / Pitch [´´/Ncm]: 2.03
Moment Stiffness / Roll [´´/Ncm]: 1.53
Parallelism [µm]: 80
Gewicht in kg: 0.3

Downloads

OSE-TARA-1_TARW-TAR.pdf

OSE-TAR-25121_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 25×30
Maximum XYZ-travel [mm]: 65
Travel x-axis [±mm]: 65
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 49
Travel Accuracy / Straightness [µm]: 50
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: 0.5
Moment Stiffness / Pitch [´´/Ncm]: 2.03
Moment Stiffness / Roll [´´/Ncm]: 1.53
Parallelism [µm]: 80
Gewicht in kg: 0.36

Downloads

OSE-TAR-1_TAR-D.pdf

OSE-TAR-25161_STP.zip

ManualStages.zip

Actuators.pdf
