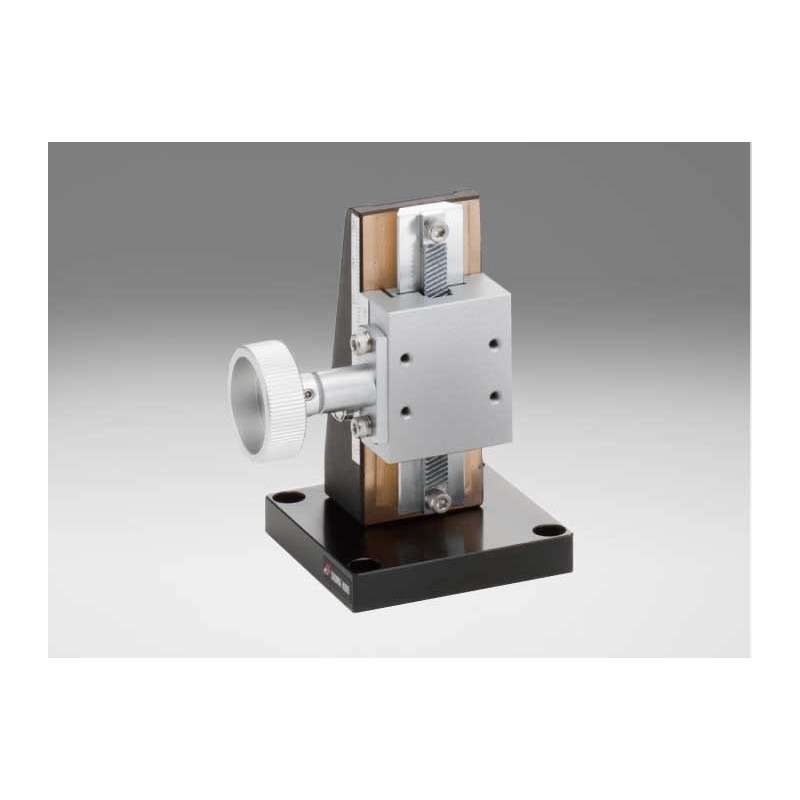

OSE-TAR-L: Z axis, 34 x 40 mm

Reference number: OSE-TAR-34403L

Table Size in mm

Version

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: Z axis
Tabel Size [mm]: 34×40
Maximum XYZ-travel [mm]: 25
Travel z-axis [± mm]: +25?-20
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 1.5
Max. Moment Capacity / Roll [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 0.51
Squareness [µm]: 50
Gewicht in kg: 0.5

Downloads

OSE-TARW-L_TAR-L.pdf

OSE-TAR-34403L_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 34×60
Maximum XYZ-travel [mm]: 15
Travel z-axis [± mm]: 15
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass?Bracket?Aluminum
Finish: Super black chrome?Bracket?Black anodized
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 1.4
Max. Moment Capacity / Roll [Nm]: 1.2
Moment Stiffness / Pitch [´´/Ncm]: 0.41
Squareness [µm]: 100
Gewicht in kg: 0.8

Downloads

OSE-TARW-L_TAR-L.pdf

OSE-TAR-34603L_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 34×80
Maximum XYZ-travel [mm]: 20
Travel z-axis [± mm]: +20?-10
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass?Bracket?Aluminum
Finish: Super black chrome?Bracket?Black anodized
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 1.9
Max. Moment Capacity / Roll [Nm]: 1.5
Moment Stiffness / Pitch [´´/Ncm]: 0.41
Squareness [µm]: 100
Gewicht in kg: 1.1

Downloads

OSE-TAS-4L_OSE-TAR-4L.pdf

OSE-TAR-34803L_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 38×40
Maximum XYZ-travel [mm]: 25
Travel z-axis [± mm]: +25?-20
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 1.5
Max. Moment Capacity / Roll [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 0.51
Squareness [µm]: 50
Gewicht in kg: 0.6

Downloads

OSE-TARW-L_TAR-L.pdf

OSE-TAR-38403L-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Z axis
Tabel Size [mm]: 38×40
Maximum XYZ-travel [mm]: 25
Travel z-axis [± mm]: +25?-20
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 1.5
Max. Moment Capacity / Roll [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 0.51
Squareness [µm]: 50
Gewicht in kg: 0.6

Downloads

OSE-TAS-4L_OSE-TAR-4L.pdf

OSE-TAR-38403LUU_STP.zip

ManualStages.zip

Actuators.pdf
