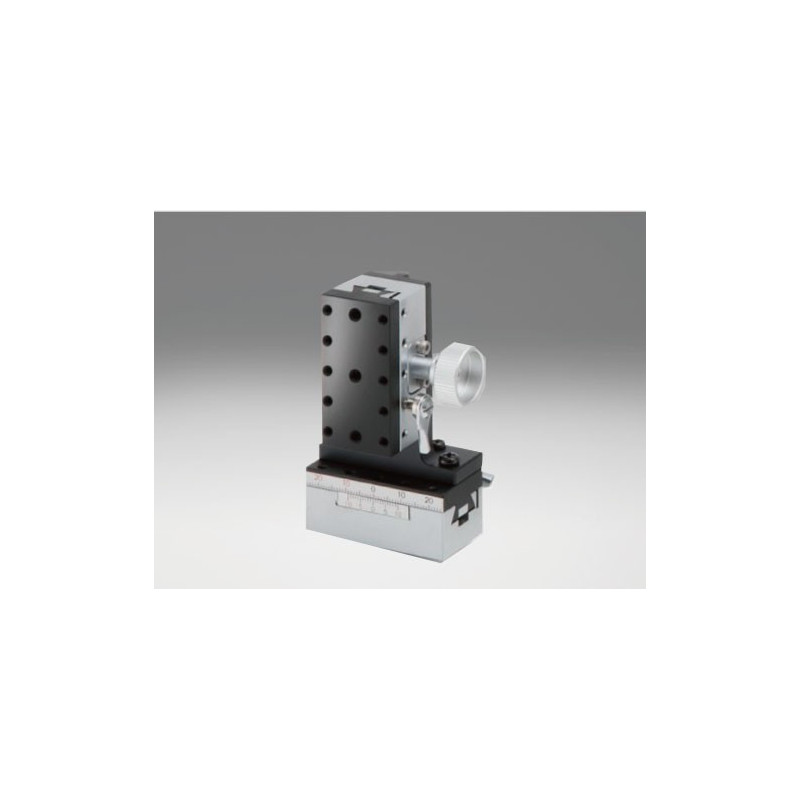

OSE-TAR-4L: XZ axis, 25 x 50 mm

Reference number: OSE-TAR-25504L

Option

Table Size in mm

Version

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: XZ axis
Tabel Size [mm]: 25×50
Maximum XYZ-travel [mm]: 10
Travel x-axis [±mm]: 10
Travel z-axis [± mm]: 10
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 9.8
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 3.98
Gewicht in kg: 0.52

Downloads

OSE-TAS-4L_OSE-TAR-4L.pdf

OSE-TAR-25504L_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 34×40
Maximum XYZ-travel [mm]: 25
Travel x-axis [±mm]: 25
Travel z-axis [± mm]: +25 -20
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 2
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: -
Gewicht in kg: 1.1

Downloads

OSE-TAS-5L_TAR-5L.pdf

OSE-TAR-34804L_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 34×40
Maximum XYZ-travel [mm]: 15
Travel x-axis [±mm]: 15
Travel z-axis [± mm]: +25 -20
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 2
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: -
Gewicht in kg: 1.2

Downloads

OSE-TAS-4L_OSE-TAR-4L.pdf

OSE-TAR-38404L-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 34×40
Maximum XYZ-travel [mm]: 15
Travel x-axis [±mm]: 15
Travel z-axis [± mm]: +25 -21
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 14.7
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.5
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: 3
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: -
Gewicht in kg: 2.2

Downloads

OSE-TAS-5L_TAR-5L.pdf

OSE-TAR-38404LUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 27
Travel x-axis [±mm]: +27 -0
Travel z-axis [± mm]: +18 -0
Lead of Actuator [mm]: Coars?about 20?Fine?about 2.5
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 24.5
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.4
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: -
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: -
Gewicht in kg: 0.83

Downloads

OSE-TAS-4L_OSE-TAR-4L.pdf

OSE-TAR-60554D_STP.zip

ManualStages.zip

Actuators.pdf

Type: XZ axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 37
Travel x-axis [±mm]: +37 -0
Travel z-axis [± mm]: +33 -0
Lead of Actuator [mm]: Coars?about 20?Fine?about 2.5
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 24.5
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 0.4
Max. Moment Capacity / Roll [Nm]: 0.5
Max. Moment Capacity / Yaw [Nm]: -
Moment Stiffness / Pitch [´´/Ncm]: -
Moment Stiffness / Roll [´´/Ncm]: -
Parallelism [µm]: -
Gewicht in kg: 0.85

Downloads

OSE-LST.pdf

OSE-TAR-60704D_STP.zip

ManualStages.zip

Actuators.pdf
