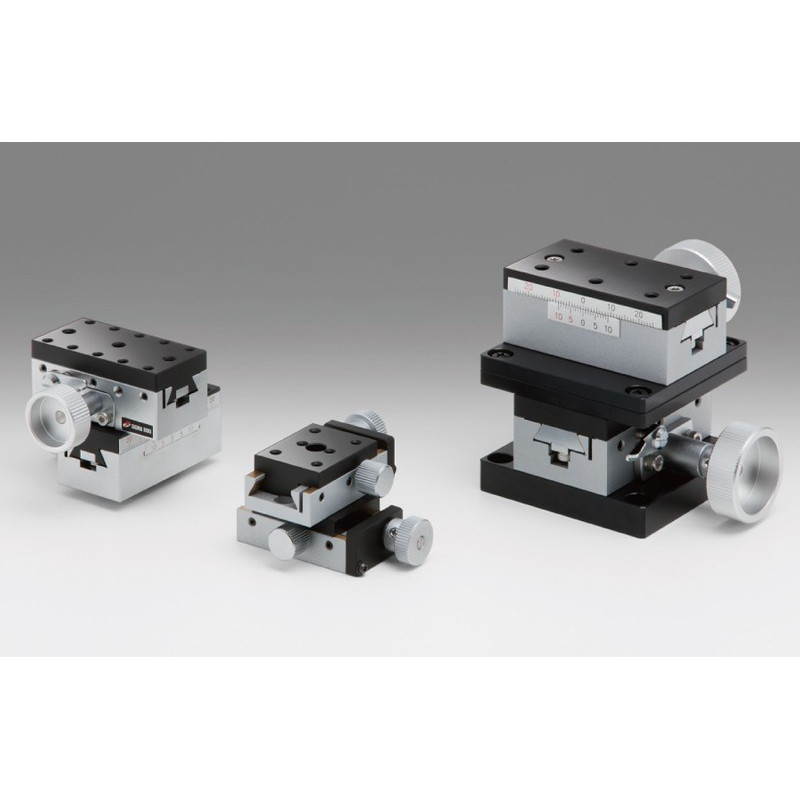

OSE-TAR-2: XY axis, 34 x 60 mm

Reference number: OSE-TAR-34602

Option

Table Size in mm

Version

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: XY axis
Tabel Size [mm]: 34×60
Maximum XYZ-travel [mm]: 15
Travel x-axis [±mm]: 15
Travel y-axis[± mm]: 15
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Screw Pitch [mm]: -
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 1.5
Max. Moment Capacity / Roll [Nm]: 1.5
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 1.2
Moment Stiffness / Roll [´´/Ncm]: 1.2
Parallelism [µm]: 140
Gewicht in kg: 1

Downloads

OSE-TARW_TAR-2.pdf

OSE-TAR-34602_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 34×80
Maximum XYZ-travel [mm]: 25
Travel x-axis [±mm]: 25
Travel y-axis[± mm]: 25
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Screw Pitch [mm]: -
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 1.5
Max. Moment Capacity / Roll [Nm]: 1.5
Max. Moment Capacity / Yaw [Nm]: 2.6
Moment Stiffness / Pitch [´´/Ncm]: 1.1
Moment Stiffness / Roll [´´/Ncm]: 1.1
Parallelism [µm]: 160
Gewicht in kg: 1.6

Downloads

OSE-TARW-L_TAR-L.pdf

OSE-TAR-34802_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 38×65
Maximum XYZ-travel [mm]: 15
Travel x-axis [±mm]: 15
Travel y-axis[± mm]: 15
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Screw Pitch [mm]: -
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 2.9
Max. Moment Capacity / Roll [Nm]: 1.5
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 0.15
Moment Stiffness / Roll [´´/Ncm]: 0.15
Parallelism [µm]: 140
Gewicht in kg: 1.2

Downloads

OSE-TARW_TAR-2.pdf

OSE-TAR-38652-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 38×65
Maximum XYZ-travel [mm]: 15
Travel x-axis [±mm]: 15
Travel y-axis[± mm]: 15
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Screw Pitch [mm]: -
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 2.9
Max. Moment Capacity / Roll [Nm]: 1.5
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 0.15
Moment Stiffness / Roll [´´/Ncm]: 0.15
Parallelism [µm]: 140
Gewicht in kg: 1.2

Downloads

OSE-TARW_TAR-2.pdf

OSE-TAR-38652UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 38×120
Maximum XYZ-travel [mm]: 40
Travel x-axis [±mm]: 40
Travel y-axis[± mm]: 15
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Screw Pitch [mm]: -
Load Capacity [N]: 245
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 1.5
Max. Moment Capacity / Yaw [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.15
Parallelism [µm]: 160
Gewicht in kg: 1.9

Downloads

OSE-TARW_TAR-2.pdf

OSE-TAR-381202-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: XY axis
Tabel Size [mm]: 38×120
Maximum XYZ-travel [mm]: 40
Travel x-axis [±mm]: 40
Travel y-axis[± mm]: 15
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 245
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 4
Max. Moment Capacity / Roll [Nm]: 1.5
Max. Moment Capacity / Yaw [Nm]: 2.5
Moment Stiffness / Pitch [´´/Ncm]: 0.3
Moment Stiffness / Roll [´´/Ncm]: 0.15
Parallelism [µm]: 160
Gewicht in kg: 1.9

Downloads

OSE-TARW-L_TAR-L.pdf

OSE-TAR-381202UU_STP.zip

ManualStages.zip

Actuators.pdf
