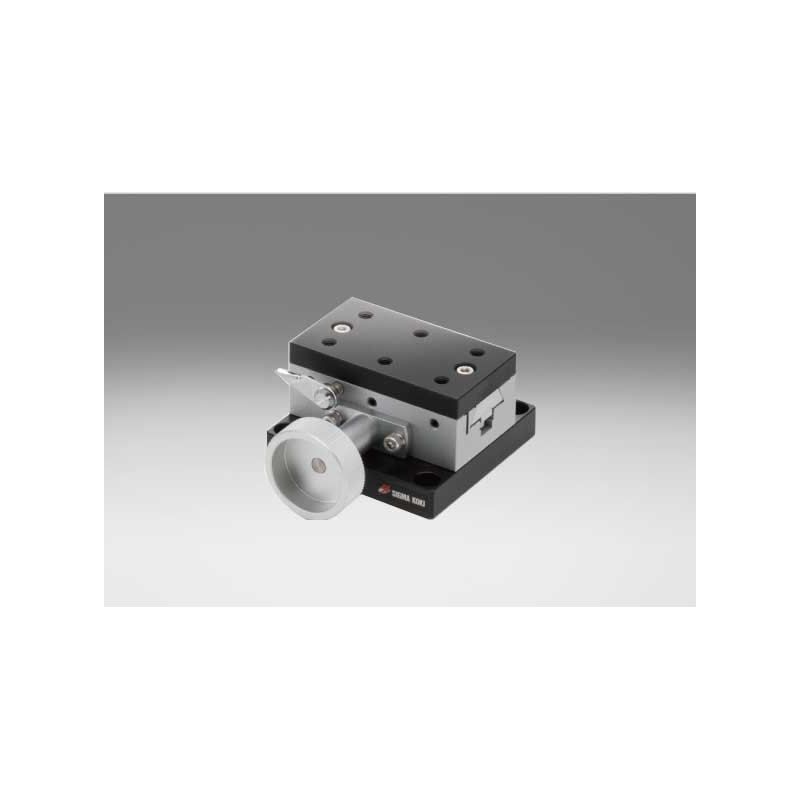

OSE-TAR-1: X axis, 34 x 60 mm

Reference number: OSE-TAR-34601

Option

Table Size in mm

Version

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: X axis
Tabel Size [mm]: 34×60
Maximum XYZ-travel [mm]: 15
Travel x-axis [±mm]: 15
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 2.9
Max. Moment Capacity / Roll [Nm]: 1.5
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 0.36
Moment Stiffness / Roll [´´/Ncm]: 0.82
Parallelism [µm]: 60
Gewicht in kg: 0.5

Downloads

OSE-TAR-1_TAR-D.pdf

OSE-TAR-34601_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 34×80
Maximum XYZ-travel [mm]: 25
Travel x-axis [±mm]: 25
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 196
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 3.8
Max. Moment Capacity / Roll [Nm]: 1.5
Max. Moment Capacity / Yaw [Nm]: 2.6
Moment Stiffness / Pitch [´´/Ncm]: 0.26
Moment Stiffness / Roll [´´/Ncm]: 0.82
Parallelism [µm]: 60
Gewicht in kg: 0.8

Downloads

OSE-TAR-1_TAR-D.pdf

OSE-TAR-34801_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 34×140
Maximum XYZ-travel [mm]: 50
Travel x-axis [±mm]: 50
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 245
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 6.9
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 3.9
Moment Stiffness / Pitch [´´/Ncm]: 0.05
Moment Stiffness / Roll [´´/Ncm]: 0.82
Parallelism [µm]: 80
Gewicht in kg: 1

Downloads

OSE-TARW_TAR-2.pdf

OSE-TAR-34141_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 38×65
Maximum XYZ-travel [mm]: 15
Travel x-axis [±mm]: 15
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 2.9
Max. Moment Capacity / Roll [Nm]: 1.5
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 0.36
Moment Stiffness / Roll [´´/Ncm]: 0.82
Parallelism [µm]: 60
Gewicht in kg: 0.6

Downloads

OSE-TAR-1_TAR-D.pdf

OSE-TAR-38651-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 38×65
Maximum XYZ-travel [mm]: 15
Travel x-axis [±mm]: 15
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 147
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 2.9
Max. Moment Capacity / Roll [Nm]: 1.5
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 0.36
Moment Stiffness / Roll [´´/Ncm]: 0.82
Parallelism [µm]: 60
Gewicht in kg: 0.6

Downloads

OSE-TAR-1_TAR-D.pdf

OSE-TAR-38651UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 38×120
Maximum XYZ-travel [mm]: 40
Travel x-axis [±mm]: 40
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 245
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 6
Max. Moment Capacity / Roll [Nm]: 1.5
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Pitch [´´/Ncm]: 0.7
Moment Stiffness / Roll [´´/Ncm]: 0.2
Parallelism [µm]: 80
Gewicht in kg: 1

Downloads

OSE-TAR-1_TAR-D.pdf

OSE-TAR-381201-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 38×120
Maximum XYZ-travel [mm]: 40
Travel x-axis [±mm]: 40
Lead of Actuator [mm]: about 20
Vernier Scale: 0.1
Bearing type: Dovetail method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 245
Travel Accuracy / Straightness [µm]: 30
Max. Moment Capacity / Pitch [Nm]: 6
Max. Moment Capacity / Roll [Nm]: 1.5
Max. Moment Capacity / Yaw [Nm]: 3
Moment Stiffness / Pitch [´´/Ncm]: 0.7
Moment Stiffness / Roll [´´/Ncm]: 0.2
Parallelism [µm]: 80
Gewicht in kg: 1

Downloads

OSE-TARW_TAR-2.pdf

OSE-TAR-381201UU_STP.zip

ManualStages.zip

Actuators.pdf
