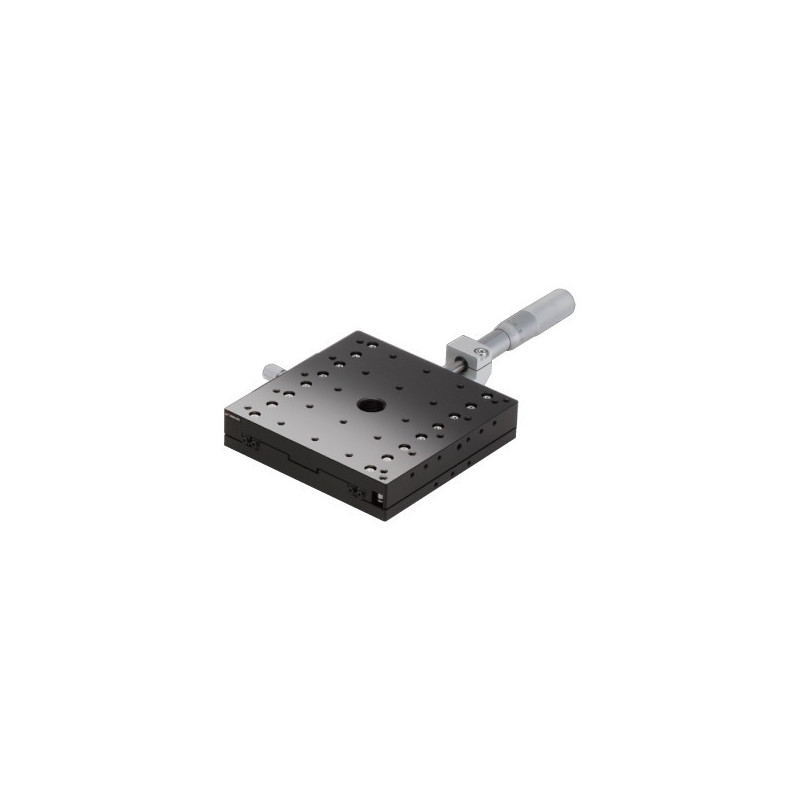

OSE-TAM-1201: X axis, 120 x 120 mm

Reference number: OSE-TAM-1201C

Option

Model

Version

Micrometer Position

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 588
Travel Accuracy / Straightness [µm]: 2
Travel Accuracy / Pitch[´´]: 40
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 40.7
Max. Moment Capacity / Roll [Nm]: 60.3
Max. Moment Capacity / Yaw [Nm]: 52
Moment Stiffness / Pitch [´´/Ncm]: 0.07
Moment Stiffness / Roll [´´/Ncm]: 0.05
Parallelism [µm]: 50
Running Parallelism: 15
Gewicht in kg: 1.3

Downloads

OSE-TAM-10161_10162.pdf

OSE-TAM-1201C_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 588
Travel Accuracy / Straightness [µm]: 2
Travel Accuracy / Pitch[´´]: 40
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 40.7
Max. Moment Capacity / Roll [Nm]: 60.3
Max. Moment Capacity / Yaw [Nm]: 52
Moment Stiffness / Pitch [´´/Ncm]: 0.07
Moment Stiffness / Roll [´´/Ncm]: 0.05
Parallelism [µm]: 50
Running Parallelism: 15
Gewicht in kg: 1.3

Downloads

OSE-TAM-10161_10162.pdf

OSE-TAM-1201S_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 588
Travel Accuracy / Straightness [µm]: 2
Travel Accuracy / Pitch[´´]: 40
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 40.7
Max. Moment Capacity / Roll [Nm]: 60.3
Max. Moment Capacity / Yaw [Nm]: 52
Moment Stiffness / Pitch [´´/Ncm]: 0.07
Moment Stiffness / Roll [´´/Ncm]: 0.05
Parallelism [µm]: 50
Running Parallelism: 15
Gewicht in kg: 1.3

Downloads

OSE-TAM-10161_10162.pdf

OSE-TAM-1201SR_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [± mm]: 20
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 588
Travel Accuracy / Straightness [µm]: 2
Travel Accuracy / Pitch [´´]: 40
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 40.7
Max. Moment Capacity / Roll [Nm]: 60.3
Max. Moment Capacity / Yaw [Nm]: 52
Moment Stiffness / Pitch [´´/Ncm]: 0.07
Moment Stiffness / Roll [´´/Ncm]: 0.05
Parallelism [µm]: 50
Running Parallelism: 15
Gewicht in kg: 1.3

Downloads

OSE-TAM-651.pdf

OSE-TAM-1201C-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 588
Travel Accuracy / Straightness [µm]: 2
Travel Accuracy / Pitch[´´]: 40
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 40.7
Max. Moment Capacity / Roll [Nm]: 60.3
Max. Moment Capacity / Yaw [Nm]: 52
Moment Stiffness / Pitch [´´/Ncm]: 0.07
Moment Stiffness / Roll [´´/Ncm]: 0.05
Parallelism [µm]: 50
Running Parallelism: 15
Gewicht in kg: 1.3

Downloads

OSE-TAM-652.pdf

OSE-TAM-1201S-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 588
Travel Accuracy / Straightness [µm]: 2
Travel Accuracy / Pitch[´´]: 40
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 40.7
Max. Moment Capacity / Roll [Nm]: 60.3
Max. Moment Capacity / Yaw [Nm]: 52
Moment Stiffness / Pitch [´´/Ncm]: 0.07
Moment Stiffness / Roll [´´/Ncm]: 0.05
Parallelism [µm]: 50
Running Parallelism: 15
Gewicht in kg: 1.3

Downloads

OSE-TAM-1201.pdf

OSE-TAM-1201SR-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Center
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 588
Travel Accuracy / Straightness [µm]: 2
Travel Accuracy / Pitch[´´]: 40
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 40.7
Max. Moment Capacity / Roll [Nm]: 60.3
Max. Moment Capacity / Yaw [Nm]: 52
Moment Stiffness / Pitch [´´/Ncm]: 0.07
Moment Stiffness / Roll [´´/Ncm]: 0.05
Parallelism [µm]: 50
Running Parallelism: 15
Gewicht in kg: 1.3

Downloads

OSE-TAM-1201.pdf

OSE-TAM-1201CUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 588
Travel Accuracy / Straightness [µm]: 2
Travel Accuracy / Pitch[´´]: 40
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 40.7
Max. Moment Capacity / Roll [Nm]: 60.3
Max. Moment Capacity / Yaw [Nm]: 52
Moment Stiffness / Pitch [´´/Ncm]: 0.07
Moment Stiffness / Roll [´´/Ncm]: 0.05
Parallelism [µm]: 50
Running Parallelism: 15
Gewicht in kg: 1.3

Downloads

OSE-TAM-1201.pdf

OSE-TAM-1201SUU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 120×120
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Micrometer Position: Side
Lead of Actuator [mm]: 0.5
Micrometer Readable Resolution [mm]: 0.01
Bearing type: Crossed roller
Primary Material: Aluminum
Finish: Black anodized
Load Capacity [N]: 588
Travel Accuracy / Straightness [µm]: 2
Travel Accuracy / Pitch[´´]: 40
Travel Accuracy / Yaw [´´]: 25
Max. Moment Capacity / Pitch [Nm]: 40.7
Max. Moment Capacity / Roll [Nm]: 60.3
Max. Moment Capacity / Yaw [Nm]: 52
Moment Stiffness / Pitch [´´/Ncm]: 0.07
Moment Stiffness / Roll [´´/Ncm]: 0.05
Parallelism [µm]: 50
Running Parallelism: 15
Gewicht in kg: 1.3

Downloads

OSE-TAM-1202.pdf

OSE-TAM-1201SRUU_STP.zip

ManualStages.zip

Actuators.pdf
