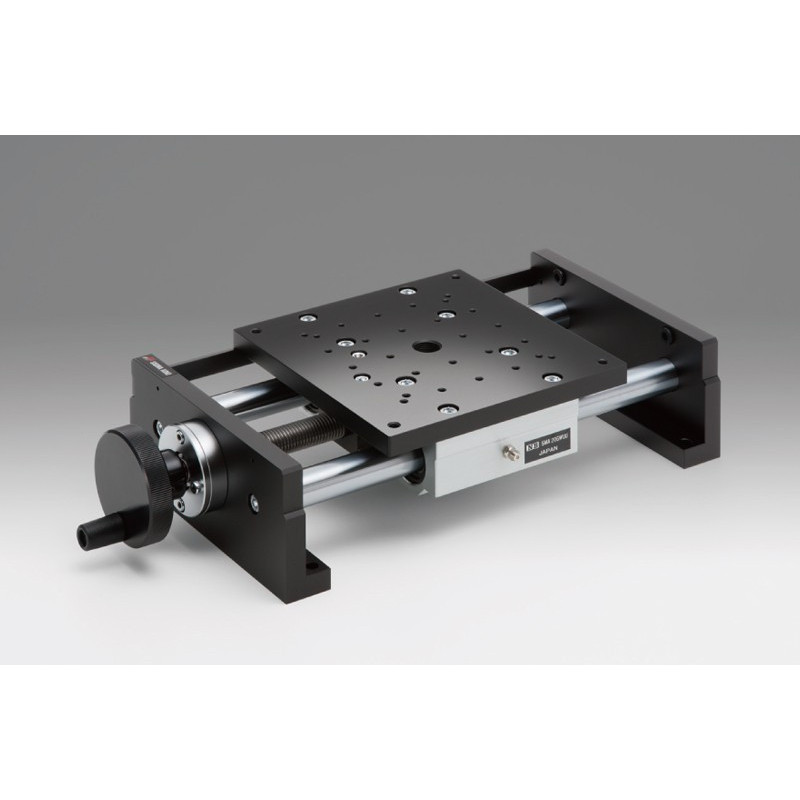

OSE-LST: X axis, 160 x 160 mm

Reference number: OSE-LST-16100

Option

Version

Travel in mm

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: X axis
Tabel Size [mm]: 160×160
Maximum XYZ-travel [mm]: 50
Travel x-axis [±mm]: 50
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 2
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 100
Gewicht in kg: 4.8

Downloads

OSE-LST.pdf

OSE-LST-16100_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×160
Maximum XYZ-travel [mm]: 100
Travel x-axis [±mm]: 100
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 2
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 150
Gewicht in kg: 5.5

Downloads

OSE-LST.pdf

OSE-LST-16200_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×161
Maximum XYZ-travel [mm]: 200
Travel x-axis [±mm]: 200
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 5
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 200
Gewicht in kg: 7

Downloads

OSE-LST.pdf

OSE-LST-16400_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×160
Maximum XYZ-travel [mm]: 50
Travel x-axis [±mm]: 50
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 2
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 100
Gewicht in kg: 4.8

Downloads

OSE-LST.pdf

OSE-LST-16100-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×160
Maximum XYZ-travel [mm]: 50
Travel x-axis [±mm]: 50
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 2
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 100
Gewicht in kg: 4.8

Downloads

OSE-LST.pdf

OSE-LST-16100UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×160
Maximum XYZ-travel [mm]: 100
Travel x-axis [±mm]: 100
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 2
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 150
Gewicht in kg: 5.5

Downloads

OSE-LST.pdf

OSE-LST-16200-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×160
Maximum XYZ-travel [mm]: 100
Travel x-axis [±mm]: 100
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 2
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 10
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 150
Gewicht in kg: 5.5

Downloads

OSE-LST.pdf

OSE-LST-16200UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×161
Maximum XYZ-travel [mm]: 200
Travel x-axis [±mm]: 200
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 5
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 200
Gewicht in kg: 7

Downloads

OSE-LST.pdf

OSE-LST-16400-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 160×161
Maximum XYZ-travel [mm]: 200
Travel x-axis [±mm]: 200
Bearing type: Linear bearing
Primary Material: Aluminum
Finish: Black anodized
Screw Pitch [mm]: 5
Load Capacity [N]: 98
Travel Accuracy / Straightness [µm]: 20
Max. Moment Capacity / Pitch [Nm]: 7.8
Max. Moment Capacity / Roll [Nm]: 5.8
Max. Moment Capacity / Yaw [Nm]: 0.25
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 200
Gewicht in kg: 7

Downloads

OSE-LSV.pdf

OSE-LST-16400UU_STP.zip

ManualStages.zip

Actuators.pdf
