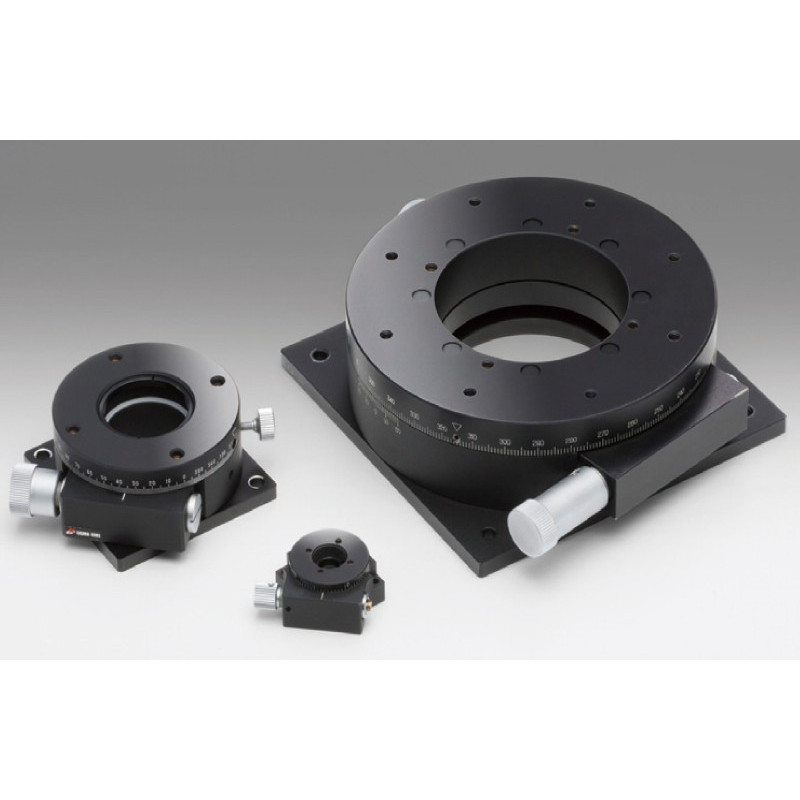

OSE-KSW: Rotation stages, Diameter25 mm

Reference number: OSE-KSW-256

Option

Table Size in mm

Version

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: Rotation stages
Tabel Size [mm]: ?25
Rotation Range [°]: Fine: 360
Scale Readable Resolution: 5°
Knob Rotation Angle[°/1 rotation]: about 8
Bearing type: Lapping method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 29.4
Max. Moment Capacity / Pitch [Nm]: 0.14
Moment Stiffness / Pitch [´´/Ncm]: 6.1
Parallelism [µm]: 30
Eccentricity [µm]: 20
Wobble [µm]: 15
Gewicht in kg: 0.07

Downloads

OSE-KSW.pdf

OSE-KSW-256_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?40
Rotation Range [°]: Fine: 360
Scale Readable Resolution: 2°
Knob Rotation Angle[°/1 rotation]: about 7.5
Bearing type: Lapping method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 49
Max. Moment Capacity / Pitch [Nm]: 0.29
Moment Stiffness / Pitch [´´/Ncm]: 1.5
Parallelism [µm]: 30
Eccentricity [µm]: 20
Wobble [µm]: 20
Gewicht in kg: 0.3

Downloads

OSE-KSW.pdf

OSE-KSW-406_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?60
Rotation Range [°]: Fine: 360
Scale Readable Resolution: 10´
Knob Rotation Angle[°/1 rotation]: about 4
Bearing type: Lapping method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 0.49
Moment Stiffness / Pitch [´´/Ncm]: 0.9
Parallelism [µm]: 50
Eccentricity [µm]: 20
Wobble [µm]: 20
Gewicht in kg: 0.55

Downloads

OSE-KSW.pdf

OSE-KSW-606_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?84
Rotation Range [°]: Fine: 360
Scale Readable Resolution: 5´
Knob Rotation Angle[°/1 rotation]: 2.05
Bearing type: Lapping method
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 78.4
Max. Moment Capacity / Pitch [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Parallelism [µm]: 70
Eccentricity [µm]: 20
Wobble [µm]: 20
Gewicht in kg: 0.62

Downloads

OSE-KSW.pdf

OSE-KSW-1006_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?120
Rotation Range [°]: Coarse: 360° Fine: 360°
Scale Readable Resolution: 5´
Knob Rotation Angle[°/1 rotation]: 1.62
Bearing type: Crossed roller
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 196
Max. Moment Capacity / Pitch [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.15
Parallelism [µm]: 60
Eccentricity [µm]: 30
Wobble [µm]: 30
Gewicht in kg: 2.2

Downloads

OSE-KSPB.pdf

OSE-KSW-1206_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?120
Rotation Range [°]: Coarse: 360° Fine: 360°
Scale Readable Resolution: 5´
Knob Rotation Angle[°/1 rotation]: 1.62
Bearing type: Crossed roller
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 196
Max. Moment Capacity / Pitch [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.15
Parallelism [µm]: 60
Eccentricity [µm]: 30
Wobble [µm]: 30
Gewicht in kg: 2.2

Downloads

OSE-KSW.pdf

OSE-KSW-1206-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?65
Rotation Range [°]: Coarse: 360° Fine: 360°
Scale Readable Resolution: 10´
Knob Rotation Angle[°/1 rotation]: 4
Bearing type: Lapping method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 0.49
Moment Stiffness / Pitch [´´/Ncm]: 0.9
Parallelism [µm]: 50
Eccentricity [µm]: 20
Wobble [µm]: 20
Gewicht in kg: 0.6

Downloads

OSE-KSW.pdf

OSE-KSW-656-M6_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?40
Rotation Range [°]: Fine: 360
Scale Readable Resolution: 2
Knob Rotation Angle[°/1 rotation]: 7.5
Bearing type: Lapping method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 49
Max. Moment Capacity / Pitch [Nm]: 0.29
Moment Stiffness / Pitch [´´/Ncm]: 1.5
Parallelism [µm]: 30
Eccentricity [µm]: 20
Wobble [µm]: 20
Gewicht in kg: 0.3

Downloads

OSE-KSW.pdf

OSE-KSW-406UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?65
Rotation Range [°]: Coarse: 360° Fine: 360°
Scale Readable Resolution: 10´
Knob Rotation Angle[°/1 rotation]: 4
Bearing type: Lapping method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 0.49
Moment Stiffness / Pitch [´´/Ncm]: 0.9
Parallelism [µm]: 50
Eccentricity [µm]: 20
Wobble [µm]: 20
Gewicht in kg: 0.6

Downloads

OSE-KSW.pdf

OSE-KSW-656UU_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?120
Rotation Range [°]: Coarse: 360° Fine: 360°
Scale Readable Resolution: 5´
Knob Rotation Angle[°/1 rotation]: 1.62
Bearing type: Crossed roller
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 196
Max. Moment Capacity / Pitch [Nm]: 9.8
Moment Stiffness / Pitch [´´/Ncm]: 0.15
Parallelism [µm]: 60
Eccentricity [µm]: 30
Wobble [µm]: 30
Gewicht in kg: 2.2

Downloads

OSE-AIS.pdf

OSE-KSW-1206UU_STP.zip

ManualStages.zip

Actuators.pdf
