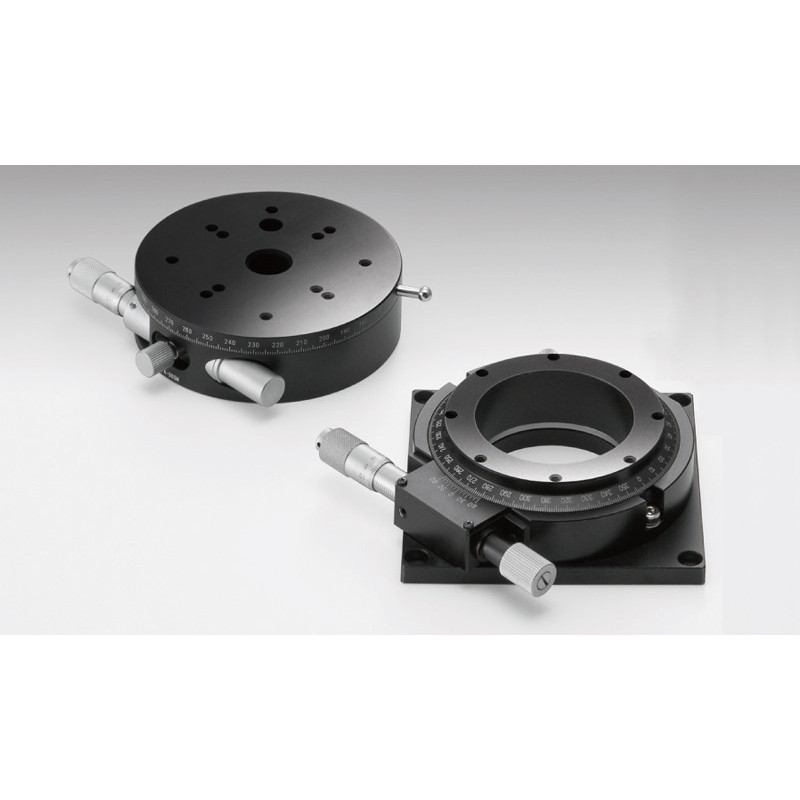

OSE-KSPA: Rotation stages, Diameter98 mm

Reference number: OSE-KSPA-986M

Table Size in mm

Load Capacity in N

Version

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: Rotation stages
Tabel Size [mm]: ?98
Rotation Range [°]: Coarse: 360 Fine: ±5
Scale Readable Resolution: 5´
Micrometer Readable Resolution [mm]: about 52.9´´
Bearing type: Lapping method
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 68.6
Max. Moment Capacity / Pitch [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 0.8
Parallelism [µm]: 50
Eccentricity [µm]: 20
Wobble [µm]: 20
Gewicht in kg: 0.7

Downloads

OSE-KSPA.pdf

OSE-KSPA-986M_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?80
Rotation Range [°]: Coarse: 360 Fine: ±5
Scale Readable Resolution: 5´
Micrometer Readable Resolution [mm]: about 1´08.8´´
Bearing type: Lapping method
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 58.8
Max. Moment Capacity / Pitch [Nm]: 1
Moment Stiffness / Pitch [´´/Ncm]: 0.8
Parallelism [µm]: 50
Eccentricity [µm]: 20
Wobble [µm]: 20
Gewicht in kg: 0.5

Downloads

OSE-KSPA-806M_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?76
Rotation Range [°]: Coarse: 360 Fine: ±3
Scale Readable Resolution: 5´
Micrometer Readable Resolution [mm]: about 42.1´´
Bearing type: Lapping method
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 68.6
Max. Moment Capacity / Pitch [Nm]: 0.98
Moment Stiffness / Pitch [´´/Ncm]: 0.2
Parallelism [µm]: 40
Eccentricity [µm]: 20
Wobble [µm]: 20
Gewicht in kg: 0.6

Downloads

OSE-KSPB.pdf

OSE-KSPA-1006MH_STP.zip

ManualStages.zip

Actuators.pdf

Type: Rotation stages
Tabel Size [mm]: ?57
Rotation Range [°]: Coarse: 360 Fine: ±5
Scale Readable Resolution: 5´
Micrometer Readable Resolution [mm]: about 51.6´´
Bearing type: Lapping method
Primary Material: Aluminium
Finish: Black anodized
Load Capacity [N]: 49
Max. Moment Capacity / Pitch [Nm]: 0.88
Moment Stiffness / Pitch [´´/Ncm]: 0.61
Parallelism [µm]: 30
Eccentricity [µm]: 20
Wobble [µm]: 20
Gewicht in kg: 0.45

Downloads

OSE-KSPB.pdf

OSE-KSPA-806MH_STP.zip

ManualStages.zip

Actuators.pdf
