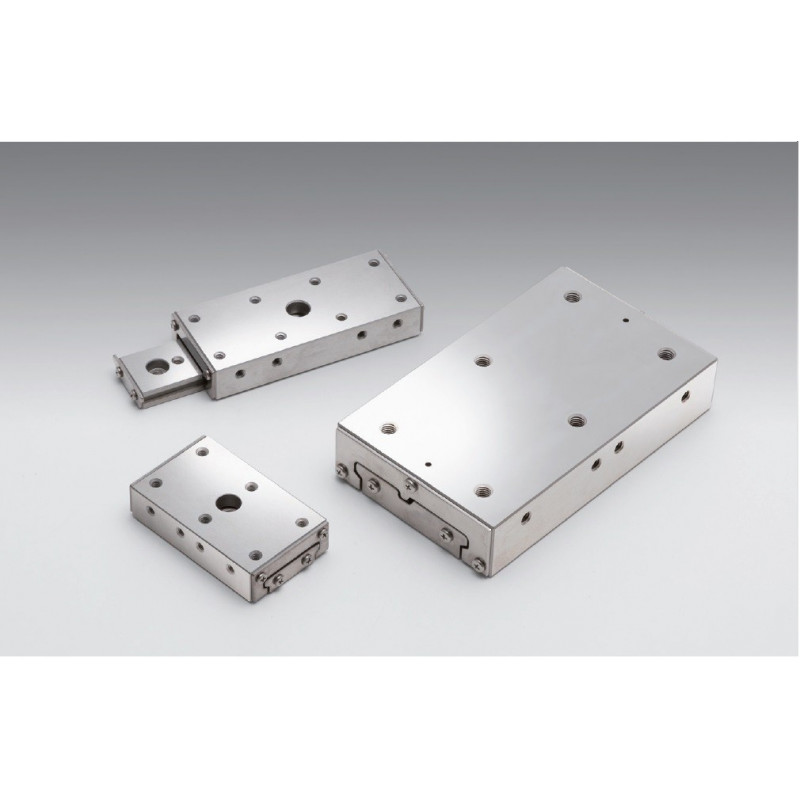

OSE-IPWS: X axis, 15 x 15 mm

Reference number: OSE-IPWS-F1515

Table Size in mm

Travel in mm

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: X axis
Tabel Size [mm]: 15×15
Maximum XYZ-travel [mm]: 3
Travel x-axis [±mm]: 3
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 0.4
Max. Moment Capacity / Roll [Nm]: 0.8
Max. Moment Capacity / Yaw [Nm]: 0.4
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.01

Downloads

OSE-IPWS.pdf

OSE-IPWS-F1515_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 15×30
Maximum XYZ-travel [mm]: 9
Travel x-axis [±mm]: 9
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 1.2
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 1.2
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.02

Downloads

OSE-IPWS.pdf

OSE-IPWS-F1530_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 15×40
Maximum XYZ-travel [mm]: 12
Travel x-axis [±mm]: 12
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 1.8
Max. Moment Capacity / Roll [Nm]: 2.8
Max. Moment Capacity / Yaw [Nm]: 1.8
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.03

Downloads

OSE-IPWS.pdf

OSE-IPWS-F1540_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 20×20
Maximum XYZ-travel [mm]: 4
Travel x-axis [±mm]: 4
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 0.7
Max. Moment Capacity / Roll [Nm]: 1.6
Max. Moment Capacity / Yaw [Nm]: 0.7
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.02

Downloads

OSE-IPWS.pdf

OSE-IPWS-F2020_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 20×40
Maximum XYZ-travel [mm]: 12
Travel x-axis [±mm]: 12
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 1.8
Max. Moment Capacity / Roll [Nm]: 2.7
Max. Moment Capacity / Yaw [Nm]: 1.8
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.04

Downloads

OSE-IPWS.pdf

OSE-IPWS-F2040_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 20×60
Maximum XYZ-travel [mm]: 18
Travel x-axis [±mm]: 18
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 3
Max. Moment Capacity / Roll [Nm]: 4.2
Max. Moment Capacity / Yaw [Nm]: 3
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.07

Downloads

OSE-IPWS.pdf

OSE-IPWS-F2060_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 30×30
Maximum XYZ-travel [mm]: 7
Travel x-axis [±mm]: 7
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 5.3
Max. Moment Capacity / Yaw [Nm]: 2
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.07

Downloads

OSE-IPWS.pdf

OSE-IPWS-F3030_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 30×50
Maximum XYZ-travel [mm]: 14
Travel x-axis [±mm]: 14
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 9.2
Max. Moment Capacity / Yaw [Nm]: 3.9
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.12

Downloads

OSE-IPWS.pdf

OSE-IPWS-F3050_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 30×70
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 5.3
Max. Moment Capacity / Roll [Nm]: 11.9
Max. Moment Capacity / Yaw [Nm]: 5.3
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.16

Downloads

OSE-IPWS.pdf

OSE-IPWS-F3070_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 30×90
Maximum XYZ-travel [mm]: 27
Travel x-axis [±mm]: 27
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 7.3
Max. Moment Capacity / Roll [Nm]: 15.9
Max. Moment Capacity / Yaw [Nm]: 7.3
Parallelism [µm]: 30
Running Parallelism: 15
Gewicht in kg: 0.21

Downloads

OSE-IPWS.pdf

OSE-IPWS-F3090_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×40
Maximum XYZ-travel [mm]: 10
Travel x-axis [±mm]: 10
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 3.9
Max. Moment Capacity / Roll [Nm]: 13.2
Max. Moment Capacity / Yaw [Nm]: 3.9
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.15

Downloads

OSE-IPWS.pdf

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×100
Maximum XYZ-travel [mm]: 30
Travel x-axis [±mm]: 30
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 11.9
Max. Moment Capacity / Roll [Nm]: 34.4
Max. Moment Capacity / Yaw [Nm]: 11.9
Parallelism [µm]: 30
Running Parallelism: 15
Gewicht in kg: 0.38

Downloads

OSE-IPWS.pdf

OSE-IPWS-F40100_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×130
Maximum XYZ-travel [mm]: 37.5
Travel x-axis [±mm]: 37.5
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 16.9
Max. Moment Capacity / Roll [Nm]: 47.7
Max. Moment Capacity / Yaw [Nm]: 16.9
Parallelism [µm]: 50
Running Parallelism: 15
Gewicht in kg: 0.5

Downloads

OSE-IPWS.pdf

OSE-IPWS-F40130_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 40×70
Maximum XYZ-travel [mm]: 20
Travel x-axis [±mm]: 20
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 7.9
Max. Moment Capacity / Roll [Nm]: 23.9
Max. Moment Capacity / Yaw [Nm]: 7.9
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.26

Downloads

OSE-IPWS.pdf

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 60×60
Maximum XYZ-travel [mm]: 13
Travel x-axis [±mm]: 13
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 17.7
Max. Moment Capacity / Roll [Nm]: 59.7
Max. Moment Capacity / Yaw [Nm]: 17.7
Parallelism [µm]: 30
Running Parallelism: 10
Gewicht in kg: 0.47

Downloads

OSE-IPWS.pdf

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 60×100
Maximum XYZ-travel [mm]: 30
Travel x-axis [±mm]: 30
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 28.3
Max. Moment Capacity / Roll [Nm]: 89.5
Max. Moment Capacity / Yaw [Nm]: 28.3
Parallelism [µm]: 30
Running Parallelism: 15
Gewicht in kg: 0.78

Downloads

OSE-IPWS.pdf

OSE-IPWS-F60100_STP.zip

ManualStages.zip

Actuators.pdf

Type: X axis
Tabel Size [mm]: 60×140
Maximum XYZ-travel [mm]: 40
Travel x-axis [±mm]: 40
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: None
Max. Moment Capacity / Pitch [Nm]: 42.5
Max. Moment Capacity / Roll [Nm]: 129
Max. Moment Capacity / Yaw [Nm]: 42.5
Parallelism [µm]: 50
Running Parallelism: 15
Gewicht in kg: 1.1

Downloads

OSE-TSD-SZ.pdf

OSE-IPWS-F60140_STP.zip

ManualStages.zip

Actuators.pdf
