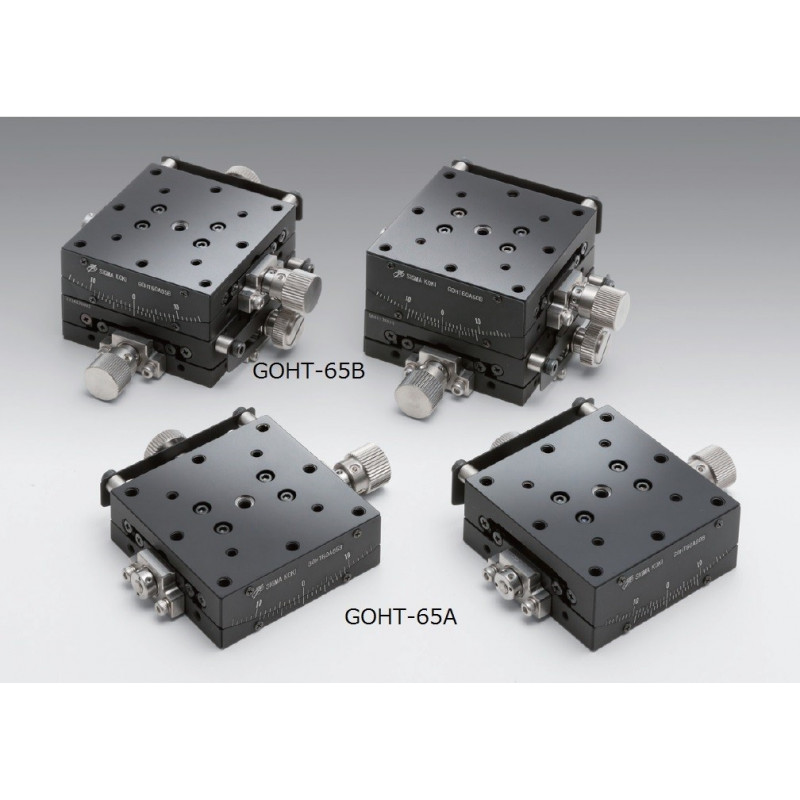

OSE-GOHT-65B: Goniometers, 65 x 65 mm

Reference number: OSE-GOHT-65B50B-M6

Model

Version

Rotation Center Height in mm

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: Goniometers
Tabel Size [mm]: 65×65
Rotation Center Height [mm]: 50±0.2
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±15
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.22
Travel per Knob Rotation Beta axis : about 1.70
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 98
Max. Moment Capacity / Pitch [Nm]: 3.5
Max. Moment Capacity / Roll [Nm]: 3.5
Max. Moment Capacity / Yaw [Nm]: 3.5
Moment Stiffness / Roll [´´/Ncm]: -
Moment Stiffness / Yaw [´´/Ncm]: -
Parallelism [µm]: 30
Gewicht in kg: 1.5
