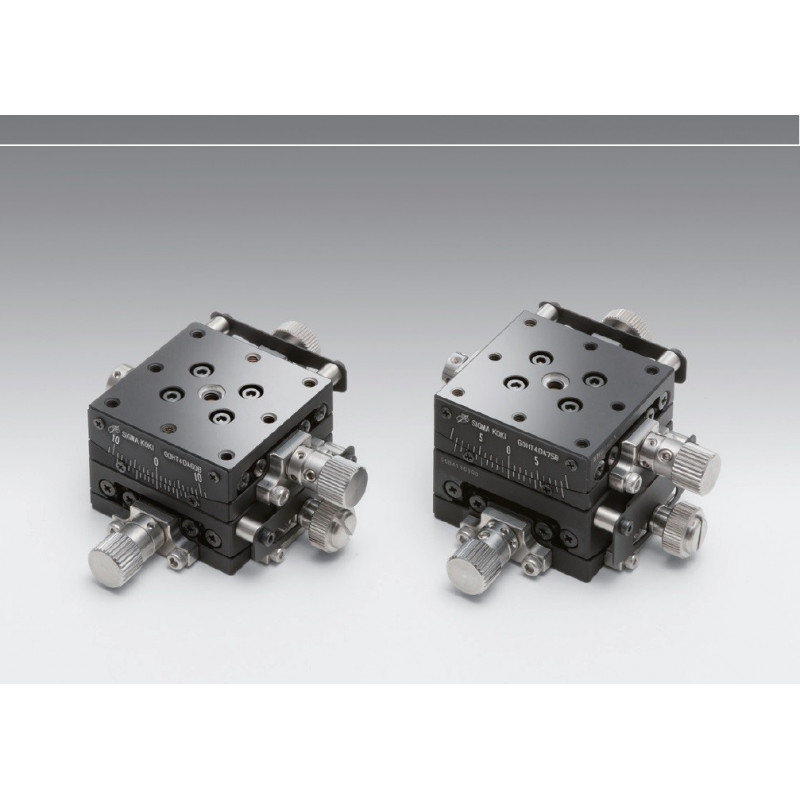

OSE-GOHT-40B: Goniometers, 40 x 40 mm

Reference number: OSE-GOHT-40B20B

Model

Version

Rotation Center Height in mm

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 20±0.2
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.41
Travel per Knob Rotation Beta axis : about 2.31
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 58.8
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Parallelism [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-GOHT-40B.pdf

OSE-GOHT-40B20B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 40±0.2
Angle Range(Upper) Beta axis [ ° ]: ±10
Angle Range (Lower) Alpha axis [ ° ] : ±8
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.08
Travel per Knob Rotation Beta axis : about 1.41
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 58.8
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Parallelism [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-GOHT-40B.pdf

OSE-GOHT-40B40B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 60±0.2
Angle Range(Upper) Beta axis [ ° ]: ±8
Angle Range (Lower) Alpha axis [ ° ] : ±6
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 0.89
Travel per Knob Rotation Beta axis : about 1.08
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 58.8
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Parallelism [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-GOHT-40B60B_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 20±0.2
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.41
Travel per Knob Rotation Beta axis : about 2.31
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 58.8
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Parallelism [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-GOHT-40B.pdf

OSE-GOHT-40B20BR_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 40±0.2
Angle Range(Upper) Beta axis [ ° ]: ±10
Angle Range (Lower) Alpha axis [ ° ] : ±8
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.08
Travel per Knob Rotation Beta axis : about 1.41
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 58.8
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Parallelism [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-GOHT-40B.pdf

OSE-GOHT-40B40BR_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 60±0.2
Angle Range(Upper) Beta axis [ ° ]: ±8
Angle Range (Lower) Alpha axis [ ° ] : ±6
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 0.89
Travel per Knob Rotation Beta axis : about 1.08
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 58.8
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Parallelism [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-GOHT-40B60BR_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 20±0.2
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.41
Travel per Knob Rotation Beta axis : about 2.31
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 58.8
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Parallelism [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-GOHT-40B.pdf

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 20±0.2
Angle Range(Upper) Beta axis [ ° ]: ±20
Angle Range (Lower) Alpha axis [ ° ] : ±10
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.41
Travel per Knob Rotation Beta axis : about 2.31
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 58.8
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Parallelism [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-GOHT-40B.pdf

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 40±0.2
Angle Range(Upper) Beta axis [ ° ]: ±10
Angle Range (Lower) Alpha axis [ ° ] : ±8
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.08
Travel per Knob Rotation Beta axis : about 1.41
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 58.8
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Parallelism [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-GOHT-40B.pdf

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 40±0.2
Angle Range(Upper) Beta axis [ ° ]: ±10
Angle Range (Lower) Alpha axis [ ° ] : ±8
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 1.08
Travel per Knob Rotation Beta axis : about 1.41
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 58.8
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Parallelism [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-GOHT-40B.pdf

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 60±0.2
Angle Range(Upper) Beta axis [ ° ]: ±8
Angle Range (Lower) Alpha axis [ ° ] : ±6
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 0.89
Travel per Knob Rotation Beta axis : about 1.08
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 58.8
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Parallelism [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-GOHT-40B.pdf

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 60±0.2
Angle Range(Upper) Beta axis [ ° ]: ±8
Angle Range (Lower) Alpha axis [ ° ] : ±6
Vernier Readable Resolution: 0.1
Travel per Knob Rotation Alpha axis : about 0.89
Travel per Knob Rotation Beta axis : about 1.08
Rotation Center Displacement [mm]: ?0.007 or less
Bearing type: Extended contact ball guide
Primary Material: SUS440C quench hardened
Finish: Super black chrome
Load Capacity [N]: 58.8
Max. Moment Capacity / Pitch [Nm]: 2
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Parallelism [µm]: 30
Gewicht in kg: 0.4

Downloads

OSE-GOHT-65A_GOHT-65B.pdf

ManualStages.zip

Actuators.pdf
