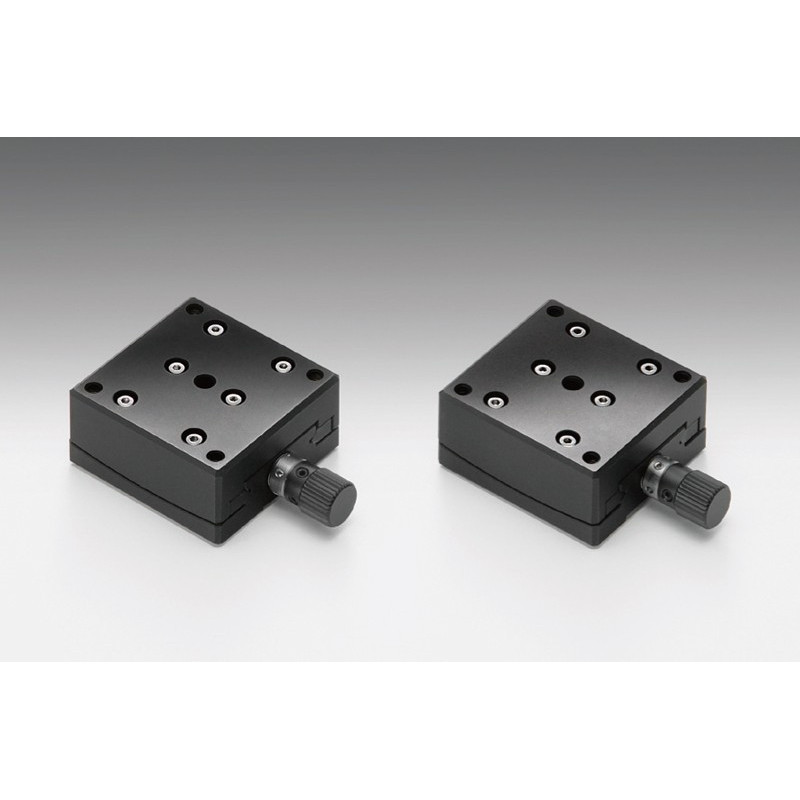

OSE-GOHB-40A: Goniometers, 40 x 40 mm

Reference number: OSE-GOHB-40A40

Need more info?
Contact our expert.

Our Team

Description

Those products may also interest you

Piezo assisted X axis, X: 12.5mm, Delta: 3µm,...

OSE-TADC-651SR25UUPA

€708.20
OSE-GOH-65A: Goniometers, 65 x 65 mm

OSE-GOH-65A

€496.20
OSE-AIS: Rotation stages, 25 x 25 mm

OSE-AIS

€71.40
OSE-GOH-15A10: Goniometers, 15 x 15 mm

OSE-GOH-15A10

€234.50
OSE-GOH-25A/25B: Goniometers, 25 x 25 mm

OSE-GOH-25A/25B

€253.40

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 40±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±8
Travel per Knob Rotation [°] : about 0.54
Rotation Center Displacement [mm]: ?0.05 or less
Bearing type: V groove method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 39.2
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Moment Stiffness / Roll [´´/Ncm]: 0.4
Moment Stiffness / Yaw [´´/Ncm]: 0.35
Gewicht in kg: 0.25

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOHB-40A40_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 60±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±6
Travel per Knob Rotation [°] : about 0.39
Rotation Center Displacement [mm]: ?0.05 or less
Bearing type: V groove method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 39.2
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Moment Stiffness / Roll [´´/Ncm]: 0.4
Moment Stiffness / Yaw [´´/Ncm]: 0.35
Gewicht in kg: 0.25

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOHB-40A60_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 100±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±4
Travel per Knob Rotation [°] : about 0.25
Rotation Center Displacement [mm]: ?0.05 or less
Bearing type: V groove method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 39.2
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Moment Stiffness / Roll [´´/Ncm]: 0.4
Moment Stiffness / Yaw [´´/Ncm]: 0.35
Gewicht in kg: 0.25

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOHB-40A100_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 120±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±3
Travel per Knob Rotation [°] : about 0.22
Rotation Center Displacement [mm]: ?0.05 or less
Bearing type: V groove method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 39.2
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Moment Stiffness / Roll [´´/Ncm]: 0.4
Moment Stiffness / Yaw [´´/Ncm]: 0.35
Gewicht in kg: 0.25

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOHB-40A120_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 40±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±8
Travel per Knob Rotation [°] : about 0.54
Rotation Center Displacement [mm]: ?0.05 or less
Bearing type: V groove method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 39.2
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Moment Stiffness / Roll [´´/Ncm]: 0.4
Moment Stiffness / Yaw [´´/Ncm]: 0.35
Gewicht in kg: 0.25

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOHB-40A40R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 60±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±6
Travel per Knob Rotation [°] : about 0.39
Rotation Center Displacement [mm]: ?0.05 or less
Bearing type: V groove method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 39.2
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Moment Stiffness / Roll [´´/Ncm]: 0.4
Moment Stiffness / Yaw [´´/Ncm]: 0.35
Gewicht in kg: 0.25

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOHB-40A60R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 100±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±4
Travel per Knob Rotation [°] : about 0.25
Rotation Center Displacement [mm]: ?0.05 or less
Bearing type: V groove method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 39.2
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Moment Stiffness / Roll [´´/Ncm]: 0.4
Moment Stiffness / Yaw [´´/Ncm]: 0.35
Gewicht in kg: 0.25

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOHB-40A100R_STP.zip

ManualStages.zip

Actuators.pdf

Type: Goniometers
Tabel Size [mm]: 40×40
Rotation Center Height [mm]: 120±0.1
Angle Range (Lower) Alpha axis [ ° ] : ±3
Travel per Knob Rotation [°] : about 0.22
Rotation Center Displacement [mm]: ?0.05 or less
Bearing type: V groove method
Primary Material: Brass
Finish: Super black chrome
Load Capacity [N]: 39.2
Max. Moment Capacity / Pitch [Nm]: 1
Max. Moment Capacity / Roll [Nm]: 2
Max. Moment Capacity / Yaw [Nm]: 2
Moment Stiffness / Pitch [´´/Ncm]: 0.5
Moment Stiffness / Roll [´´/Ncm]: 0.4
Moment Stiffness / Yaw [´´/Ncm]: 0.35
Gewicht in kg: 0.25

Downloads

OSE-GOH-60A_GOH-60B.pdf

OSE-GOHB-40A120R_STP.zip

ManualStages.zip

Actuators.pdf
