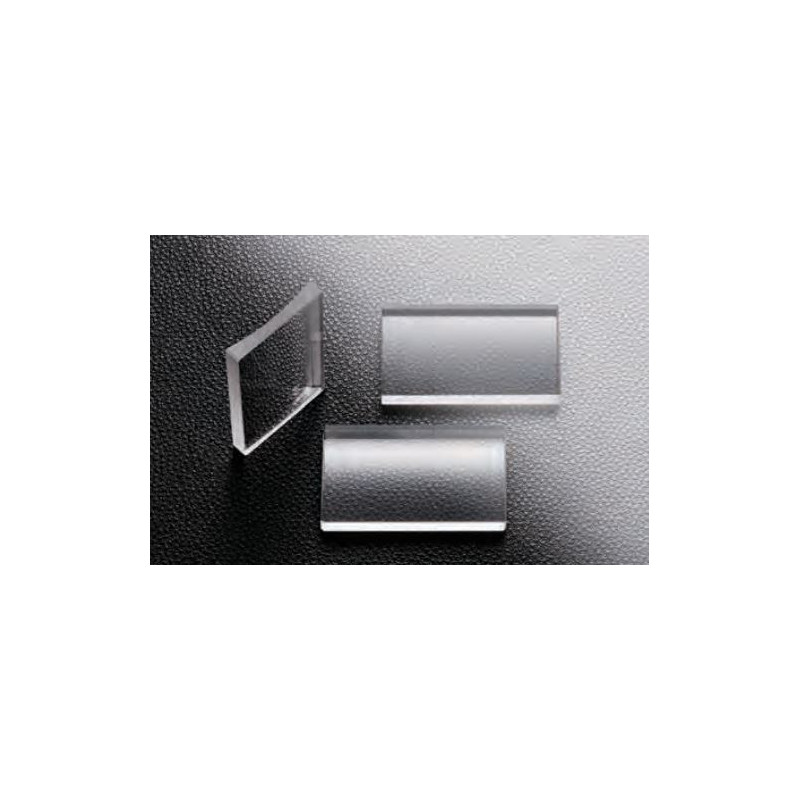

Planoconcave Cyindrical Lens, Uncoated, SiO2
Reference number: OSE-CLSQ-1010-15N
Need more info?
Contact our expert.
Our Team
Write your question
check_circle Question sent
Your question has been sent!
error Your question cannot be sent!
Description
The cylindrical plano-concave lens has a concave curvature in vertical direction and no curvature in horizontal direction. In combination with a plano-convex cylindrical lens, an elliptically shaped beam can be formed into a circular beam for use in semiconductor and other laser applications.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -15
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 1.9
- Back focal length fb [mm]: -16.3
- Curvature radius r [mm]: 6.9
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -20
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 1.5
- Back focal length fb [mm]: -21
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -25
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 1.9
- Back focal length fb [mm]: -26.3
- Curvature radius r [mm]: 11.5
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -30
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: -31.4
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -40
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: -41.6
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -15
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 1.9
- Back focal length fb [mm]: -16.3
- Curvature radius r [mm]: 6.9
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -20
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 1.5
- Back focal length fb [mm]: -21
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -25
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 1.9
- Back focal length fb [mm]: -26.3
- Curvature radius r [mm]: 11.5
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -30
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: -31.4
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -40
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: -41.6
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -20
- Edge thickness te [mm]: 6
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: -21.5
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -25
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 2.2
- Back focal length fb [mm]: -26.5
- Curvature radius r [mm]: 11.5
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -30
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 1.8
- Back focal length fb [mm]: -31.2
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -40
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 2.4
- Back focal length fb [mm]: -41.6
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -20
- Edge thickness te [mm]: 6
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: -21.5
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -25
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 2.2
- Back focal length fb [mm]: -26.5
- Curvature radius r [mm]: 11.5
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -30
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 1.8
- Back focal length fb [mm]: -31.2
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -40
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 2.4
- Back focal length fb [mm]: -41.6
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -25
- Edge thickness te [mm]: 7
- Center thickness tc [mm]: 1.2
- Back focal length fb [mm]: -25.8
- Curvature radius r [mm]: 11.5
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -30
- Edge thickness te [mm]: 6
- Center thickness tc [mm]: 1.7
- Back focal length fb [mm]: -31.2
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -40
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -41.4
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -50
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 1.7
- Back focal length fb [mm]: -51.2
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -60
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: -61.5
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -70
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 2.4
- Back focal length fb [mm]: -71.6
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -80
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 2.6
- Back focal length fb [mm]: -81.8
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -100
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 2.9
- Back focal length fb [mm]: -102
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -130
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 3.2
- Back focal length fb [mm]: -132.2
- Curvature radius r [mm]: 59.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -150
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 3.3
- Back focal length fb [mm]: -152.2
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -200
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 3.5
- Back focal length fb [mm]: -202.4
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -250
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 3.6
- Back focal length fb [mm]: -252.4
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -300
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 3.6
- Back focal length fb [mm]: -302.5
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -25
- Edge thickness te [mm]: 7
- Center thickness tc [mm]: 1.2
- Back focal length fb [mm]: -25.8
- Curvature radius r [mm]: 11.5
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -30
- Edge thickness te [mm]: 6
- Center thickness tc [mm]: 1.7
- Back focal length fb [mm]: -31.2
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -40
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: -41.4
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -50
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 1.7
- Back focal length fb [mm]: -51.2
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -60
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: -61.5
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -70
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 2.4
- Back focal length fb [mm]: -71.6
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -80
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 2.6
- Back focal length fb [mm]: -81.8
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -100
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 2.9
- Back focal length fb [mm]: -102
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -130
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 3.2
- Back focal length fb [mm]: -132.2
- Curvature radius r [mm]: 59.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -150
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 3.3
- Back focal length fb [mm]: -152.2
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -200
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 3.5
- Back focal length fb [mm]: -202.4
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -250
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 3.6
- Back focal length fb [mm]: -252.4
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -300
- Edge thickness te [mm]: 4
- Center thickness tc [mm]: 3.6
- Back focal length fb [mm]: -302.5
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -50
- Edge thickness te [mm]: 7
- Center thickness tc [mm]: 1.4
- Back focal length fb [mm]: -51
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -60
- Edge thickness te [mm]: 6
- Center thickness tc [mm]: 1.6
- Back focal length fb [mm]: -61.1
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -70
- Edge thickness te [mm]: 6
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: -71.6
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -80
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 1.8
- Back focal length fb [mm]: -81.2
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -100
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 2.5
- Back focal length fb [mm]: -101.7
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -130
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 3.1
- Back focal length fb [mm]: -132.1
- Curvature radius r [mm]: 59.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -150
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 3.3
- Back focal length fb [mm]: -152.3
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -200
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 3.8
- Back focal length fb [mm]: -202.6
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -250
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 4
- Back focal length fb [mm]: -252.8
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -300
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 4.2
- Back focal length fb [mm]: -302.9
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -50
- Edge thickness te [mm]: 7
- Center thickness tc [mm]: 1.4
- Back focal length fb [mm]: -51
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -60
- Edge thickness te [mm]: 6
- Center thickness tc [mm]: 1.6
- Back focal length fb [mm]: -61.1
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -70
- Edge thickness te [mm]: 6
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: -71.6
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -80
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 1.8
- Back focal length fb [mm]: -81.2
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -100
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 2.5
- Back focal length fb [mm]: -101.7
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -130
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 3.1
- Back focal length fb [mm]: -132.1
- Curvature radius r [mm]: 59.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -150
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 3.3
- Back focal length fb [mm]: -152.3
- Curvature radius r [mm]: 69
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -200
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 3.8
- Back focal length fb [mm]: -202.6
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -250
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 4
- Back focal length fb [mm]: -252.8
- Curvature radius r [mm]: 115
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Plano Concave Cylindrical Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: rectangular
- Diameter D [mm]: NV
- Focal length f [mm]: -300
- Edge thickness te [mm]: 5
- Center thickness tc [mm]: 4.2
- Back focal length fb [mm]: -302.9
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
