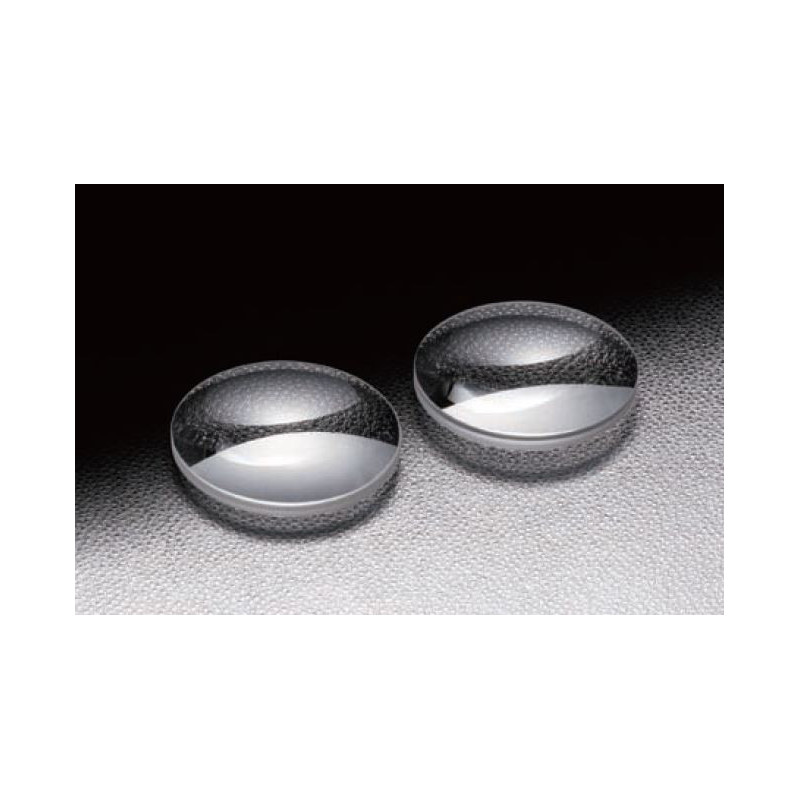

Biconvex Lens, Uncoated, SiO2
Reference number: OSE-SLSQ-05B-06P
Need more info?
Contact our expert.
Our Team
Write your question
check_circle Question sent
Your question has been sent!
error Your question cannot be sent!
Description
Symmetrical biconvex lenses are most useful when the conjugate points are finite. This makes them ideal for 1:1 imaging applications or for use in multi-element systems.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Shape: round
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø5
- Focal length f [mm]: 6.5
- Edge thickness te [mm]: 1.6
- Center thickness tc [mm]: 2.8
- Back focal length fb [mm]: 5.5
- Curvature radius r [mm]: 5.52
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø5
- Focal length f [mm]: 8.4
- Edge thickness te [mm]: 1.4
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: 7.6
- Curvature radius r [mm]: 7.36
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø5
- Focal length f [mm]: 10.4
- Edge thickness te [mm]: 1.3
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: 9.6
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø5
- Focal length f [mm]: 12.3
- Edge thickness te [mm]: 1.3
- Center thickness tc [mm]: 1.8
- Back focal length fb [mm]: 11.7
- Curvature radius r [mm]: 11.04
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø5
- Focal length f [mm]: 15.3
- Edge thickness te [mm]: 1.2
- Center thickness tc [mm]: 1.7
- Back focal length fb [mm]: 14.7
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø5
- Focal length f [mm]: 20.3
- Edge thickness te [mm]: 1.2
- Center thickness tc [mm]: 1.5
- Back focal length fb [mm]: 19.7
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø5
- Focal length f [mm]: 25.2
- Edge thickness te [mm]: 1.1
- Center thickness tc [mm]: 1.4
- Back focal length fb [mm]: 24.8
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø5
- Focal length f [mm]: 30.2
- Edge thickness te [mm]: 1.1
- Center thickness tc [mm]: 1.3
- Back focal length fb [mm]: 29.8
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø6
- Focal length f [mm]: 6.5
- Edge thickness te [mm]: 1
- Center thickness tc [mm]: 2.8
- Back focal length fb [mm]: 5.5
- Curvature radius r [mm]: 5.52
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø6
- Focal length f [mm]: 8.4
- Edge thickness te [mm]: 1
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: 7.6
- Curvature radius r [mm]: 7.36
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø6
- Focal length f [mm]: 10.4
- Edge thickness te [mm]: 1
- Center thickness tc [mm]: 2
- Back focal length fb [mm]: 9.6
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø6
- Focal length f [mm]: 12.3
- Edge thickness te [mm]: 1
- Center thickness tc [mm]: 1.8
- Back focal length fb [mm]: 11.7
- Curvature radius r [mm]: 11.04
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø6
- Focal length f [mm]: 15.3
- Edge thickness te [mm]: 1
- Center thickness tc [mm]: 1.7
- Back focal length fb [mm]: 14.7
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø6
- Focal length f [mm]: 20.3
- Edge thickness te [mm]: 1
- Center thickness tc [mm]: 1.5
- Back focal length fb [mm]: 19.7
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø6
- Focal length f [mm]: 25.2
- Edge thickness te [mm]: 1
- Center thickness tc [mm]: 1.4
- Back focal length fb [mm]: 24.8
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø6
- Focal length f [mm]: 30.2
- Edge thickness te [mm]: 1
- Center thickness tc [mm]: 1.3
- Back focal length fb [mm]: 29.8
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 8.7
- Edge thickness te [mm]: 2.1
- Center thickness tc [mm]: 3.9
- Back focal length fb [mm]: 7.3
- Curvature radius r [mm]: 7.36
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 10.6
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 3.3
- Back focal length fb [mm]: 9.4
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 12.5
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: 11.5
- Curvature radius r [mm]: 11.04
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 15.5
- Edge thickness te [mm]: 1.8
- Center thickness tc [mm]: 2.7
- Back focal length fb [mm]: 14.5
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 20.4
- Edge thickness te [mm]: 1.7
- Center thickness tc [mm]: 2.4
- Back focal length fb [mm]: 19.6
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 25.4
- Edge thickness te [mm]: 1.7
- Center thickness tc [mm]: 2.2
- Back focal length fb [mm]: 24.6
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 30.4
- Edge thickness te [mm]: 1.6
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: 29.6
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 40.3
- Edge thickness te [mm]: 1.6
- Center thickness tc [mm]: 1.9
- Back focal length fb [mm]: 39.7
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø7
- Focal length f [mm]: 50.3
- Edge thickness te [mm]: 1.6
- Center thickness tc [mm]: 1.8
- Back focal length fb [mm]: 49.7
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø8
- Focal length f [mm]: 8.7
- Edge thickness te [mm]: 1.5
- Center thickness tc [mm]: 3.9
- Back focal length fb [mm]: 7.3
- Curvature radius r [mm]: 7.36
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø8
- Focal length f [mm]: 10.6
- Edge thickness te [mm]: 1.5
- Center thickness tc [mm]: 3.3
- Back focal length fb [mm]: 9.4
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø8
- Focal length f [mm]: 12.5
- Edge thickness te [mm]: 1.5
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: 11.5
- Curvature radius r [mm]: 11.04
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø8
- Focal length f [mm]: 15.5
- Edge thickness te [mm]: 1.5
- Center thickness tc [mm]: 2.7
- Back focal length fb [mm]: 14.5
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø8
- Focal length f [mm]: 20.4
- Edge thickness te [mm]: 1.5
- Center thickness tc [mm]: 2.4
- Back focal length fb [mm]: 19.6
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø8
- Focal length f [mm]: 25.4
- Edge thickness te [mm]: 1.5
- Center thickness tc [mm]: 2.2
- Back focal length fb [mm]: 24.6
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø8
- Focal length f [mm]: 30.4
- Edge thickness te [mm]: 1.5
- Center thickness tc [mm]: 2.1
- Back focal length fb [mm]: 29.6
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø8
- Focal length f [mm]: 40.3
- Edge thickness te [mm]: 1.5
- Center thickness tc [mm]: 1.9
- Back focal length fb [mm]: 39.7
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø8
- Focal length f [mm]: 50.3
- Edge thickness te [mm]: 1.5
- Center thickness tc [mm]: 1.8
- Back focal length fb [mm]: 49.7
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 10.9
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 5
- Back focal length fb [mm]: 9.1
- Curvature radius r [mm]: 9.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 15.7
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.9
- Back focal length fb [mm]: 14.3
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 20.6
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.4
- Back focal length fb [mm]: 19.4
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 25.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.1
- Back focal length fb [mm]: 24.5
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 30.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.9
- Back focal length fb [mm]: 29.5
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 40.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.7
- Back focal length fb [mm]: 39.5
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 50.4
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.5
- Back focal length fb [mm]: 49.6
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 60.4
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.5
- Back focal length fb [mm]: 59.6
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 70.4
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.4
- Back focal length fb [mm]: 69.6
- Curvature radius r [mm]: 64.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 80.4
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: 79.6
- Curvature radius r [mm]: 73.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 90.4
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: 89.6
- Curvature radius r [mm]: 82.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø10
- Focal length f [mm]: 100.4
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.3
- Back focal length fb [mm]: 99.6
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 16.2
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 6.4
- Back focal length fb [mm]: 13.8
- Curvature radius r [mm]: 13.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 20.9
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 5.2
- Back focal length fb [mm]: 19.1
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 25.8
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.5
- Back focal length fb [mm]: 24.2
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 30.7
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.1
- Back focal length fb [mm]: 29.3
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 40.6
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.5
- Back focal length fb [mm]: 39.4
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 50.6
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.2
- Back focal length fb [mm]: 49.4
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 60.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: 59.5
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 70.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.9
- Back focal length fb [mm]: 69.5
- Curvature radius r [mm]: 64.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 80.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.8
- Back focal length fb [mm]: 79.5
- Curvature radius r [mm]: 73.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 90.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.7
- Back focal length fb [mm]: 89.5
- Curvature radius r [mm]: 82.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø15
- Focal length f [mm]: 100.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.6
- Back focal length fb [mm]: 99.6
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 21.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 7.9
- Back focal length fb [mm]: 18.5
- Curvature radius r [mm]: 18.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 26.2
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 6.6
- Back focal length fb [mm]: 23.8
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 31
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 5.8
- Back focal length fb [mm]: 29
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 40.8
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.8
- Back focal length fb [mm]: 39.2
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 50.7
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.2
- Back focal length fb [mm]: 49.3
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 60.7
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.8
- Back focal length fb [mm]: 59.3
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 70.6
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.6
- Back focal length fb [mm]: 69.4
- Curvature radius r [mm]: 64.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 80.6
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.4
- Back focal length fb [mm]: 79.4
- Curvature radius r [mm]: 73.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 90.6
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.2
- Back focal length fb [mm]: 89.4
- Curvature radius r [mm]: 82.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 100.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.1
- Back focal length fb [mm]: 99.5
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 120.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.9
- Back focal length fb [mm]: 119.5
- Curvature radius r [mm]: 110.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø20
- Focal length f [mm]: 150.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.7
- Back focal length fb [mm]: 149.5
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 26.7
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 9.4
- Back focal length fb [mm]: 23.3
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 31.4
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 8
- Back focal length fb [mm]: 28.6
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 36.3
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 7.1
- Back focal length fb [mm]: 33.7
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 41.1
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 6.4
- Back focal length fb [mm]: 38.9
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 51
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 5.5
- Back focal length fb [mm]: 49
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 60.8
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.9
- Back focal length fb [mm]: 59.2
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 70.8
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.5
- Back focal length fb [mm]: 69.2
- Curvature radius r [mm]: 64.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 80.7
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.1
- Back focal length fb [mm]: 79.3
- Curvature radius r [mm]: 73.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 90.7
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.9
- Back focal length fb [mm]: 89.3
- Curvature radius r [mm]: 82.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 100.6
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.7
- Back focal length fb [mm]: 99.4
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 120.6
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.4
- Back focal length fb [mm]: 119.4
- Curvature radius r [mm]: 110.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 150.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.1
- Back focal length fb [mm]: 149.5
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 170.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: 169.5
- Curvature radius r [mm]: 156.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø25
- Focal length f [mm]: 200.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.9
- Back focal length fb [mm]: 199.5
- Curvature radius r [mm]: 184
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 26.7
- Edge thickness te [mm]: 1.8
- Center thickness tc [mm]: 9.4
- Back focal length fb [mm]: 23.3
- Curvature radius r [mm]: 23
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 31.4
- Edge thickness te [mm]: 1.8
- Center thickness tc [mm]: 8
- Back focal length fb [mm]: 28.5
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 36.3
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 7.1
- Back focal length fb [mm]: 33.8
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 41.1
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 6.4
- Back focal length fb [mm]: 38.8
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 51
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 5.5
- Back focal length fb [mm]: 49.1
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 60.9
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 4.9
- Back focal length fb [mm]: 59
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 70.8
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 4.4
- Back focal length fb [mm]: 69.1
- Curvature radius r [mm]: 64.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 80.7
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 4.1
- Back focal length fb [mm]: 79.1
- Curvature radius r [mm]: 73.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 90.7
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 3.9
- Back focal length fb [mm]: 89.2
- Curvature radius r [mm]: 82.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 100.6
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 3.7
- Back focal length fb [mm]: 99.2
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 150.5
- Edge thickness te [mm]: 1.9
- Center thickness tc [mm]: 3.1
- Back focal length fb [mm]: 149.3
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 25.4
- Focal length f [mm]: 200.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 2.9
- Back focal length fb [mm]: 199.4
- Curvature radius r [mm]: 184
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 32
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 10.9
- Back focal length fb [mm]: 28
- Curvature radius r [mm]: 27.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 36.7
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 9.4
- Back focal length fb [mm]: 33.3
- Curvature radius r [mm]: 32.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 41.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 8.4
- Back focal length fb [mm]: 38.5
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 51.2
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 7
- Back focal length fb [mm]: 48.8
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 61.1
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 6.2
- Back focal length fb [mm]: 58.9
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 71
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 5.5
- Back focal length fb [mm]: 69
- Curvature radius r [mm]: 64.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 80.9
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 5.1
- Back focal length fb [mm]: 79.1
- Curvature radius r [mm]: 73.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 90.8
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.7
- Back focal length fb [mm]: 89.2
- Curvature radius r [mm]: 82.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 100.8
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.5
- Back focal length fb [mm]: 99.2
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 120.7
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4
- Back focal length fb [mm]: 119.3
- Curvature radius r [mm]: 110.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 150.6
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.6
- Back focal length fb [mm]: 149.4
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 170.6
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.4
- Back focal length fb [mm]: 169.4
- Curvature radius r [mm]: 156.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 200.6
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.2
- Back focal length fb [mm]: 199.4
- Curvature radius r [mm]: 184
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 220.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.1
- Back focal length fb [mm]: 219.5
- Curvature radius r [mm]: 202.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø30
- Focal length f [mm]: 250.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3
- Back focal length fb [mm]: 249.5
- Curvature radius r [mm]: 230
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 42.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 13.8
- Back focal length fb [mm]: 37.5
- Curvature radius r [mm]: 36.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 52
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 11.2
- Back focal length fb [mm]: 48
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 61.7
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 9.5
- Back focal length fb [mm]: 58.3
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 71.5
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 8.4
- Back focal length fb [mm]: 68.5
- Curvature radius r [mm]: 64.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 81.3
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 7.5
- Back focal length fb [mm]: 78.7
- Curvature radius r [mm]: 73.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 91.2
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 6.9
- Back focal length fb [mm]: 88.8
- Curvature radius r [mm]: 82.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 101.1
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 6.4
- Back focal length fb [mm]: 98.9
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 121
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 5.7
- Back focal length fb [mm]: 119
- Curvature radius r [mm]: 110.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 150.8
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.9
- Back focal length fb [mm]: 149.2
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 170.8
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.6
- Back focal length fb [mm]: 169.2
- Curvature radius r [mm]: 156.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 200.7
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4.2
- Back focal length fb [mm]: 199.3
- Curvature radius r [mm]: 184
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 220.7
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 4
- Back focal length fb [mm]: 219.3
- Curvature radius r [mm]: 202.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø40
- Focal length f [mm]: 250.6
- Edge thickness te [mm]: 2
- Center thickness tc [mm]: 3.7
- Back focal length fb [mm]: 249.4
- Curvature radius r [mm]: 230
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 53.2
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 17.8
- Back focal length fb [mm]: 46.8
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 62.7
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 15
- Back focal length fb [mm]: 57.3
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 72.3
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 13.1
- Back focal length fb [mm]: 67.7
- Curvature radius r [mm]: 64.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 82.1
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 11.8
- Back focal length fb [mm]: 77.9
- Curvature radius r [mm]: 73.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 91.9
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 10.7
- Back focal length fb [mm]: 88.1
- Curvature radius r [mm]: 82.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 101.7
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 9.9
- Back focal length fb [mm]: 98.3
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 121.5
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 8.7
- Back focal length fb [mm]: 118.5
- Curvature radius r [mm]: 110.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 151.3
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 7.6
- Back focal length fb [mm]: 148.7
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 171.2
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 7
- Back focal length fb [mm]: 168.8
- Curvature radius r [mm]: 156.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 201.1
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 6.4
- Back focal length fb [mm]: 198.9
- Curvature radius r [mm]: 184
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 221
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 6.1
- Back focal length fb [mm]: 219
- Curvature radius r [mm]: 202.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 251
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 5.7
- Back focal length fb [mm]: 249
- Curvature radius r [mm]: 230
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø50
- Focal length f [mm]: 300.9
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 5.3
- Back focal length fb [mm]: 299.1
- Curvature radius r [mm]: 276
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 53.2
- Edge thickness te [mm]: 2.5
- Center thickness tc [mm]: 17.8
- Back focal length fb [mm]: 46.7
- Curvature radius r [mm]: 46
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 62.7
- Edge thickness te [mm]: 2.6
- Center thickness tc [mm]: 15
- Back focal length fb [mm]: 57.3
- Curvature radius r [mm]: 55.2
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 72.3
- Edge thickness te [mm]: 2.7
- Center thickness tc [mm]: 13.1
- Back focal length fb [mm]: 67.7
- Curvature radius r [mm]: 64.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 82.1
- Edge thickness te [mm]: 2.8
- Center thickness tc [mm]: 11.8
- Back focal length fb [mm]: 78
- Curvature radius r [mm]: 73.6
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 91.9
- Edge thickness te [mm]: 2.7
- Center thickness tc [mm]: 10.7
- Back focal length fb [mm]: 87.7
- Curvature radius r [mm]: 82.8
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 101.7
- Edge thickness te [mm]: 2.7
- Center thickness tc [mm]: 9.9
- Back focal length fb [mm]: 98.3
- Curvature radius r [mm]: 92
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 121.5
- Edge thickness te [mm]: 2.8
- Center thickness tc [mm]: 8.7
- Back focal length fb [mm]: 118.5
- Curvature radius r [mm]: 110.4
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 151.3
- Edge thickness te [mm]: 2.9
- Center thickness tc [mm]: 7.6
- Back focal length fb [mm]: 148.7
- Curvature radius r [mm]: 138
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 201.1
- Edge thickness te [mm]: 2.9
- Center thickness tc [mm]: 6.4
- Back focal length fb [mm]: 198.9
- Curvature radius r [mm]: 184
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 251
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 5.8
- Back focal length fb [mm]: 249
- Curvature radius r [mm]: 230
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
- Type: Biconvex Lenses
- Material: Synthetic fused silica
- Wavelength range of Antireflection Coating [nm]: Uncoated
- Transmission in AR range: Uncoated
- Laser Damage Threshold LIDT [J/cm²]: -
- Clear Aperture [%]: 90
- Surface Quality (Scratch-Dig): 40 - 20
- Geometrie: round
- Diameter D [mm]: Ø 50.8
- Focal length f [mm]: 300.9
- Edge thickness te [mm]: 3
- Center thickness tc [mm]: 5.3
- Back focal length fb [mm]: 298.8
- Curvature radius r [mm]: 276
- Refractive index: 1,460
- Design wavelength: 546.1 nm
- Density (g/cm³): 2.2
- Coefficinet of Thermal Expansion [x10^-6/°C]: 0.47
- Thermal Conductivity [Wm^-1K^-1]: 1.38
- Abbe Number: 67,8
Customer-specific coatings are also possible.
