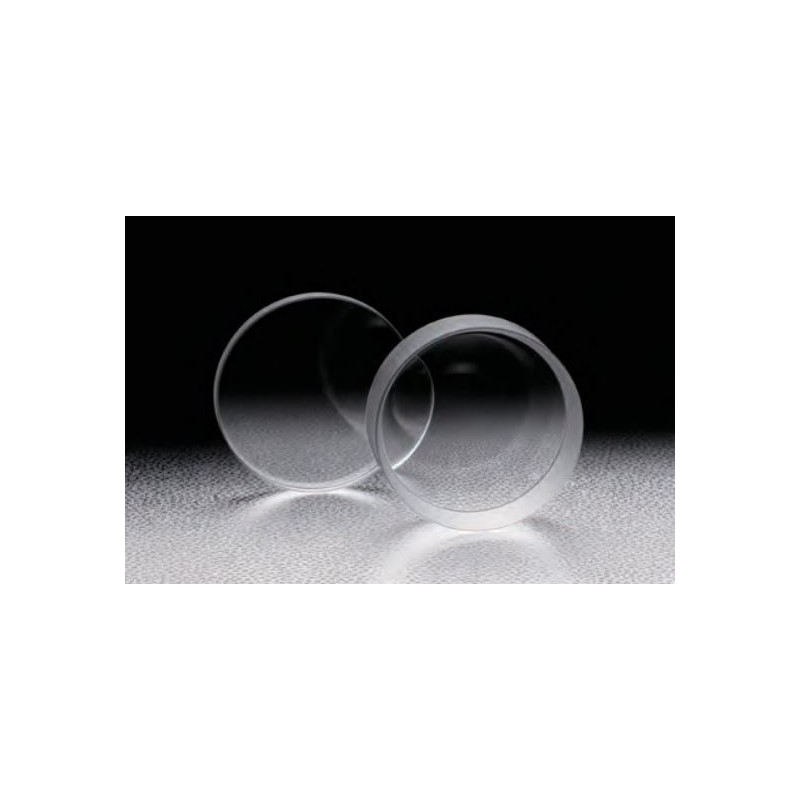

Plano Concave Lens, Uncoated, BK7

Reference number: OSE-SLB-10-15N

These simple negative lenses alone form a virtual image of a distant object or a collimated light source. In combination with other optics they reduce the power of the system.

Focal length in mm

Diameter / AxB in mm

Focal length in mm

Diameter / AxB in mm

Need more info?
Contact our expert.

Our Team

Description

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20
Shape: round
Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -15
Edge thickness te [mm]: 3.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -16.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-15N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-10-15N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -20
Edge thickness te [mm]: 3.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -21.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-20N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-10-20N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -25
Edge thickness te [mm]: 3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -26.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-25N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-10-25N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -30
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -31.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-30N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-10-30N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -40
Edge thickness te [mm]: 2.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -41.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-40N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-10-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -50
Edge thickness te [mm]: 2.5
Center thickness tc [mm]: 2
Back focal length fb [mm]: -51.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-50N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-10-50N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -60
Edge thickness te [mm]: 2.4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -61.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-60N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-10-60N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -70
Edge thickness te [mm]: 2.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -71.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-70N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-10-70N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -80
Edge thickness te [mm]: 2.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -81.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-80N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-10-80N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -90
Edge thickness te [mm]: 2.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -91.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-90N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-10-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø10
Focal length f [mm]: -100
Edge thickness te [mm]: 2.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -101.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-10-100N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-08B-25P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -20
Edge thickness te [mm]: 5.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -21.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-20N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-15-20N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -25
Edge thickness te [mm]: 4.4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -26.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-25N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-15-25N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -30
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 2
Back focal length fb [mm]: -31.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-30N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-15-30N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -40
Edge thickness te [mm]: 3.4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -41.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-40N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-15-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -50
Edge thickness te [mm]: 3.1
Center thickness tc [mm]: 2
Back focal length fb [mm]: -51.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-50N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-15-50N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -60
Edge thickness te [mm]: 2.9
Center thickness tc [mm]: 2
Back focal length fb [mm]: -61.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-60N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-15-60N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -70
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -71.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-70N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-15-70N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -80
Edge thickness te [mm]: 2.7
Center thickness tc [mm]: 2
Back focal length fb [mm]: -81.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-80N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-15-80N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø15
Focal length f [mm]: -100
Edge thickness te [mm]: 2.5
Center thickness tc [mm]: 2
Back focal length fb [mm]: -101.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-15-100N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-12.7B-70P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -25
Edge thickness te [mm]: 6.7
Center thickness tc [mm]: 2
Back focal length fb [mm]: -26.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-25N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-20-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -30
Edge thickness te [mm]: 5.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -31.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-30N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-20-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -40
Edge thickness te [mm]: 4.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -41.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-40N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-20-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -50
Edge thickness te [mm]: 4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -51.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-50N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-20-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -60
Edge thickness te [mm]: 3.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -61.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-60N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-20-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -70
Edge thickness te [mm]: 3.4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -71.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-70N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-20-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -80
Edge thickness te [mm]: 3.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -81.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-80N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-20-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -90
Edge thickness te [mm]: 3.1
Center thickness tc [mm]: 2
Back focal length fb [mm]: -91.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-90N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-20-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -100
Edge thickness te [mm]: 3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -101.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-100N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-15B-100P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -120
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -121.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-120N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-20-120N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø20
Focal length f [mm]: -150
Edge thickness te [mm]: 2.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -151.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-20-150N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-20-150N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -30
Edge thickness te [mm]: 8.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -31.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-30N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25-250P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -35
Edge thickness te [mm]: 7
Center thickness tc [mm]: 2
Back focal length fb [mm]: -36.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-35N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25-250P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -40
Edge thickness te [mm]: 6.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -41.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-40N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25-250P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -50
Edge thickness te [mm]: 5.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -51.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-50N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25-250P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -60
Edge thickness te [mm]: 4.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -61.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-60N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25-250P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -70
Edge thickness te [mm]: 4.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -71.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-70N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25-250P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -80
Edge thickness te [mm]: 3.9
Center thickness tc [mm]: 2
Back focal length fb [mm]: -81.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-80N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25-250P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -100
Edge thickness te [mm]: 3.5
Center thickness tc [mm]: 2
Back focal length fb [mm]: -101.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-100N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25.4B-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -120
Edge thickness te [mm]: 3.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -121.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-120N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25.4B-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -150
Edge thickness te [mm]: 3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -151.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-150N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25.4B-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -170
Edge thickness te [mm]: 3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -171.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-170N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25.4B-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø25
Focal length f [mm]: -200
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -201.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25-200N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25-200N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -30
Edge thickness te [mm]: 8.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -31.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-30N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25.4-30N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -40
Edge thickness te [mm]: 6.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -41.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-40N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25.4-40N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -50
Edge thickness te [mm]: 5.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -51.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-50N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25.4-50N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -60
Edge thickness te [mm]: 4.7
Center thickness tc [mm]: 2
Back focal length fb [mm]: -61.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-60N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25.4-60N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -70
Edge thickness te [mm]: 4.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -71.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-70N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25.4-70N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -80
Edge thickness te [mm]: 4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -81.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-80N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25.4-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -90
Edge thickness te [mm]: 3.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -91.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-90N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25.4-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -100
Edge thickness te [mm]: 3.6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -101.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-100N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-20B-150P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -150
Edge thickness te [mm]: 3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -151.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-150N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-20B-150P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 25.4
Focal length f [mm]: -200
Edge thickness te [mm]: 2.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -201.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-25.4-200N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-20B-150P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -35
Edge thickness te [mm]: 9.9
Center thickness tc [mm]: 2
Back focal length fb [mm]: -36.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-35N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-30-3000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -40
Edge thickness te [mm]: 8.4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -41.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-40N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-30-4000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -50
Edge thickness te [mm]: 6.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -51.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-50N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-30-5000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -60
Edge thickness te [mm]: 5.9
Center thickness tc [mm]: 2
Back focal length fb [mm]: -61.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-60N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-30-5000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -70
Edge thickness te [mm]: 5.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -71.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-70N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-30-5000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -80
Edge thickness te [mm]: 4.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -81.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-80N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-30-5000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -90
Edge thickness te [mm]: 4.5
Center thickness tc [mm]: 2
Back focal length fb [mm]: -91.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-90N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-30-5000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -100
Edge thickness te [mm]: 4.2
Center thickness tc [mm]: 2
Back focal length fb [mm]: -101.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-100N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-25B-200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -120
Edge thickness te [mm]: 3.8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -121.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-120N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-30-1200P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -150
Edge thickness te [mm]: 3.5
Center thickness tc [mm]: 2
Back focal length fb [mm]: -151.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-150N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-30-1500P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -170
Edge thickness te [mm]: 3.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -171.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-170N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-30-1500P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -200
Edge thickness te [mm]: 3.1
Center thickness tc [mm]: 2
Back focal length fb [mm]: -201.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-200N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-30-2000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -220
Edge thickness te [mm]: 3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -221.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-220N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-30-2000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø30
Focal length f [mm]: -250
Edge thickness te [mm]: 2.9
Center thickness tc [mm]: 2
Back focal length fb [mm]: -251.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-30-250N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-30-2500P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: -50
Edge thickness te [mm]: 11.4
Center thickness tc [mm]: 2
Back focal length fb [mm]: -51.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40-50N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-40-50N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: -60
Edge thickness te [mm]: 9.3
Center thickness tc [mm]: 2
Back focal length fb [mm]: -61.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40-60N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-40-60N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: -70
Edge thickness te [mm]: 8
Center thickness tc [mm]: 2
Back focal length fb [mm]: -71.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40-70N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-40-70N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: -80
Edge thickness te [mm]: 7.1
Center thickness tc [mm]: 2
Back focal length fb [mm]: -81.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40-80N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-40-80N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø40
Focal length f [mm]: -100
Edge thickness te [mm]: 6
Center thickness tc [mm]: 2
Back focal length fb [mm]: -101.3

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-40-100N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-30B-250P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -70
Edge thickness te [mm]: 13
Center thickness tc [mm]: 3
Back focal length fb [mm]: -72

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-70N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-50-5000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -80
Edge thickness te [mm]: 11.4
Center thickness tc [mm]: 3
Back focal length fb [mm]: -82

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-80N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-50-5000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -90
Edge thickness te [mm]: 10.3
Center thickness tc [mm]: 3
Back focal length fb [mm]: -92

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-90N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-50-5000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -100
Edge thickness te [mm]: 9.4
Center thickness tc [mm]: 3
Back focal length fb [mm]: -102

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-100N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-50.8B-300P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -120
Edge thickness te [mm]: 8.2
Center thickness tc [mm]: 3
Back focal length fb [mm]: -122

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-120N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-50.8B-300P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -150
Edge thickness te [mm]: 7.1
Center thickness tc [mm]: 3
Back focal length fb [mm]: -152

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-150N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-50-150N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -170
Edge thickness te [mm]: 6.6
Center thickness tc [mm]: 3
Back focal length fb [mm]: -172

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-170N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-50-170N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -200
Edge thickness te [mm]: 6.1
Center thickness tc [mm]: 3
Back focal length fb [mm]: -202

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-200N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-50-200N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -220
Edge thickness te [mm]: 5.8
Center thickness tc [mm]: 3
Back focal length fb [mm]: -222

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-220N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-50-220N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -250
Edge thickness te [mm]: 5.4
Center thickness tc [mm]: 3
Back focal length fb [mm]: -252

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-250N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-50-250N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø50
Focal length f [mm]: -300
Edge thickness te [mm]: 5
Center thickness tc [mm]: 3
Back focal length fb [mm]: -302

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50-300N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-50-300N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -70
Edge thickness te [mm]: 13.4
Center thickness tc [mm]: 3
Back focal length fb [mm]: -72

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-70N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-50.8-70N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -80
Edge thickness te [mm]: 11.7
Center thickness tc [mm]: 3
Back focal length fb [mm]: -82

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-80N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-50.8-80N.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -90
Edge thickness te [mm]: 10.5
Center thickness tc [mm]: 3
Back focal length fb [mm]: -92

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-90N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-50.8-1000P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -100
Edge thickness te [mm]: 9.6
Center thickness tc [mm]: 3
Back focal length fb [mm]: -102

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-100N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-40B-250P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -150
Edge thickness te [mm]: 7.3
Center thickness tc [mm]: 3
Back focal length fb [mm]: -152

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-150N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-40B-250P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -200
Edge thickness te [mm]: 6.2
Center thickness tc [mm]: 3
Back focal length fb [mm]: -202

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-200N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-40B-250P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -250
Edge thickness te [mm]: 5.5
Center thickness tc [mm]: 3
Back focal length fb [mm]: -252

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-250N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-40B-250P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls

Type: Plano Concave Lenses
Material: BK7
Wavelength range of Antireflection Coating [nm]: Uncoated
Transmission in AR range: Uncoated
Laser Damage Threshold LIDT [J/cm²]: -
Clear Aperture [%]: 90
Surface Quality (Scratch-Dig): 40 - 20

Geometrie: round
Diameter D [mm]: Ø 50.8
Focal length f [mm]: -300
Edge thickness te [mm]: 5.1
Center thickness tc [mm]: 3
Back focal length fb [mm]: -302

Refractive index: 1.519
Design wavelength: 546.1 nm
Density (g/cm³): 2.52
Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
Thermal Conductivity [Wm^-1K^-1]: 1.13
Abbe Number: 64,1

Customer-specific coatings are also possible.

Downloads

OSE-SLB-50.8-300N_STP.zip

OSE-SLB-N_SLSQ-N_SLSQK-N.pdf

OSE-SLB-40B-250P.ZMX

Opt_Lenses_.zip

AR_Simulation__M_IR1_IR2_.xls
