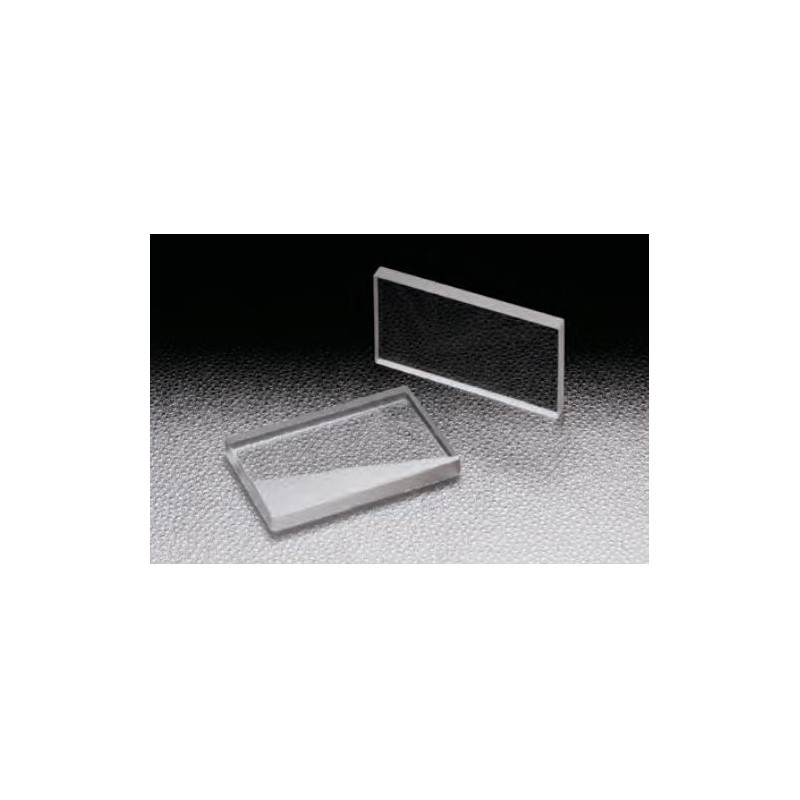

Plano Convex Cylindrical Lens, AR [nm]: 750 - 1550, BK7

search

Reference number: OSE-CLB-1010-15PIR2

The cylindrical plano-convex lens has a convex curvature in vertical direction and no curvature in horizontal direction. They are often used to condense a laser beam into a thin line.

Focal length in mm
Diameter / AxB in mm
alt

Need more info?
Contact our expert.

Our Team

Description

  • Type: Plano Convex Cylindrical Lenses
  • Material: BK7
  • Wavelength range of Antireflection Coating [nm]: 750 - 1550
  • Transmission in AR range: 98,5%
  • Laser Damage Threshold LIDT [J/cm²]: 4
  • Clear Aperture [%]: 90
  • Surface Quality (Scratch-Dig): 40 - 20
  • Shape: rectangular
  • Refractive index: 1.519
  • Design wavelength: 546.1 nm
  • Density (g/cm³): 2.52
  • Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
  • Thermal Conductivity [Wm^-1K^-1]: 1.13
  • Abbe Number: 64,1

Customer-specific coatings are also possible.
