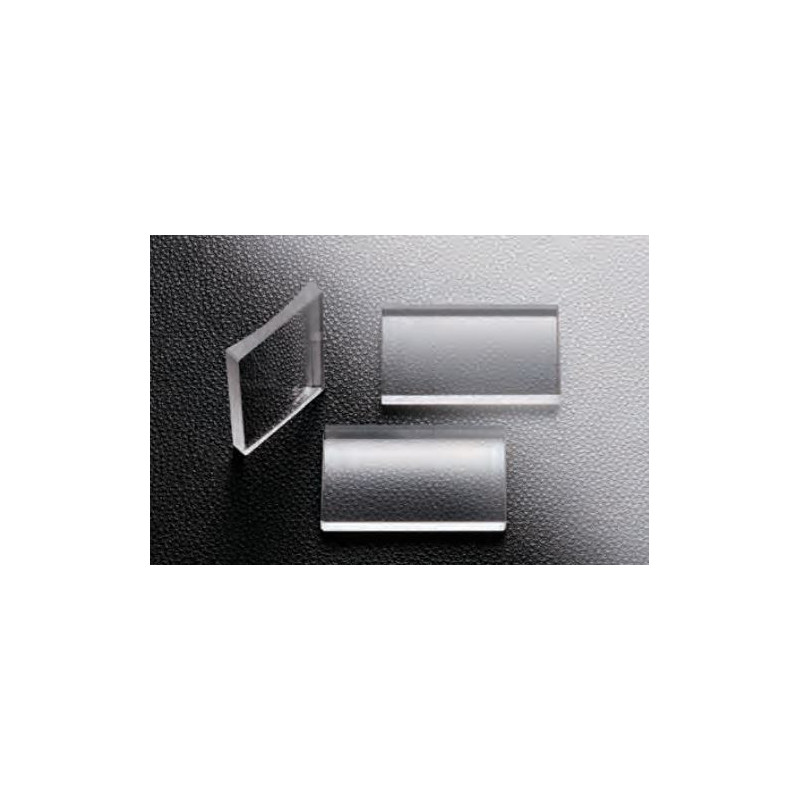

Plano Concave Cylindrical Lens, AR [nm]: 750 - 1550, BK7

search

Reference number: OSE-CLB-1010-15NIR2

The cylindrical plano-concave lens has a concave curvature in vertical direction and no curvature in horizontal direction. In combination with a plano-convex cylindrical lens, an elliptically shaped beam can be formed into a circular beam for use in semiconductor and other laser applications.

Focal length in mm
Diameter / AxB in mm
alt

Need more info?
Contact our expert.

Our Team

Description

  • Type: Plano Concave Cylindrical Lenses
  • Material: BK7
  • Wavelength range of Antireflection Coating [nm]: 750 - 1550
  • Transmission in AR range: 98,5%
  • Laser Damage Threshold LIDT [J/cm²]: 4
  • Clear Aperture [%]: 90
  • Surface Quality (Scratch-Dig): 40 - 20
  • Refractive index: 1.519
  • Design wavelength: 546.1 nm
  • Density (g/cm³): 2.52
  • Coefficinet of Thermal Expansion [x10^-6/°C]: 7.2
  • Thermal Conductivity [Wm^-1K^-1]: 1.13
  • Abbe Number: 64,1

Customer-specific coatings are also possible.
