ESUS Series
Reference number: FYB-ESUS
High performing building block to boost your laser performances.
Need more info?
Contact our expert.
Our Team
Description

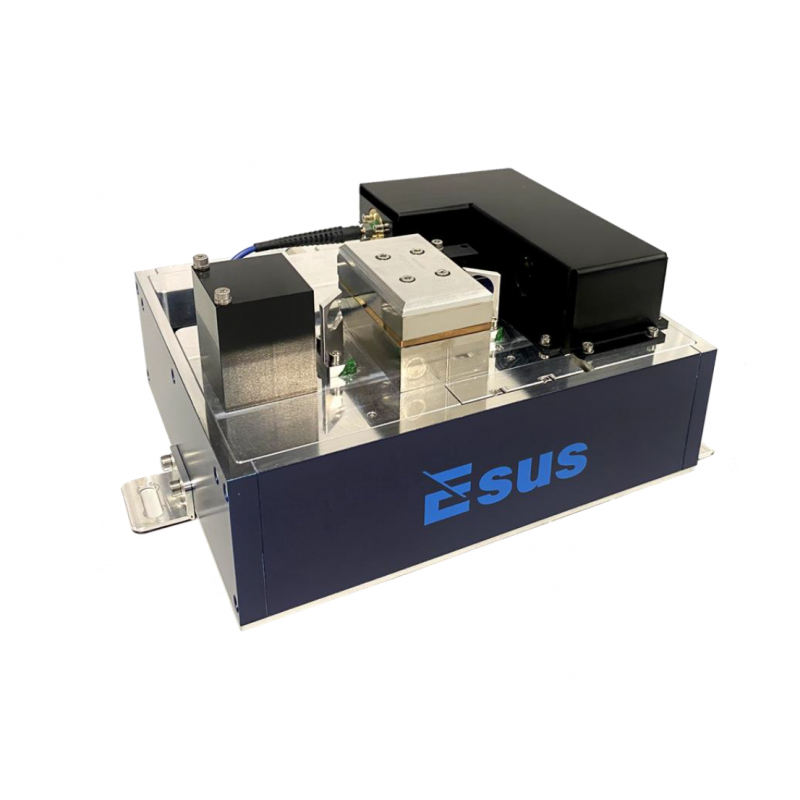

The compact Esus product provides high quality amplified beam up to 500W for a wide range of input seed power, in continuous or pulsed regime.
Esus Series are easy-to-integrate amplifiers, equipped with an optically pre-set 190W pump laser diode and our TARANIS versatile technology.
TARANIS amplifier is based on our unique patented Single Crystal Fiber technology.
This unique architecture provides high pulse energy and flexible repetition rate as well as excellent reliability and unsurpassed beam quality, all in a compact packaging.
Specifications :
Input
Regime : Continuous or pulsed
Wavelength : 1030 +/- 2nm
Power* : from 100mW to 500W
*Input coupling to be set accordingly
** Continuous mode, pump 969nm - 110W - 100um
Characteristics :
Damage Threshold : 10J/cm² at 1ns pulse duration
Beam Height (Input & Output) : 94.8mm
Achievable Ellipticity : >0.95
Operating Current : 15A
Operating Voltage : 30V
Pump power : 190W
