Reference number: CHY-C-920

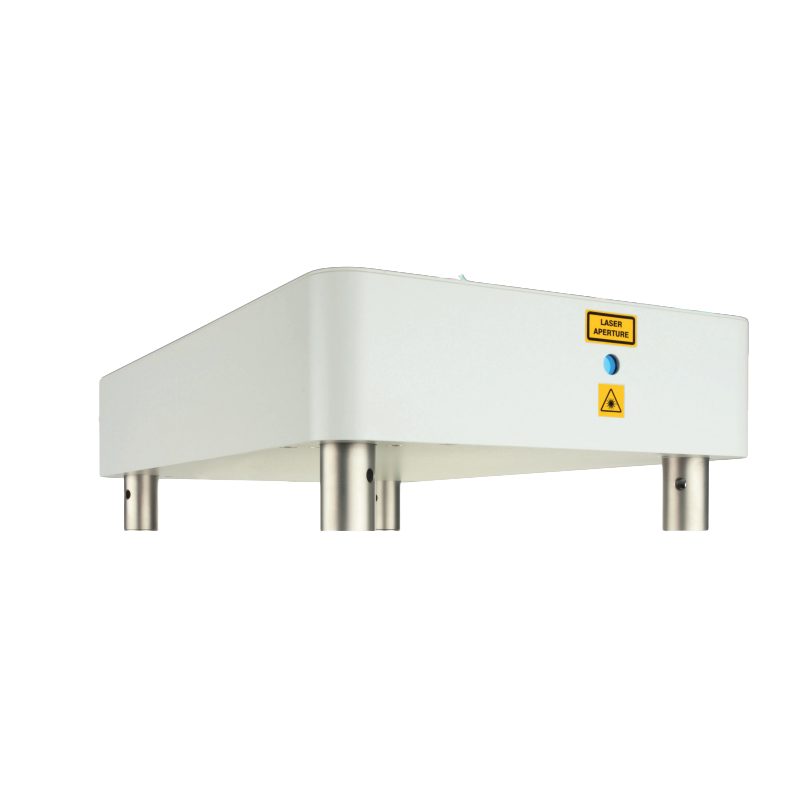

This exciting new 920 nm femtosecond laser is the next generation of fiber-based technology which is enhancing multiphoton imaging with higher resolution and faster acquisition at significant depth.
Need more info?
Contact our expert.
Our Team
Description
Applications :
Multiphoton microscopy
Second Harmonic Generation (SHG) microscopy
Light sheet microscopy
Time-resolved photoluminescence spectroscopy
FLIM
THz generation
Optogenetics
Pump source for nonlinear optics
Technical Data
Specifications
Output power 1.1 W
Wavelength 920 nm
Pulse duration < 180 fs
Pulse energy 12.5 – 20 nJ (Depending on repetition frequency)
Pulse repetition frequency 80 MHz (Configurable at the point of manufacture)
Control interface Web browser interface. Ethernet & serial port (RS232) also available.
Cooling Air-cooled
Dimensions
Length 355 mm
Width 180 mm
Height 118 mm
Power Supply
19” 2U rack mount unit
Temporal and Spacial Profiles
Typical temporal profile of pulse
TEM00 beam ideal for coupling into a range of microscopes
