Reference number: L2S-FL

High Power Line Laser - TEC High Power Direct Semiconductor pattern generator provides high reliability with superior beam shaping for high signal to noise industrial applications.

alt

Need more info?
Contact our expert.

Our Team

Description

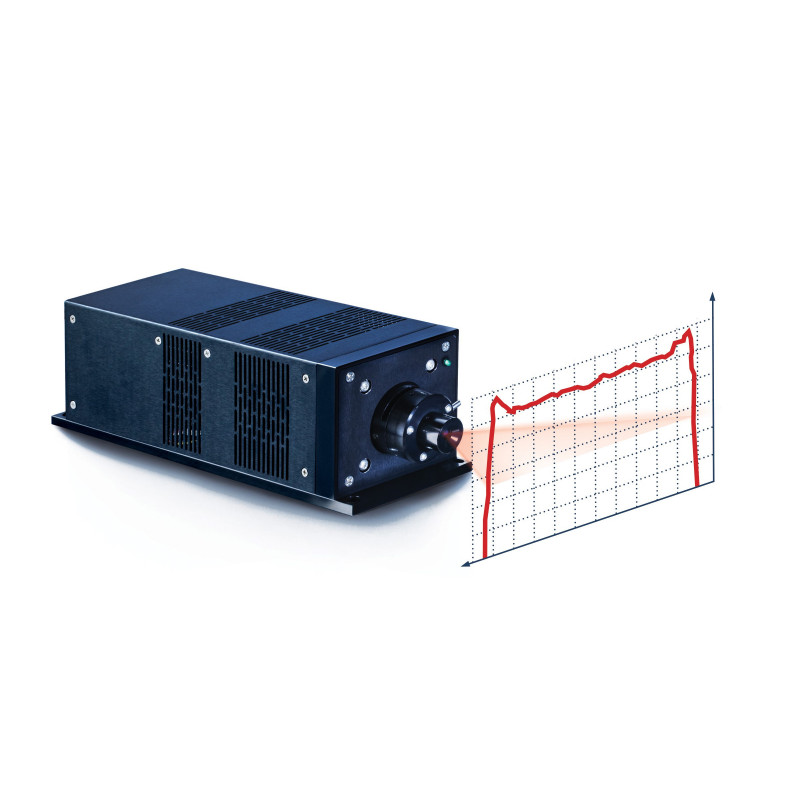

High Power Line Laser - Fireline Laser - fromOsela

The high power line laser provides high reliability with superior beam shaping for high signal to noise industrial applications.



The high power line laser Fireline is free focusable externally without removing any optics.

Features of the High Power Line Laser


  • High Power, up to 15 Watt
  • Superior beam shaping
  • Externally focusable
  • High Pointing and focus stability
  • Integrated monitoring and modulation features

Applications of the High Power Line Laser


  • 3D Machine Vision
  • Outdoor Industrial Inspection
  • Rail and Road Inspection

Specifications of the High Power Line Laser

Bore sight (mrad)

< 3 mrad

Wavelength Drift

˜ 0.1 nm over entire operating temperature

Pointing Stability

< 6 µrad/°C

 Modulation Rise/Fall time

< 10µ sec, 100% modulation depth (10 Kohm input impedance)

Protections (Built in)

ESD, Over voltage (up to 30 VDC), Over-temp Shutoff (> 50 deg C)

Long term Power stability (8 hours)

< 3 %, 2 minute warm up time

Operating Voltage

 12V DC

Working Temp Range

-10 to to +50 °C

Weight

< 1.8 kg

Power Supply Cable

18 inches 3 conductors Alpha wire 5610B2001, with flying leads

ESD Protection L

 Level 4
