Reference number: UNV-P1005-xxx
Laser safety goggles according to EN 207 and laser adjustment goggles according to EN 208 with polycarbonate filter and a daylight transmission of 42-45 %.
Need more info?
Contact our expert.
Our Team
Description
Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).
UNV-P1005-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207, Laser Adjustment Goggle according to DIN EN 208
Filter material: Polycarbonate
Filter color: Green*
Daylight transmission: 42-45 %
(*the picture shows one filter color as an example only)
Optical density:
See filter curve in the picture gallery
Protection values:
Frames -561, -562, -559G:
190-315 D LB5 + IR LB3
>315-430 DIR LB5
750-1100 DIR LB3
775-1100 DIR LB4
790-1090 DIR LB5
920-1075 DIR LB6 + M LB6Y
1000-1070 DR LB6 + I LB7 + M LB7Y
1030-1065 nm D LB6 + IR LB8 M LB7Y
10600 DI LB4
Frame -546:
745-1115 DIR LB3
770-1100 DIR LB4
785-1085 DIR LB5
800-825 DIR LB6
885-1075 DIR LB6
1000-1070 D LB6 + IR LB7 + M LB7Y
1030-1065 D LB6 + IR LB8 + M LB7Y
0,01 W 2x10^-6 J 660-700 RB1
Frame -5X7:
715-1120 DIR LB3
730-1115 DIR LB4
745-1110 DIR LB5
770-1090 DIR LB6
1000-1070 D LB6 + IR LB7 + M LB7Y
1030-1065 D LB6 + IR LB8 + M LB7Y
9000-11000 DI LB3
0,01 W 2x10^-6 J 660-675 RB1
0,1 W 2x10^-5 J 675-690 RB2
Frame -546:
- Wraparound shape for outstanding protection
- Extremely lightweight
- Anti-slip soft rubber nose pad
- Perfect-fit temple tips reduce the lateral pressure

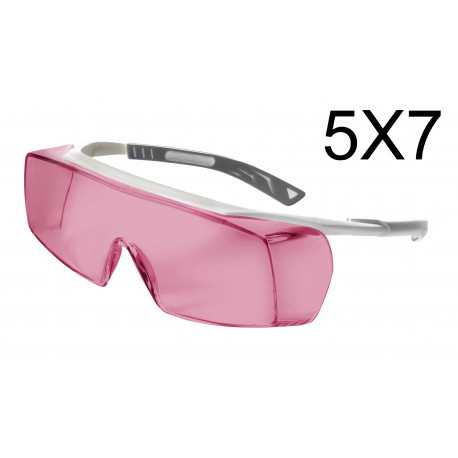

Frame -5X7:
- Developed to be worn over every prescription glasses without losing in comfort
- Ultra-light frame (42 g)
- Wide vision single-lens absorbing filters made of polycarbonate
- Equipped with patented Softpad technology
- Adjustable temples
Frame -561:
- Smart design
- Soft hypoallergenic nose pad
- Adjustable temples
- Ergonomic wraparound temples fit perfectly on user face
Frame -562:
- Adjustable temples
- Ergonomic wraparound temples fit perfectly on user face
- Universal overspec on every prescription glasses
Frame -559G:
- High power laser protection
- High protection 2 mm aluminum shield
- Adjustable elastic band improves the stability
- Internal soft rubber eliminates local pressure
- Can be worn over prescription glasses
Downloads
Laser safety goggles according to EN 207 and laser adjustment goggles according to EN 208 with polycarbonate filter and a daylight transmission of 42-45 %.
