Lensplate for BeamMap2 and BeamR2
Reference number: DAT-BMR-LP
This adapter plate is also available for the Beam Profiler BeamMap and BeamR 1st generation.
Reference number: DAT-BMR-LP
This adapter plate is also available for the Beam Profiler BeamMap and BeamR 1st generation.
Need more info?
Contact our expert.
Our Team
Description

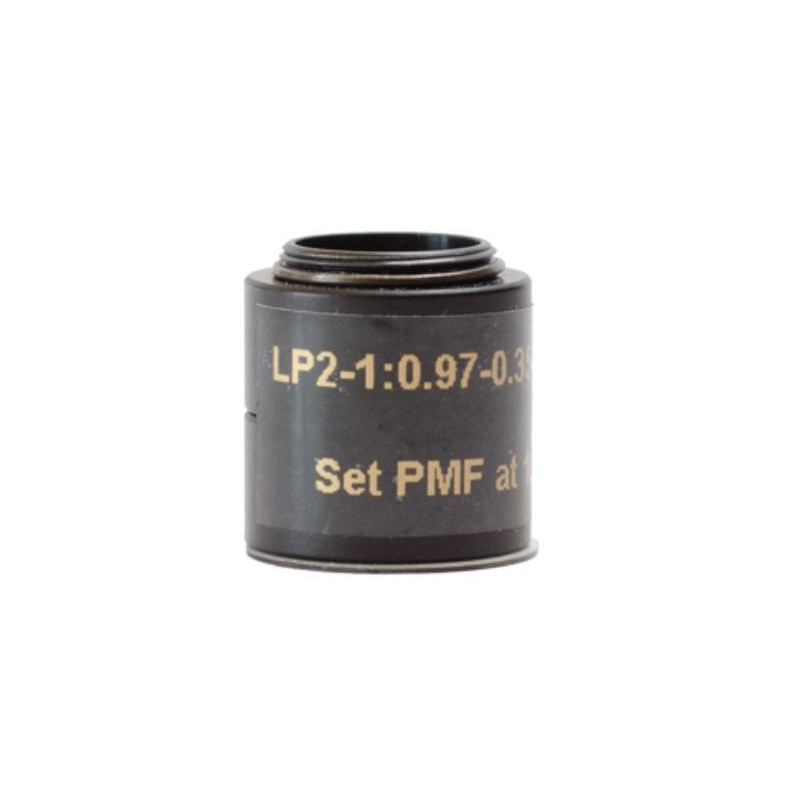

The Lensplate allows the user an almost direct connection to the detector of Beam-Map2 and Beam-R2
Please chose between folowing parameters:
Wavelenght:
+ 850 = corrected from 600 nm to 1050 nm
+ 1550 = corrected from 1050 nm to 1750 nm
Working-distance and Numerical Aperture:
+ LP-1:1-0.65:
Input NA : 0,65
Angle: 81°
Workingdistance 1,56 mm
Resolution: 0,63 µm @675 nm /1,45 µm @1550nm
Magnification : 1:1
for small beams and fiber ends
+ LP-1:4.9
Input NA : 0,68
Angle: 85,6°
Workingdistance 1,75 mm
Resolution : 0,61 µm @675 nm /1,40 µm @1550nm
Magnification : 1:4,9
for waveguides and lensed fibers
also available for Beam-Map and Beam-R Gen1
