Polarization Preserving Beam Sampler

Lensplate for BeamMap2 and BeamR2
search
  • Lensplate for BeamMap2 and BeamR2

Reference number: DAT-PPBS-xx

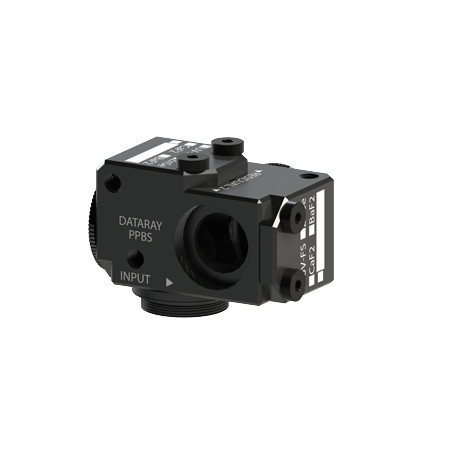

The Polarization Preserving Beam Sampler (PPBS) uses a dual wedge design to sample a small percentage of a beam’s power for laser beam profiling applications.

alt

Need more info?
Contact our expert.

Our Team

Description

Polarization Preserving Beam Sampler

With the PPBS from DataRay Laser with high power density can be attenuated to prevent sensor saturation and sensor damage.

Options:

  • BaF2: 200 nm - 11 µm (100 J/cm² @ 2940 nm, >10.36 J/cm² @ 10600 nm)
  • CaF2: 200 nm - 8 µm (70 J/cm² @ 2940 nm)
  • UV-FS: 190 nm - 2200 nm (30 J/cm² @ 532 nm, >350 W/mm @ 1064 nm CW)
  • ZnSe: 600 nm - 16 µm (500 J/cm² @ 2940 nm, 6 J/cm² @ 10600 nm)
