Hyperspectral Imaging System - Outdoor Field

Outdoor Hyperspectral Imaging System
search
  • Outdoor Hyperspectral Imaging System
  • Outdoor Hyperspectral Imaging System - Components

Reference number: RES-KIT-Outdoor

Resonon's complete hyperspectral imaging systems for laboratory and outdoor applications. Hyperstpectral imaging camera, tripod with laptop tray, rotational scanning stage and software are included.

alt

Need more info?
Contact our expert.

Our Team

Description

Hyperspectral imaging systems are fully integrated plug-and-play solutions, with all hardware and software necessary to acquire and analyze hyperspectral data.

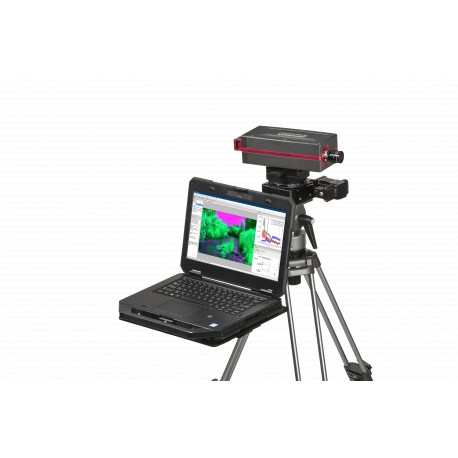

Outdoor Field System

Tripod mounted scanning system

System Components:

  • Hyperspectral imaging camer
  • Rotational scanning stage
  • Tripod with tray for laptop computer
  • Power supply
  • Data acquisition computer with software
  • Travel case

Hyperspectral Camera Options

Hyperspectral Imaging systems can be fitted with the following hyperspectral imaging cameras:

Pika L Pika XC2 Pika NIR-320 Pika NIR-640 Pika NUV
Spectral Range (nm) 400 – 1000 400 – 1000 900 – 1700 900 – 1700 350 – 800
Spectral Resolution (nm) 2.1 1.3 4.9 2.5 2.3
Spectral Channels 281 447 164 328 196
Spatial Channels 900 1600 320 640 1600
Max Frame Rate (fps) 249 165 520 249 165
Bit Depth 12 12 14 14 12
